Mezzanine Side Board Options

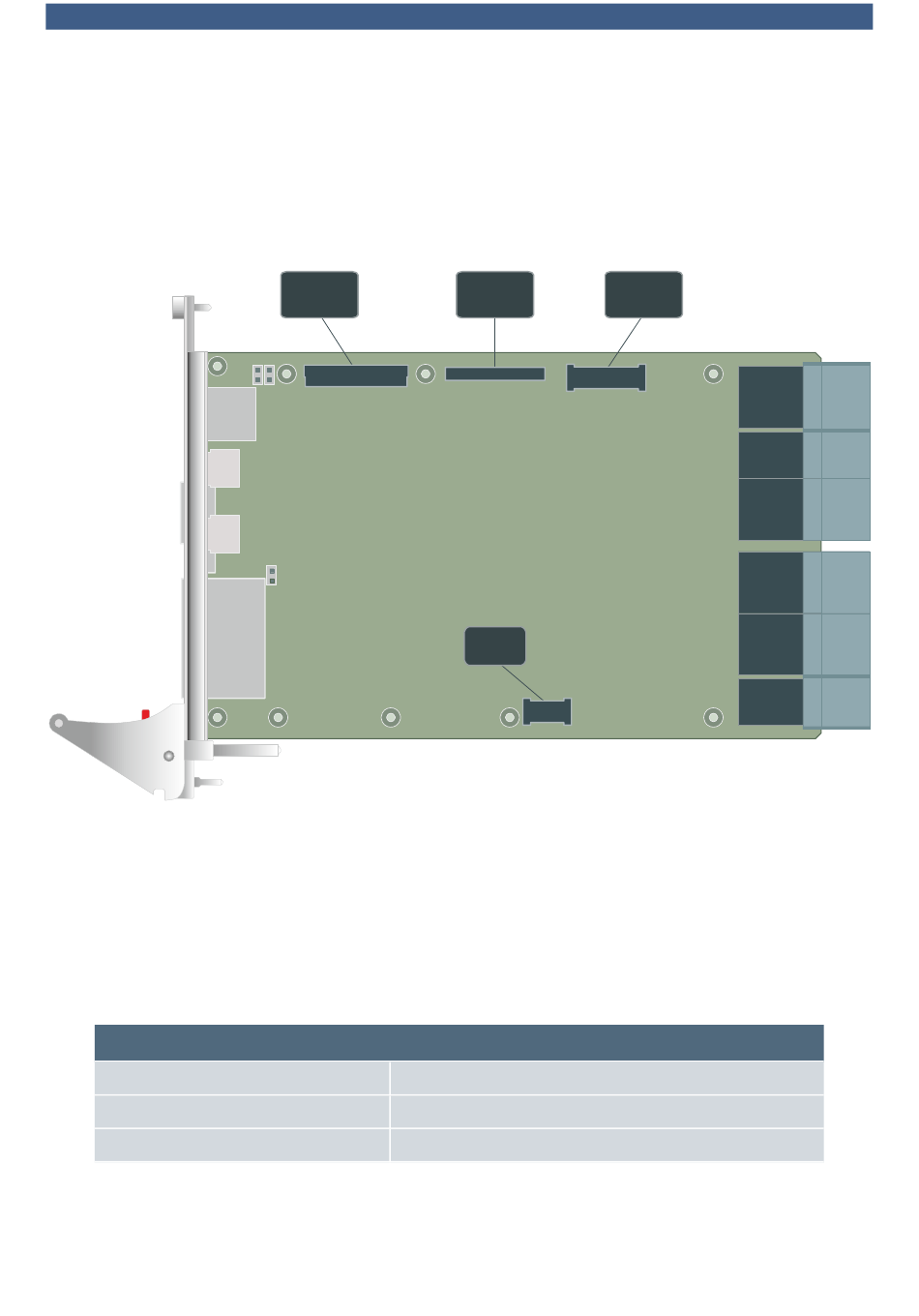

The SC1-ALLEGRO is provided with several stacking connectors for attachment of a mezzanine
expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please
refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore
offers custom specific development of side boads (please contact sales@ekf.de).
2 x
USB
3.0
DP
VGA
DP
Dual
GbE
Most mezzanine expansion modules require an assembly height of 8HP in total, together with the
CPU carrier board (resulting from two cards at 4HP pitch each).
In addition, cropped low profile mass storage mezzanine modules can be attached to J-HSE, which
maintain the 4HP envelope, for extremely compact systems. Furthermore these small size modules
may be combined with the full-size expansion boards (that means an assembly comprised of 3 PCBs).
C4x Series Mezzanine Storage Modules
Mezzanine Modules Overview
The EKF Mezzanine Module Concept
© EKF
CompactPCI
2 x SATA 6G
1 x SATA 3G
4 x USB
HSE
1
Mezzanine
Expansion
2
Options
SC1-ALLEGRO
Related Documents Mezzanine Modules and Side Cards
® Serial
CPU Board • Intel® i7-3xxx Processor
LPC USB
SMBus
HD Audio
EXP
SC1-ALLEGRO
Intel® Ivy Bridge
Core™ i7 CPU
© EKF • ekf.com
Video
Flat-
DP/DVI
Panel
SDVO/DP
• CompactPCI® Serial • © EKF • ekf.com
www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf
www.ekf.com/c/ccpu/mezz_ovw.pdf
www.ekf.com/c/ccpu/cpci_mezzanine_evolution.pdf
-28-
PCI Express®
x 4
PCIE
P6
P5
P4
P3
P2
P1
