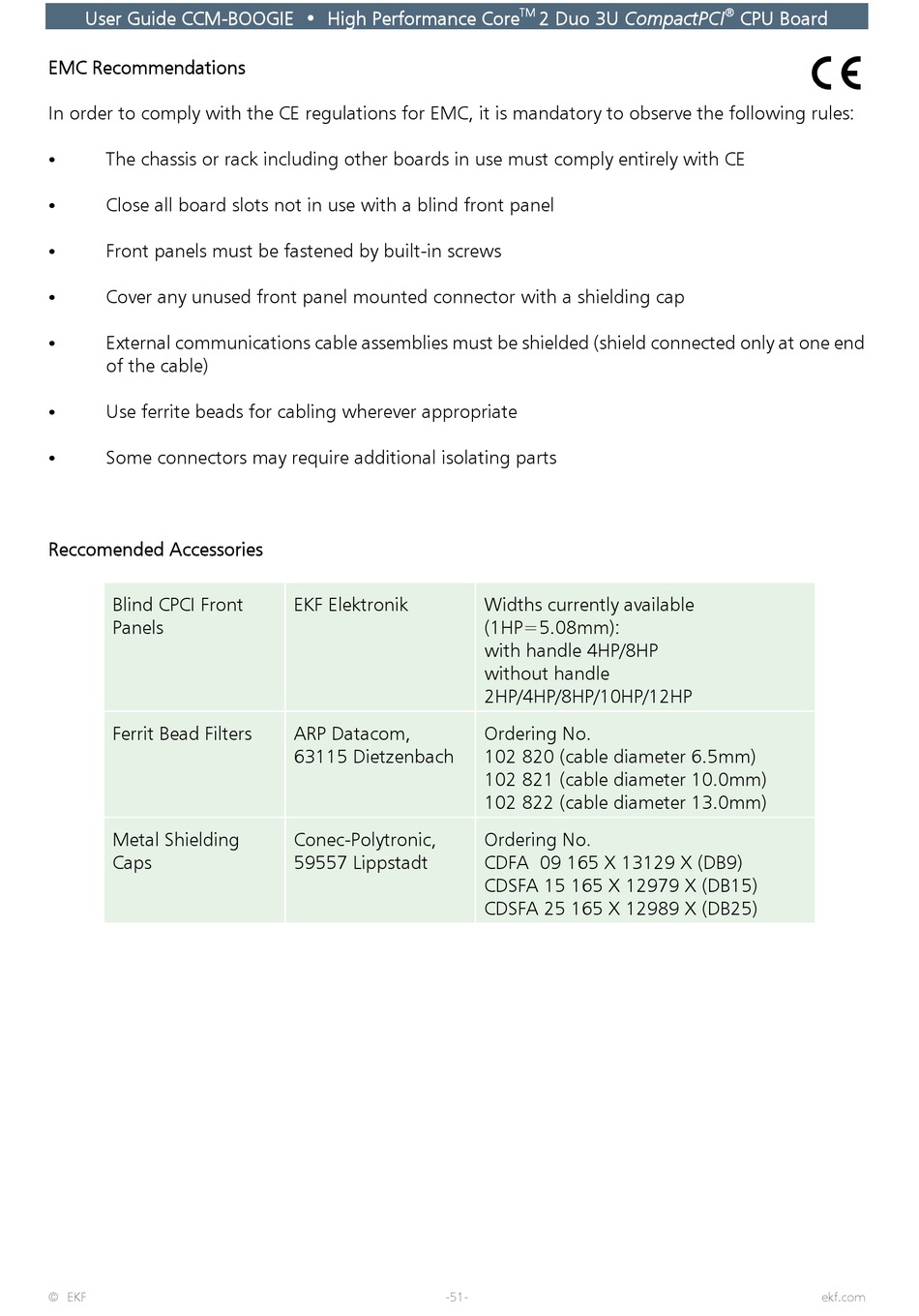

EMC Recommendations
In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules:
The chassis or rack including other boards in use must comply entirely with CE
C
Close all board slots not in use with a blind front panel
C
Front panels must be fastened by built-in screws
C
Cover any unused front panel mounted connector with a shielding cap
C
External communications cable assemblies must be shielded (shield connected only at one end
C
of the cable)
Use ferrite beads for cabling wherever appropriate
C
Some connectors may require additional isolating parts
C
Reccomended Accessories
Blind CPCI Front
Panels
Ferrit Bead Filters
Metal Shielding
Caps
© EKF
EKF Elektronik
ARP Datacom,
63115 Dietzenbach
Conec-Polytronic,
59557 Lippstadt
-51-
TM
2 Duo 3U CompactPCI
Widths currently available
(1HP=5.08mm):
with handle 4HP/8HP
without handle
2HP/4HP/8HP/10HP/12HP
Ordering No.
102 820 (cable diameter 6.5mm)
102 821 (cable diameter 10.0mm)
102 822 (cable diameter 13.0mm)
Ordering No.
CDFA 09 165 X 13129 X (DB9)
CDSFA 15 165 X 12979 X (DB15)
CDSFA 25 165 X 12989 X (DB25)
®
