Technical Information

C23-SATA

Mezzanine I/O Expansion Board

PCIe to SATA RAID Controller

Document No. 5208 • Ed. 2 • 2009-03

Table of Contents

Need help?

Do you have a question about the C23-SATA and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF C23-SATA

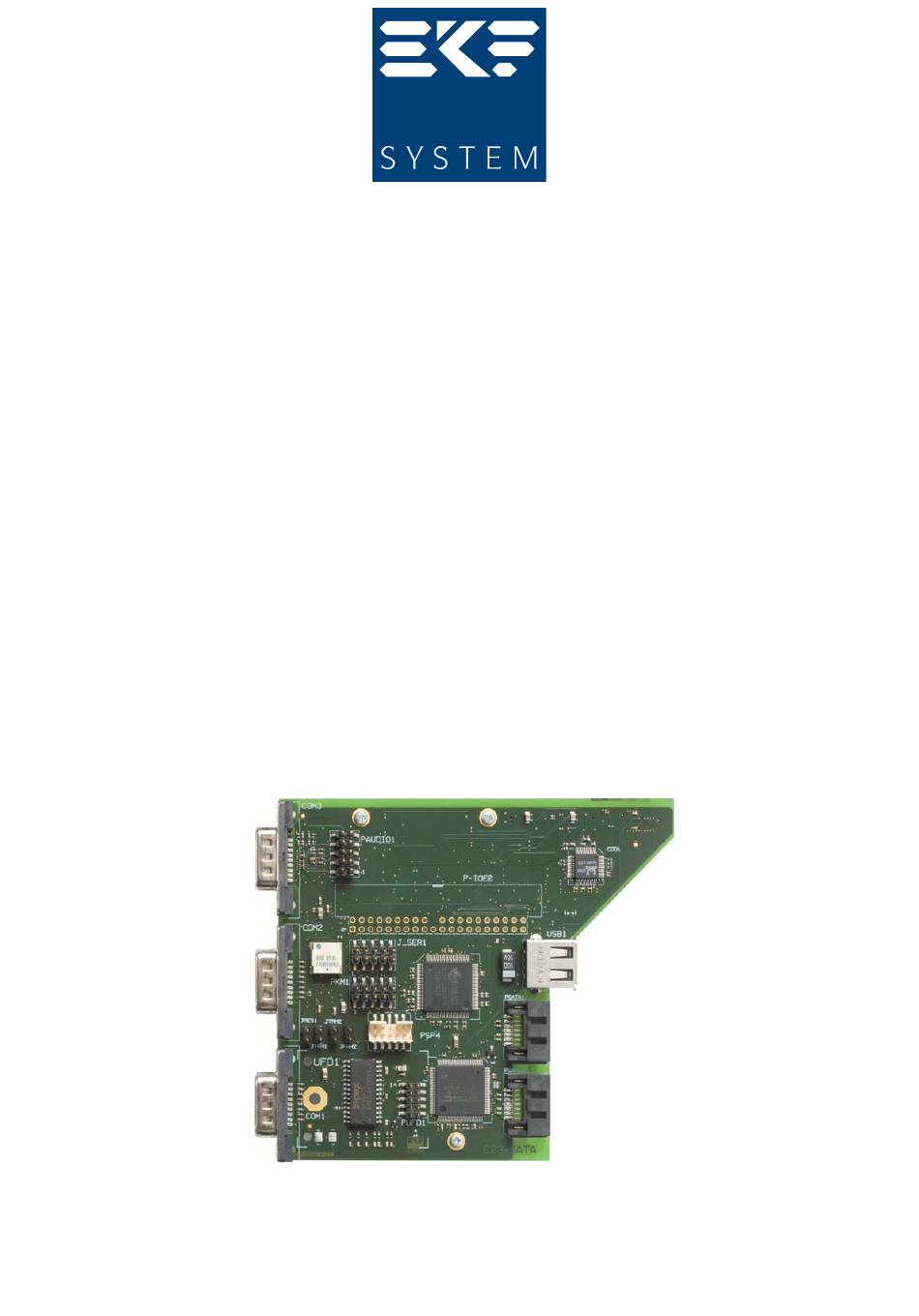

Page 1 Technical Information C23-SATA Mezzanine I/O Expansion Board PCIe to SATA RAID Controller Document No. 5208 • Ed. 2 • 2009-03...
Page 2: Table Of Contents
Top View Component Assembly C23-SATA ........14...
Page 3 Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Additional Functions ............42 Firmware Hub 2 .
Page 4: About This Manual
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card About this Manual This manual is a short form description of the technical aspects of the C23-SATA, required for installation and system integration. It is intended for the advanced user only.
Page 5: Related Documents
This manual has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. © EKF...
Page 6: Standards
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Standards Specifications/Standards PCI Express PCIe Base Spec. 1.1 and other (PCI SIG www.pcisig.com) SATA Serial ATA 2.5/2.6 Specification (www.sata-io.org) Universal Serial Bus Revision 2.0 specification (www.usb.org/developers) Trusted Platform Module 1.2 (https://www.trustedcomputinggroup.org)
Page 7: C23-Sata Features
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card C23-SATA Features Feature Summary Feature Summary Form Factor Single size cropped Eurocard (112x100mm ), needs 4HP (20.3mm) mounting space in addition to CPU carrier board, typically delivered as a ready to use assembly unit (including...
Page 8 < 2002/95/EC (RoHS) MTBF Not all of these connectors may be present or functional on your actual C23-SATA board. Assembly of these connectors is highly custom specific. Discuss your needs with EKF before ordering. Requires CPU carrier board with AC'97 audio support. Contact EKF for an Azalia HD Audio compliant variant of the C23-SATA.
Page 9: Short Description
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Short Description Available as a mezzanine add-on expansion The C23-SATA will be attached on top of the board to the CCD-CALYPSO, CCG-RUMBA and CPU carrier board, and typically shares its front...
Page 10 Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card The C23-SATA communicates by means of two If audio support is required on the C23-SATA, bottom mount expansion connectors with the either an AC'97 audio codec (CCD-CALYPSO), host CPU: P-PCIE (PCI Express x 1), and P-EXP...
Page 11: Front Panel
• ekf.com Typically the carrier board CPU and the C23-SATA share a common 3U/8HP front panel. There may be reasons for further widening of the front panel (e.g. 12HP width); this would provide additional space e.g. for another serial port connector (CU-series module). Please discuss your needs for an individual solution with EKF.
Page 12: Block Diagram C23-Sata
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Block Diagram C23-SATA Option External RAID 0/1/0+1 SATA Drive(s) CCD- SATA CALYPSO SATA II PCIe PATA 3Gbps CCG- Controller RUMBA Molex Latched Headers JMicron R/A or Vertical JMB363 Simplified Block Diagram...
Page 14: Top View Component Assembly C23-Sata
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Top View Component Assembly C23-SATA LPC/USB/AUDIO PCIe x 1 CODEC P-IDE J-SER PCIe P-KM SATA C23-SATA P-SP4 Mezzanine Option USB Flash Disk draft only - do not scale • © EKF • ekf.com...
Page 16: Front Panel Connectors
A-Type USB receptacle Due to a primary SIO which may be present on the CPU board itself, the BIOS may assign COM port numbers different from COM1 to COM4 to these interface lines on the C23-SATA, e.g. COM2 to COM5 Please note: Not all of the connectors or other elements listed above may be present or functional on your actual C23-SATA board.
Page 17: Jumpers
J-SER Jumper array, determines behaviour of COM-A (RS-232 or RS-485) Not all of these jumpers may be present or functional on your actual C23-SATA board. Assembly of these jumpers is highly custom specific. Discuss your needs with EKF before ordering.
Page 18: Installing And Replacing Components
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Installing and Replacing Components Before You Begin Warnings The procedures in this chapter assume familiarity with the general terminology associated with industrial electronics and with safety practices and regulatory compliance required for using and modifying electronic equipment.
Page 19: Installing The Board
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Installing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 20: Removing The Board
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Removing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 21: Emc Recommendations
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE...
Page 22: Technical Reference - Connectors
Please Note The C23-SATA mezzanine module may be equipped with several on-board connectors for system internal usage. Not all of these connectors may be present on a particular board. Be sure to specify your individual needs when ordering the C23-SATA board. Characteristic features and the pin...
Page 23: Front Panel Connectors
CCD-CALYPSO, CCG-RUMBA and the CCM-BOOGIE. The C23-SATA side board mounts on top (at the right side) of the carrier card. By default, the C23-SATA shares an 8HP (~40.6mm) front panel with the CPU carrier board. Furthermore, custom specific front panel options are available on request.
Page 24: Com-A (Rs-232/Rs-485)
The C23-SATA is equipped with three serial transceivers. This is a short description of TR1 (COM port A), which corresponds to the lower front panel D-Sub 9 connector. The transceiver is a Sipex/EXAR SP334 and can be operated in either TIA/EIA-232 mode (AKA RS-232), or in TIA/EIA-485 mode (AKA RS-485).
Page 25 Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card For selection of the TR1 operating mode, a five position dual row pin header is provided, named J-SER. A single jumper selects between the following transfer characteristics: J-SER 240.2.04 © EKF ekf.com...
Page 26: Com-B Com-C (Rs-232)
CTS2 (3) DTR2 (3) RI2 (3) The C23-SATA is equipped with two ADM211 serial transceivers, assigned to COM-B and COM-C. As an option however, the front panel position for COM-C may be occupied by the audio connector. © EKF -26-...
Page 27: Audio Connector
S/PDIF IN D-GND The C23-SATA can be equipped with either an AC'97 audio codec (Realtek ALC203) for analog and digital audio support, or HD Audio codec (ALC262) at the users choice, matching the particular CPU carrier board in use. Both AC'97 or HD Audio data stream is derived from the ICH (southbridge) on the CPU carrier board.
Page 28: On-Board Connectors
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card On-Board Connectors The C23-SATA can be equipped with several on-board connectors. Some of these connectors are available as an option only or exclusive to each other, and therefore may not be functional or even present on your actual board.
Page 29: P-Audio
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card P-AUDIO As an option, the C23-SATA can be equipped with a pin header for system internal audio I/O. P-AUDIO corresponds to the optional on-board AC'97 Audio Codec. P-AUDIO SMT 2.54mm Pin Header 2 x 5 (241.1.0205.20.00)
Page 30: P-Ide
2 mass storage devices via flat cable harness, configured as IDE master and slave. The P-IDE is a right angle type for maintaining the 4HP envelope of the C23-SATA (vertical header on request). P-IDE3 IDE Device Header R/A 2.54mm 2 x 20 (260.02.040.19)
Page 31: P-Km
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card P-KM As an option, the C23-SATA is available with a pin header that provides the legacy PS/2 keyboard and mouse signals, derived from the on-board SIO component. A suitable cable harness or small PCB would be needed in addition, for translation to the PS/2 style DIN round connector(s).
Page 32: P-Sp4
P-SP4 (TTL-level on all signals). P-SP4 is suitable for attachment of an EKF CU-series PHY module via a micro ribbon flat cable assembly. A PHY module is a transceiver from TTL level signals to a specific symmetric or asymmetric interface standard, e.g. EIA- 485 or RS-232E, with or w/o galvanic isolation.
Page 33 Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card P-SP4 TTL-Level Serial I/O or GPIO 2.00mm Pin Header 2 x 5 (277.01.010.21) +5V_SP4 0.5A DSR4# / GP66 RI4# / GP31 RXD4 / GP64 TXD4 / GP65 DTR4# / GP34...
Page 34: P-Ufd
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card P-UFD As an option, the C23-SATA can be equipped with a pin header for an industrial style USB Flash disk mezzanine module. The connector is a 2.0mm pitch pin header, suitable for a low profile SSD (Solid- State Drive) 37mm x 26mm.
Page 35: P-Usb
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card P-USB The C23-SATA can be equipped with an USB type A receptacle for attachment of system internal devices. The connector is a R/A style jack in order to maintain the 4HP envelope of the mezzanine card.
Page 36: On-Board Jumpers
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card On-Board Jumpers Most options on the C23-SATA are stuffing options, so there are only 2 jumpers which are available for user interaction, J-RES (force reset) and J-FWH2 (select Firmware Hub).
Page 37: Inter-Board Connectors
P-PCIe (1-Lane PCI Express) connectors. All inter-board connectors are situated at the bottom of the C23-SATA and establish the data path and power link to the carrier board CPU. As the C23-SATA comes typically mounted as a unit together with the CCG-RUMBA or another CPU carrier board, there is normally no need for the user to get access to any of the inter-board connectors.
Page 38 Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Legacy Expansion PCI Express 1x4 / 4x1 High Speed Expansion LPC, Audio, USB SATA/RAID, USB C23-SATA C23-SATA C40-SCFA CCH-MARIACHI CCI-RAP C42-SATA CCI-RAP CCJ-RHYTHM C43-SATA CCJ-RHYTHM CCK-MARIMBA C44-SATA CCK-MARIMBA CCL-CAPELLA...
Page 39: P-Exp
USB Port 5 on CCG-RUMBA connects to USB_OC56#on CCG-RUMBA PCI Express port configuration defaults to 4 links by 1 lane (1 link x 1 lane used on the C23-SATA) switched power supply lines from CPU carrier board according to Sx state ©...
Page 40: P-Pcie
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card P-PCIE The high speed expansion socket P-PCIE is mounted on bottom of the C23-SATA. This allows to attach the mezzanine companion card on top of the CPU carrier board. A mating strip line spacer PCB...
Page 42: Additional Functions
FWH determines whether it is detected as BIOS after power on (ID = 0). If stuffed, the jumper J-FWH sets the on-board FWH2 ID to zero (and simultaneously changes the CCG-RUMBA SPI Flash BIOS ID to 1) - hence the system will use the BIOS on the C23-SATA after power-on. J-FWH2...
Page 43: Trusted Platform Module
Technical Information C23-SATA • PCIe to SATA RAID Controller Mezzanine Card Trusted Platform Module The C23-SATA can be optionally equipped with a Trusted Platform Module cryptographic chip according to the TPM 1.2 specification. The board provides a universal footprint which is suitable for SLB9635 (Infineon www.infineon.com/tpm)
Page 44: Schematics
Complete circuit diagrams for this product are available for customers on request. Signing of a non- disclosure agreement would be needed. Please contact sales@ekf.de for details. EKF reserves the right to refuse distribution of confidential information material for any reason that EKF may consider substantial.
