User Guide CCM-BOOGIE • High Performance Core
2 Duo 3U CompactPCI
CPU Board

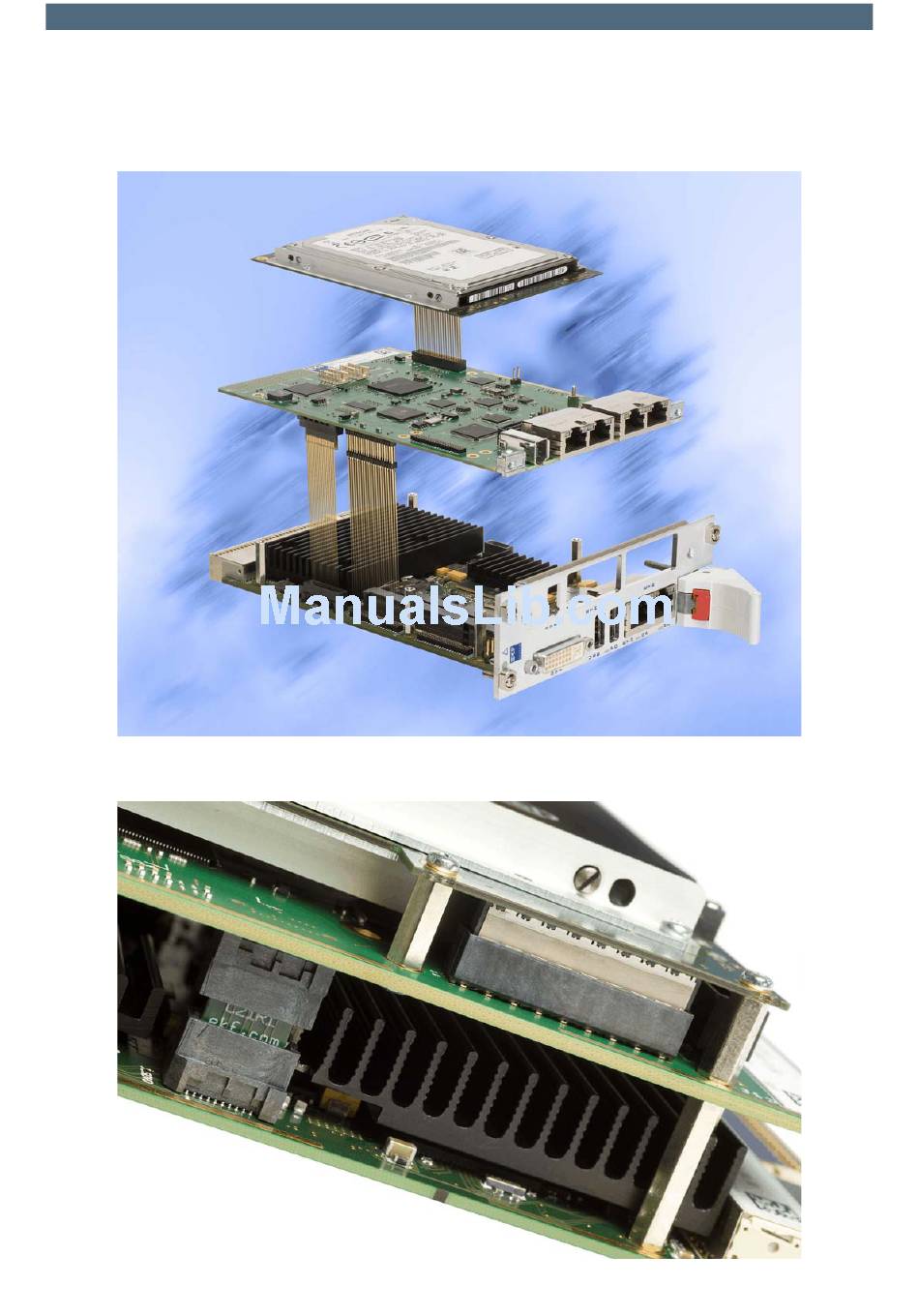

The picture below illustrates a typical mezzanine stack, comprised of the CPU carrier board (shared
front panel from 4HP to 12HP, individually tailored to customers configuration), a mezzanine side
board with a variety of PCIe and legacy interface functions (front panel and/or rear I/O), and a SATA
storage module (either SSD or hard disk, 1.8-inch or 2.5-inch, dual or single drive, RAID option).
