User Guide CCM-BOOGIE • High Performance Core

CCM-BOOGIE Features

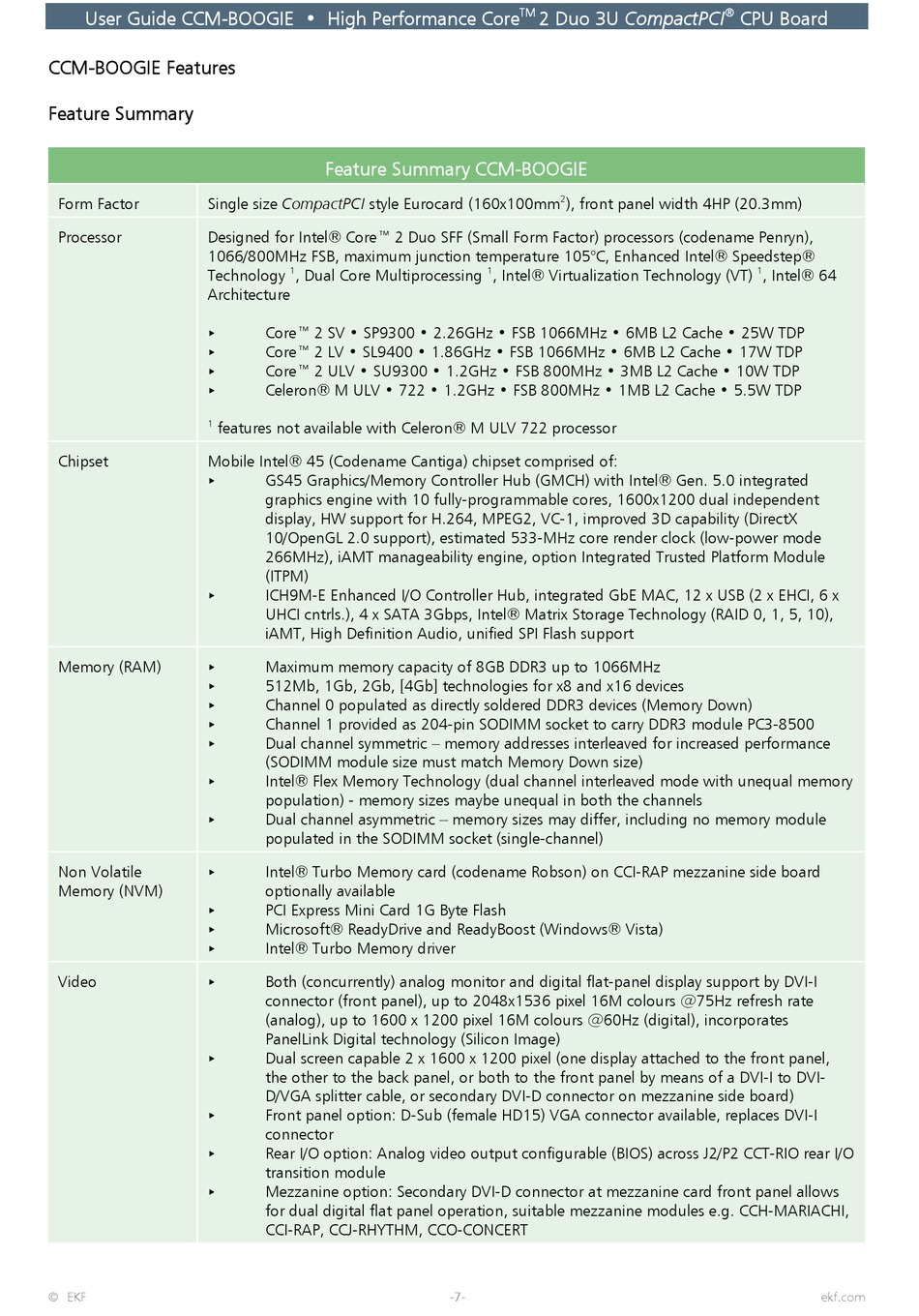

Feature Summary

Form Factor Single size CompactPCI style Eurocard (160x100mm
Processor Designed for Intel® Core™ 2 Duo SFF (Small Form Factor) processors (codename Penryn),
1066/800MHz FSB, maximum junction temperature 105°C, Enhanced Intel® Speedstep®
Technology
Architecture
<
<
<
<
1
features not available with Celeron® M ULV 722 processor
Chipset Mobile Intel® 45 (Codename Cantiga) chipset comprised of:
<
<
Memory (RAM)
<
<
<
<
<
<
<
Non Volatile <
Memory (NVM)
<
<
<
Video <
<
<
<
<
© EKF
Feature Summary CCM-BOOGIE
1
, Dual Core Multiprocessing
Core™ 2 SV • SP9300 • 2.26GHz • FSB 1066MHz • 6MB L2 Cache • 25W TDP
Core™ 2 LV • SL9400 • 1.86GHz • FSB 1066MHz • 6MB L2 Cache • 17W TDP
Core™ 2 ULV • SU9300 • 1.2GHz • FSB 800MHz • 3MB L2 Cache • 10W TDP
Celeron® M ULV • 722 • 1.2GHz • FSB 800MHz • 1MB L2 Cache • 5.5W TDP
GS45 Graphics/Memory Controller Hub (GMCH) with Intel® Gen. 5.0 integrated
graphics engine with 10 fully-programmable cores, 1600x1200 dual independent
display, HW support for H.264, MPEG2, VC-1, improved 3D capability (DirectX
10/OpenGL 2.0 support), estimated 533-MHz core render clock (low-power mode
266MHz), iAMT manageability engine, option Integrated Trusted Platform Module
(ITPM)
ICH9M-E Enhanced I/O Controller Hub, integrated GbE MAC, 12 x USB (2 x EHCI, 6 x
UHCI cntrls.), 4 x SATA 3Gbps, Intel® Matrix Storage Technology (RAID 0, 1, 5, 10),
iAMT, High Definition Audio, unified SPI Flash support
Maximum memory capacity of 8GB DDR3 up to 1066MHz
512Mb, 1Gb, 2Gb, [4Gb] technologies for x8 and x16 devices
Channel 0 populated as directly soldered DDR3 devices (Memory Down)
Channel 1 provided as 204-pin SODIMM socket to carry DDR3 module PC3-8500
Dual channel symmetric – memory addresses interleaved for increased performance
(SODIMM module size must match Memory Down size)
Intel® Flex Memory Technology (dual channel interleaved mode with unequal memory
population) - memory sizes maybe unequal in both the channels
Dual channel asymmetric – memory sizes may differ, including no memory module
populated in the SODIMM socket (single-channel)
Intel® Turbo Memory card (codename Robson) on CCI-RAP mezzanine side board
optionally available
PCI Express Mini Card 1G Byte Flash
Microsoft® ReadyDrive and ReadyBoost (Windows® Vista)
Intel® Turbo Memory driver
Both (concurrently) analog monitor and digital flat-panel display support by DVI-I
connector (front panel), up to 2048x1536 pixel 16M colours @75Hz refresh rate
(analog), up to 1600 x 1200 pixel 16M colours @60Hz (digital), incorporates
PanelLink Digital technology (Silicon Image)
Dual screen capable 2 x 1600 x 1200 pixel (one display attached to the front panel,
the other to the back panel, or both to the front panel by means of a DVI-I to DVI-
D/VGA splitter cable, or secondary DVI-D connector on mezzanine side board)
Front panel option: D-Sub (female HD15) VGA connector available, replaces DVI-I
connector
Rear I/O option: Analog video output configurable (BIOS) across J2/P2 CCT-RIO rear I/O
transition module
Mezzanine option: Secondary DVI-D connector at mezzanine card front panel allows
for dual digital flat panel operation, suitable mezzanine modules e.g. CCH-MARIACHI,
CCI-RAP, CCJ-RHYTHM, CCO-CONCERT
TM
2 Duo 3U CompactPCI
2
), front panel width 4HP (20.3mm)
1
, Intel® Virtualization Technology (VT)
-7-
®
CPU Board
1
, Intel® 64
