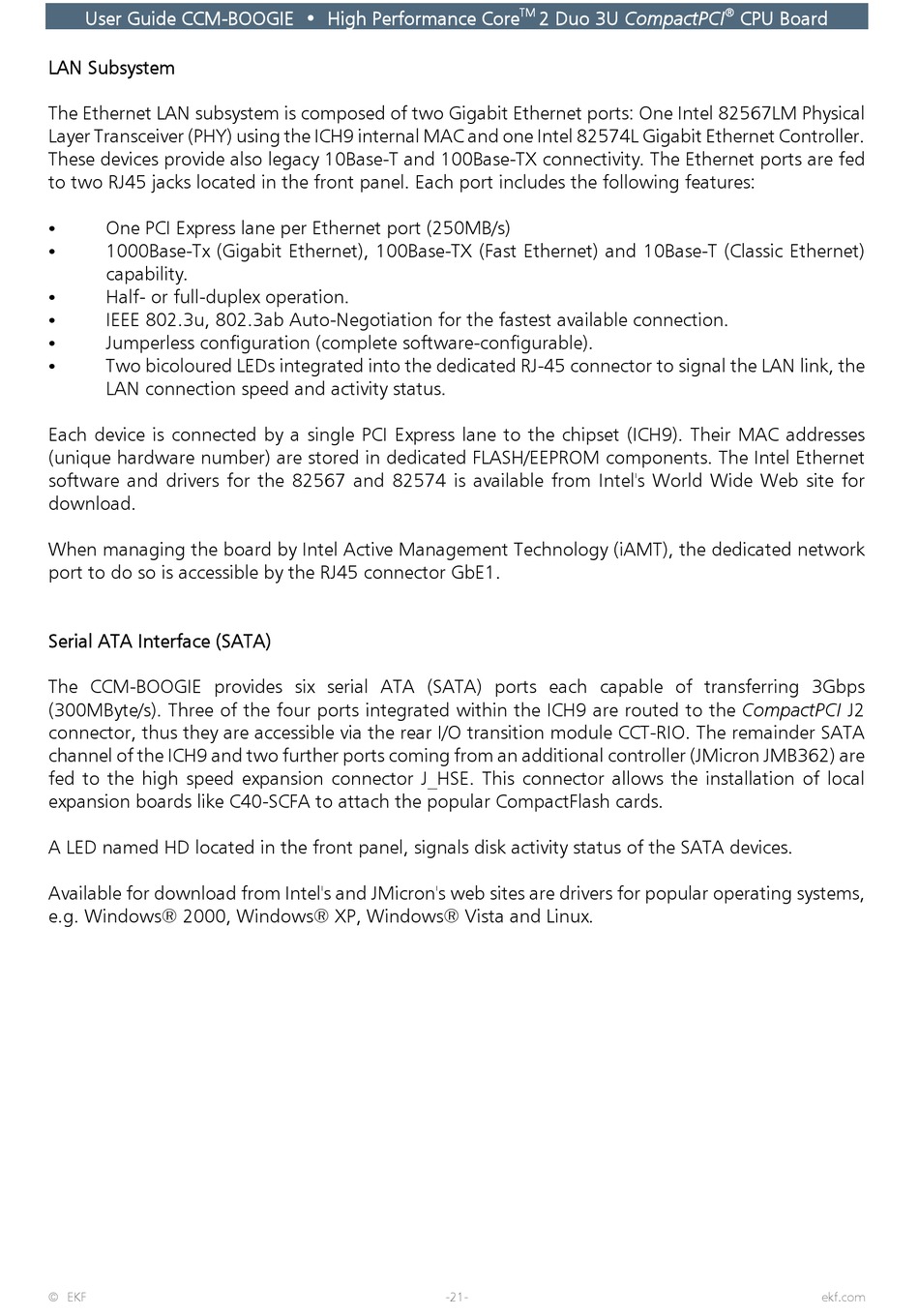

User Guide CCM-BOOGIE • High Performance Core
LAN Subsystem
The Ethernet LAN subsystem is composed of two Gigabit Ethernet ports: One Intel 82567LM Physical
Layer Transceiver (PHY) using the ICH9 internal MAC and one Intel 82574L Gigabit Ethernet Controller.
These devices provide also legacy 10Base-T and 100Base-TX connectivity. The Ethernet ports are fed
to two RJ45 jacks located in the front panel. Each port includes the following features:
One PCI Express lane per Ethernet port (250MB/s)
C
1000Base-Tx (Gigabit Ethernet), 100Base-TX (Fast Ethernet) and 10Base-T (Classic Ethernet)
C
capability.
Half- or full-duplex operation.
C
C
IEEE 802.3u, 802.3ab Auto-Negotiation for the fastest available connection.
Jumperless configuration (complete software-configurable).
C
Two bicoloured LEDs integrated into the dedicated RJ-45 connector to signal the LAN link, the
C
LAN connection speed and activity status.
Each device is connected by a single PCI Express lane to the chipset (ICH9). Their MAC addresses
(unique hardware number) are stored in dedicated FLASH/EEPROM components. The Intel Ethernet
software and drivers for the 82567 and 82574 is available from Intel's World Wide Web site for
download.
When managing the board by Intel Active Management Technology (iAMT), the dedicated network
port to do so is accessible by the RJ45 connector GbE1.
Serial ATA Interface (SATA)
The CCM-BOOGIE provides six serial ATA (SATA) ports each capable of transferring 3Gbps
(300MByte/s). Three of the four ports integrated within the ICH9 are routed to the CompactPCI J2
connector, thus they are accessible via the rear I/O transition module CCT-RIO. The remainder SATA
channel of the ICH9 and two further ports coming from an additional controller (JMicron JMB362) are
fed to the high speed expansion connector J_HSE. This connector allows the installation of local
expansion boards like C40-SCFA to attach the popular CompactFlash cards.
A LED named HD located in the front panel, signals disk activity status of the SATA devices.
Available for download from Intel's and JMicron's web sites are drivers for popular operating systems,
e.g. Windows® 2000, Windows® XP, Windows® Vista and Linux.
© EKF
TM
2 Duo 3U CompactPCI
-21-
®
CPU Board
ekf.com
