Mechanical Drawings

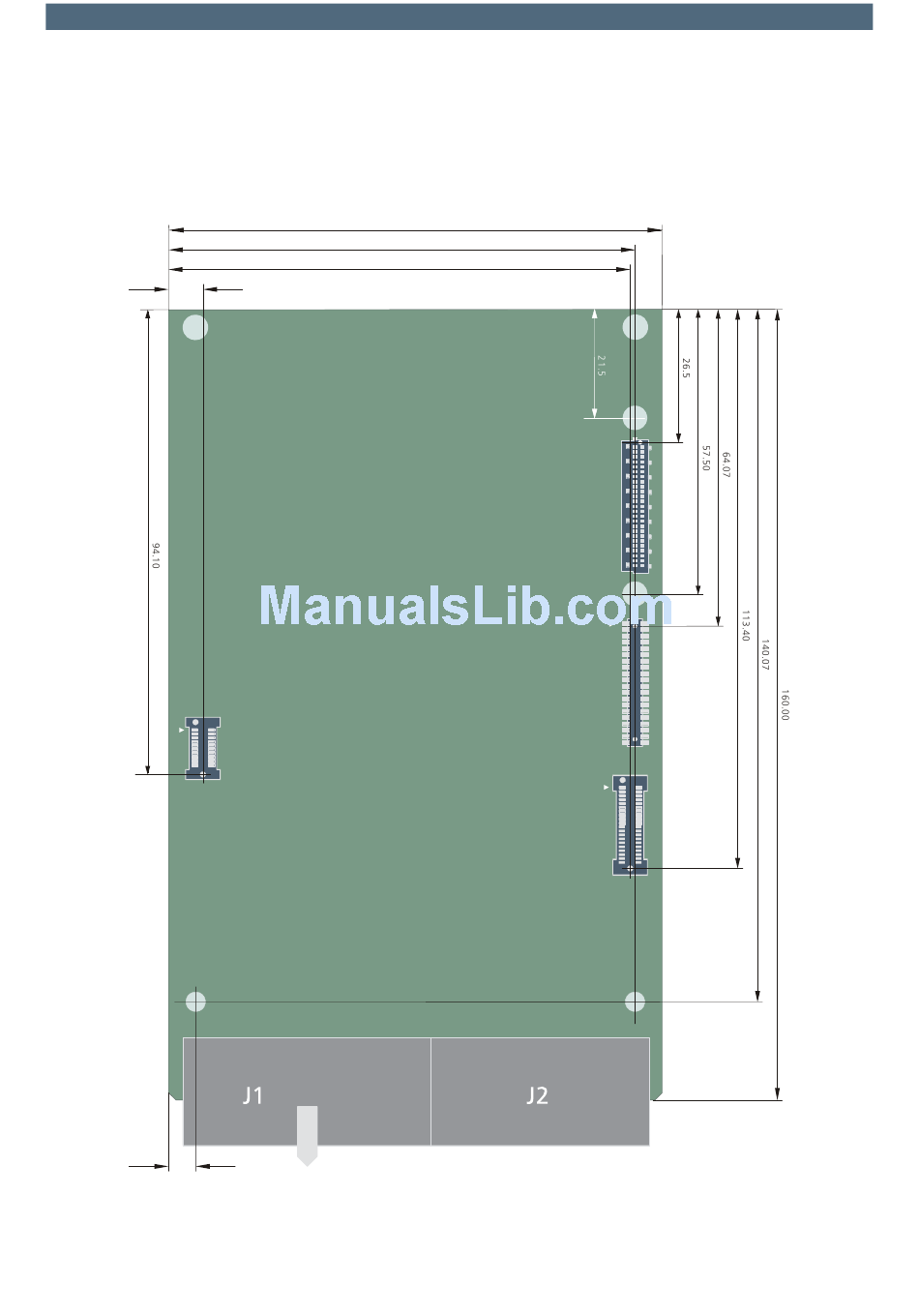

The following drawing shows the positions of mounting holes and expansion connectors on the
CCM-BOOGIE.
7.00
5.50
© EKF
100.00
94.50
93.50
J-SDVO
CCM-BOOGIE
© EKF
TM
2 Duo 3U CompactPCI
J-HSE
J-EXP
J-PCIE
• ekf.com
-74-
®
CPU Board
ekf.com
