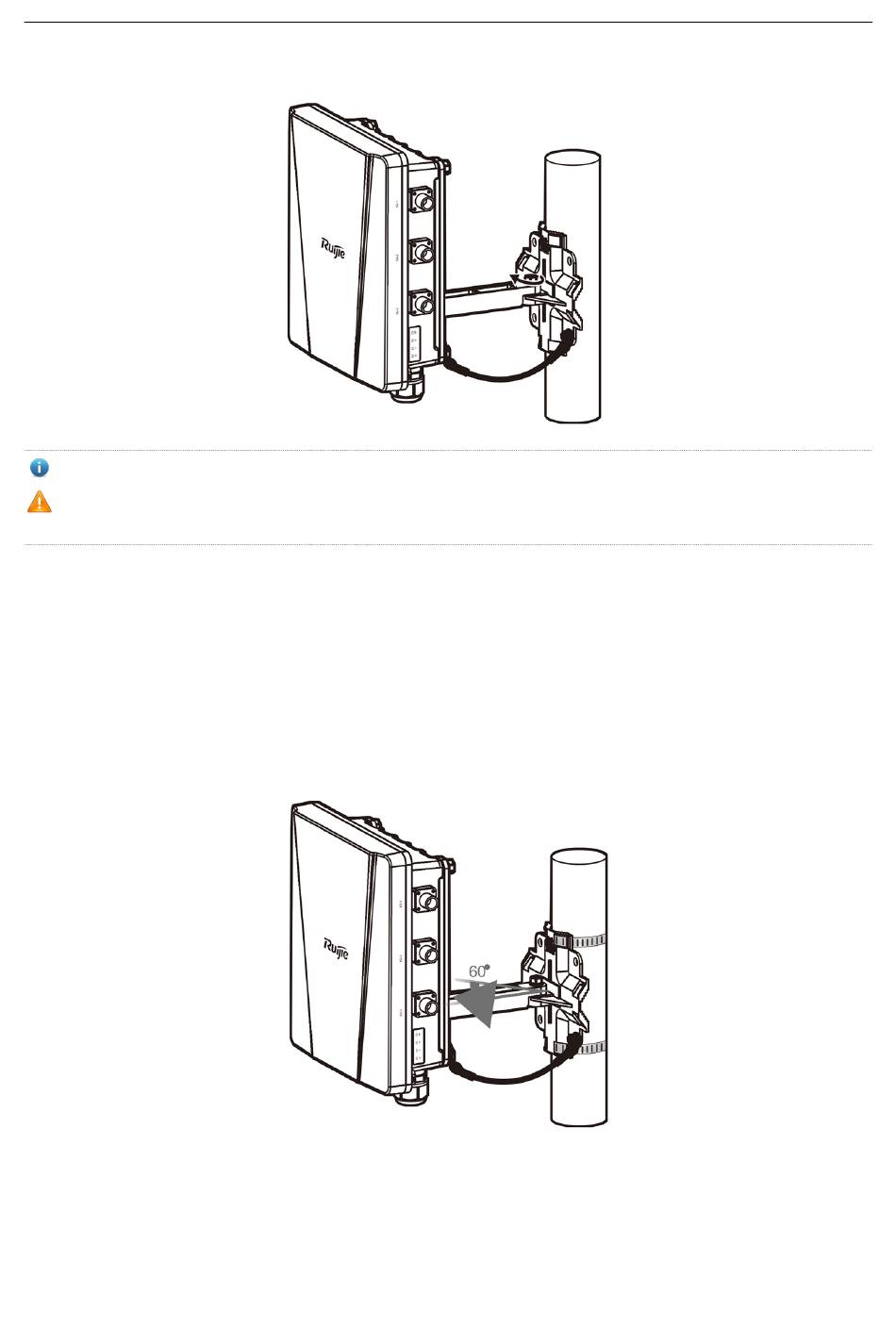

Figure 3-7 Installing the AP on a Vertical Pole
The procedure of horizontal pole mount is similar as that of a vertical mount.
If the diameter of the pole is out of the range, the hose clamp is customer-supplied. In this case, we strongly
recommend you to use a 304 stainless steel hose clamp with thickness of 2.5mm at least.

3.5 Adjusting Antenna Orientation

Both directional and omni-directional antennas are available for the RG-AP630(IDA2). The integrated antenna is in
parallel with the upper shell. Adjust the position of the mounting plate to change antenna orientation.
RG-AP630(IDA2) Antenna Orientation
Figure 3-8 Anticlockwise Horizontal Rotation (-60°)
