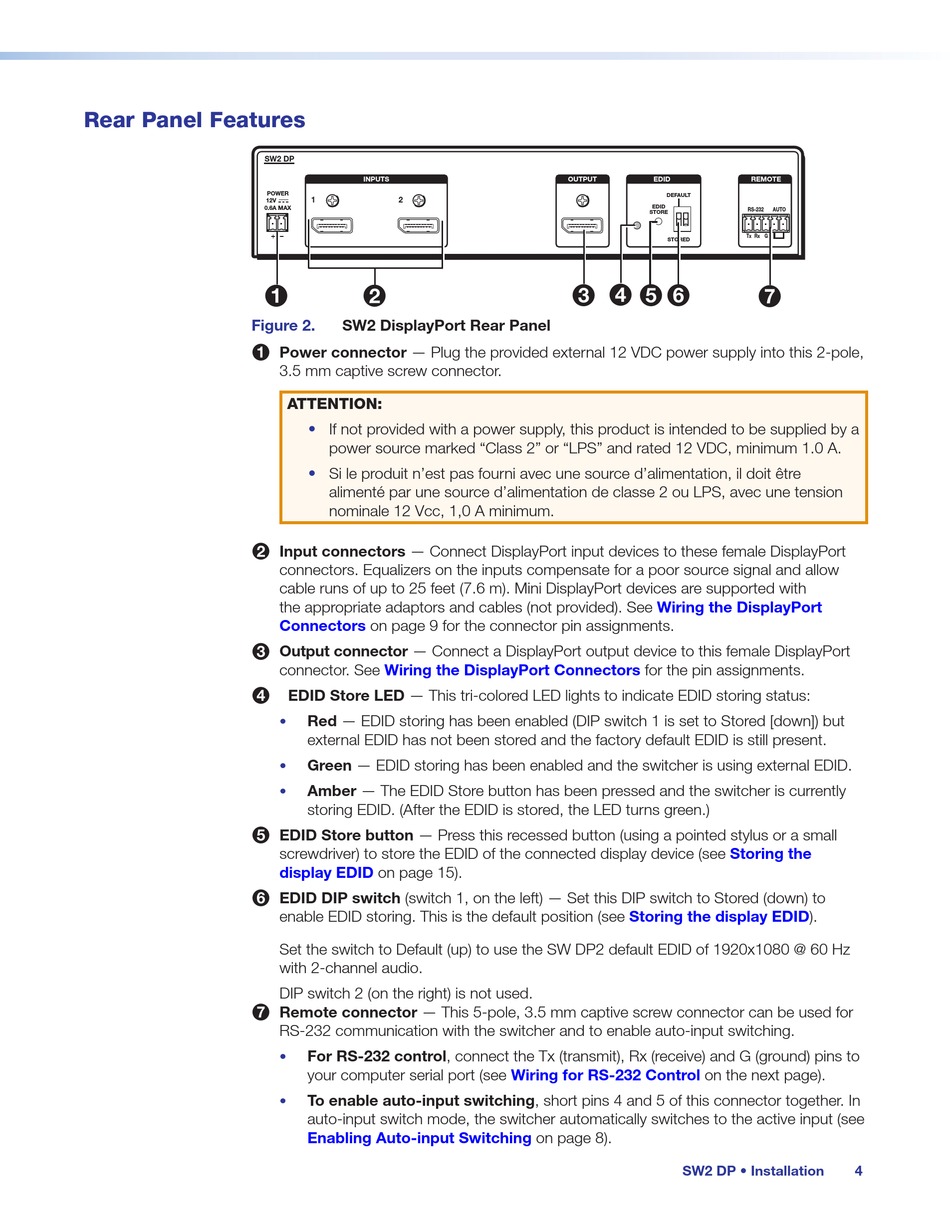

Rear Panel Features
Figure 2.
1
2
3
4
5
6
7
SW2 DP
INPUTS
POWER
1
2
12V
0.6A MAX
1
2
SW2 DisplayPort Rear Panel
Power connector — Plug the provided external 12 VDC power supply into this 2-pole,
3.5 mm captive screw connector.
ATTENTION:
•
If not provided with a power supply, this product is intended to be supplied by a
power source marked "Class 2" or "LPS" and rated 12 VDC, minimum 1.0 A.
•
Si le produit n'est pas fourni avec une source d'alimentation, il doit être
alimenté par une source d'alimentation de classe 2 ou LPS, avec une tension
nominale 12 Vcc, 1,0 A minimum.
Input connectors — Connect DisplayPort input devices to these female DisplayPort
connectors. Equalizers on the inputs compensate for a poor source signal and allow
cable runs of up to 25 feet (7.6 m). Mini DisplayPort devices are supported with
the appropriate adaptors and cables (not provided). See
Connectors
on page 9 for the connector pin assignments.
Output connector — Connect a DisplayPort output device to this female DisplayPort
connector. See
Wiring the DisplayPort Connectors
EDID Store LED — This tri-colored LED lights to indicate EDID storing status:
Red — EDID storing has been enabled (DIP switch 1 is set to Stored [down]) but
•
external EDID has not been stored and the factory default EDID is still present.
Green — EDID storing has been enabled and the switcher is using external EDID.
•
Amber — The EDID Store button has been pressed and the switcher is currently
•
storing EDID. (After the EDID is stored, the LED turns green.)
EDID Store button — Press this recessed button (using a pointed stylus or a small
screwdriver) to store the EDID of the connected display device (see
display EDID
on page 15).
EDID DIP switch (switch 1, on the left) — Set this DIP switch to Stored (down) to
enable EDID storing. This is the default position (see
Set the switch to Default (up) to use the SW DP2 default EDID of 1920x1080 @ 60 Hz
with 2-channel audio.
DIP switch 2 (on the right) is not used.
Remote connector — This 5-pole, 3.5 mm captive screw connector can be used for
RS-232 communication with the switcher and to enable auto-input switching.
For RS-232 control, connect the Tx (transmit), Rx (receive) and G (ground) pins to
•
your computer serial port (see
To enable auto-input switching, short pins 4 and 5 of this connector together. In
•
auto-input switch mode, the switcher automatically switches to the active input (see
Enabling Auto-input Switching
