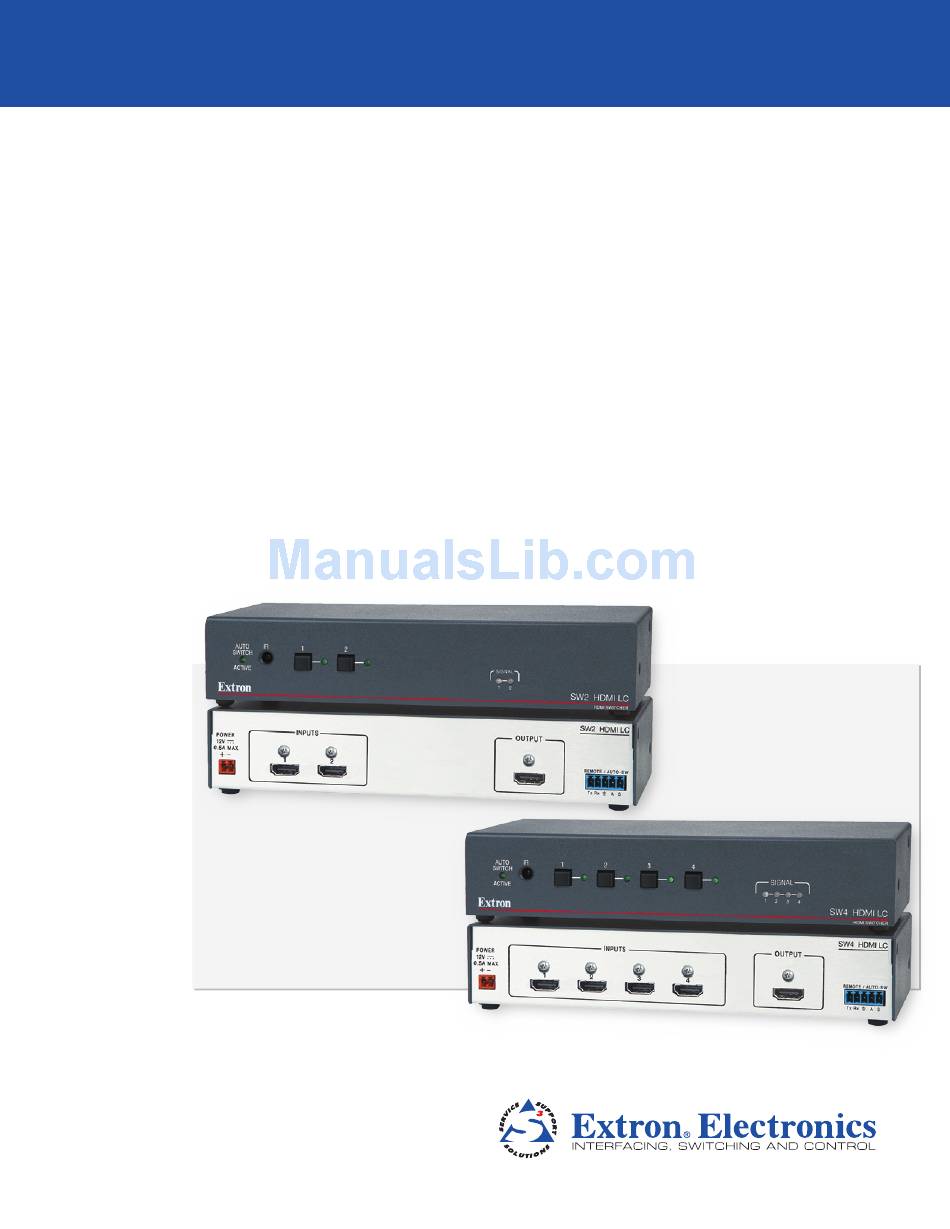

- Page 1 User Guide HDMI Switchers SW HDMI LC Two and Four Input HDMI Switchers 68-1978-01 Rev. A 07 10...
- Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third maintenance (servicing) instructions in the literature provided with the (grounding) pin is a safety feature, do not attempt to bypass or disable it.
- Page 3 For complete safety information about these products please read the Safety Compliances sheet, which is available online at www.extron.com. Copyright © 2010 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this manual are the properties of their respective owners.
-
Page 5: Table Of Contents
Contents Introduction............1 Reference Information........22 About this Guide ..........1 Specifications ............ 22 About the SW HDMI LC Switchers ...... 1 Part Numbers ............ 24 Features .............. 1 Included Parts ..........24 Application Diagram ........... 2 Accessories ........... 24 Cables and Adapters ........ - Page 6 SW HDMI LC • Contents...
-
Page 7: Introduction
This manual describes the Extron SW HDMI LC switchers and discusses how to install, configure, and operate them. In this manual, the term “SW HDMI LC” refers to both the SW2 HDMI LC and the SW4 HDMI LC switchers. “Switcher” and “SW HDMI LC” are used interchangeably to refer to any single unit. -
Page 8: Application Diagram
HDCP compliant — HDCP communication is passed through directly from the selected input source to the output device. Application Diagram The following diagram shows an example of how an SW HDMI LC switcher can be connected. Extron SW4 HDMI LC... -
Page 9: Installation
SW HDMI LC” in the “Reference Information” section. Connect HDMI input sources to one or more of the SW HDMI LC input connectors. Connect an output device to the HDMI output connector on the switcher rear panel. Wire an RS-232 cable to pins 1, 2, and 3 of one of the provided 5-pin captive screw plugs. -
Page 10: Rear Panel Features
To enable auto-input switching, short pins 4 and 5 of this connector together. In auto-input switch mode, the switcher automatically switches to the highest “Enabling Auto-input Switching,” later in this numbered active input. (See section.) SW HDMI LC • Installation... -
Page 11: Wiring The Power Connector (Optional)
A 12 VDC, 1 A desktop power supply with a 2-pin captive screw connector attached is provided with the SW HDMI LC. If you are using a different external power supply from the provided one, you may need to wire the captive screw connector for your power supply. -
Page 12: Hdmi Video Connector Pin Assignments
TMDS data 1+ 10 TMDS clock+ 16 SDA TMDS data 1 11 TMDS clock 17 DDC/CEC shield shield ground TMDS data 1– 12 TMDS clock– 18 +5 V power Hot plug detect *Not supported Figure 5. HDMI Pin Configurations SW HDMI LC • Installation... -
Page 13: Wiring For Rs-232 Control
9 pin HD Connector NOTE: If you use cable that has a drain wire, tie the drain wire to ground at both ends. To Computer or Control System RS-232 Port Figure 6. Remote/Auto-SW Connector Pin Assignments SW HDMI LC • Installation... -
Page 14: Enabling Auto-Input Switching
Enabling Auto-input Switching You can set up the SW HDMI LC to automatically select the active, connected input based on detection of an active video signal. If two or more inputs are active, the input with the highest number is selected (for example, input 4 on an SW4 HDMI LC switcher). When auto-input switching is in effect, the green Auto Switch LED on the front panel lights and the front panel input selection buttons are disabled. -
Page 15: Operation
Operation This section describes the operation of the SW HDMI LC switchers, including: Front Panel Features Operations Front Panel Features AUTO SWITCH SIGNAL ACTIVE SW2 HDMI LC HDMI SWITCHER Figure 8. SW2 HDMI LC Front Panel AUTO SWITCH SIGNAL ACTIVE... -
Page 16: Operations
(see Mode)” and “Resetting,” later in this section). Signal presence LEDs — Each SW HDMI LC input has a corresponding numbered bicolored Signal LED, which lights as follows when a source is connected to the input... -
Page 17: Using The Optional Ir 102 Remote Control
Locking IR remote access The SW HDMI LC can be set to lock out users from using the IR 102 Remote Control to control the switcher. Remote access can be enabled and disabled via SIS commands (see “Front panel IR receiver... -
Page 18: Enabling Front Panel Lockout (Executive Mode)
When the LEDs blink three times, release the buttons (approximately 3 seconds). (See the illustration below.) Wait until LEDs blink 3 times. Release buttons. Press and hold simultaneously for 3 seconds. Figure 11. Enabling or Disabling Executive Mode SW HDMI LC • Operation... -
Page 19: Remote Communication And Control
Updating Firmware Using Firmware Loader Using Simple Instruction Set (SIS) Commands The SW HDMI LC can be remotely set up and controlled via a host computer or other device (such as a control system), attached to the rear panel Remote/Auto-SW port, using “Enabling Auto... -
Page 20: Error Responses
2 = signal detected (TMDS clock) = Switch mode 1 = normal switch mode 2 = auto-input switch mode = Firmware version (to the second decimal place) NOTE: Unless otherwise indicated, commands are not case sensitive. SW HDMI LC • Remote Communication and Control... -
Page 21: Command/Response Table For Sis Commands
1 = normal switch mode 2 = auto-input switch mode Example: On an SW4 HDMI LC, input 4 is selected, auto- V4 F2 Vmt0 input switch mode is enabled, and the video is not muted. SW HDMI LC • Remote Communication and Control... -
Page 22: Upload Firmware
Reset Reset Reset the switcher to its factory default values. ZXXX Upload firmware Upload firmware ...go Upload a new firmware version from the Upload computer. “Upl” appears after the upload is complete. SW HDMI LC • Remote Communication and Control... -
Page 23: Updating Firmware Using Firmware Loader
Downloading and installing the Firmware Loader Extron recommends using the Firmware Loader software to update the firmware on the SW HDMI LC. If you do not already have the Firmware Loader software installed on your computer, download it as follows: www.extron.com... -
Page 24: Loading The Firmware To The Switcher
Device Name: your switcher model (SW2 HDMI LC or SW4 HDMI LC) Connection Method: RS-232 Com Port: the name of the Com port to which your SW HDMI LC is connected Baud Rate: 9600. SW HDMI LC • Remote Communication and Control... - Page 25 Add Device Window NOTE: Although the screen also has a TCP/IP tab, the SW HDMI LC does not have a LAN port. Do not select the TCP/IP tab. Click Connect. Your switcher name is added to the Connected Devices field in Firmware Loader window.
- Page 26 Click Add Next if you want to upload firmware to multiple Extron devices at the same time (they do not all have to be SW HDMI LC switchers). Your switcher is added to the Firmware Loader screen and the Add Device window remains open. Continue with the...
- Page 27 New Firmware for Selected Devices from the pop-up menu. On the Choose Firmware File window, browse to locate and select the firmware file that you want to upload to the selected device. SW HDMI LC • Remote Communication and Control...
-
Page 28: Reference Information
Reference Information This section reference information for the SW HDMI LC switchers. Topics that are covered include: Specifications Part Numbers Mounting the SW HDMI LC Specifications NOTE: *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. - Page 29 EMI/EMC ......CE, C-tick, FCC Class A, ICES, VCCI MTBF ........30,000 hours Warranty ........3 years parts and labor NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice. SW HDMI LC • Reference Information...
-
Page 30: Part Numbers
MBB 100 Back of the Rack Kit 70-367-01 Cables and Adapters The following table lists cables and adapters that are available for the SW HDMI LC. For a complete listing of cables, visit the Extron Web site at www.extron.com. Cables... -
Page 31: Mounting The Sw Hdmi Lc
(for example, use of power strips). Rack mounting procedures The SW HDMI LC switcher can be mounted on a rack shelf or on one of the supports at the back of the rack. Mounting on a rack shelf For optional rack mounting of the SW HDMI LC, the following rack shelves are available: RSB 123 —... - Page 32 Shelf Mounting to the back of the rack The SW HDMI LC can also be mounted vertically to the front or rear rack supports, using the optional MBB 100 Back of the Rack Mounting Kit (part #70-367-01) as follows: If rubber feet were previously attached to the bottom of the unit, remove them.
-
Page 33: Furniture Mounting
Mounting an SW HDMI LC Switcher to a Back of the Rack Support Furniture Mounting To mount an SW HDMI LC switcher under a desk, table, or podium, use the optional MBU 123 Mini Under-Desk Mounting Kit (part #70-212-01) as follows: If rubber feet were previously attached to the bottom of the unit, remove them. - Page 34 Align the centers of the slots in the brackets with the mounting screws and place the unit against the surface, with the screw heads through the bracket slots. Slide the unit slightly forward or back, then tighten all four screws to secure it in place. SW HDMI LC • Reference Information...
-
Page 35: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage. - Page 36 Inside Europe Only Inside Asia Only +81.3.3511.7656 FAX Inside China Only +971.4.2991880 FAX Inside USA / Canada Only +1.919.863.1794 +31.33.453.4040 +65.6383.4400 +86.21.3760.1568 +1.714.491.1500 +1.919.863.1797 FAX +31.33.453.4050 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +1.714.491.1517 FAX www.extron.com © 2010 Extron Electronics. All rights reserved.
