Wiring the DisplayPort Connectors

The DisplayPort connectors support data rates of either 1.62 Gbps (reduced bit rate) or
2.7 Gbps (high bit rate), using either one, two, or four lanes. The SW2 DP supports mini
DisplayPort through the use of the appropriate adapters and cables (not provided). The
SW2 DP supports resolutions up to 2560x1600. If audio is available from the sources, it is
also available to the output device.

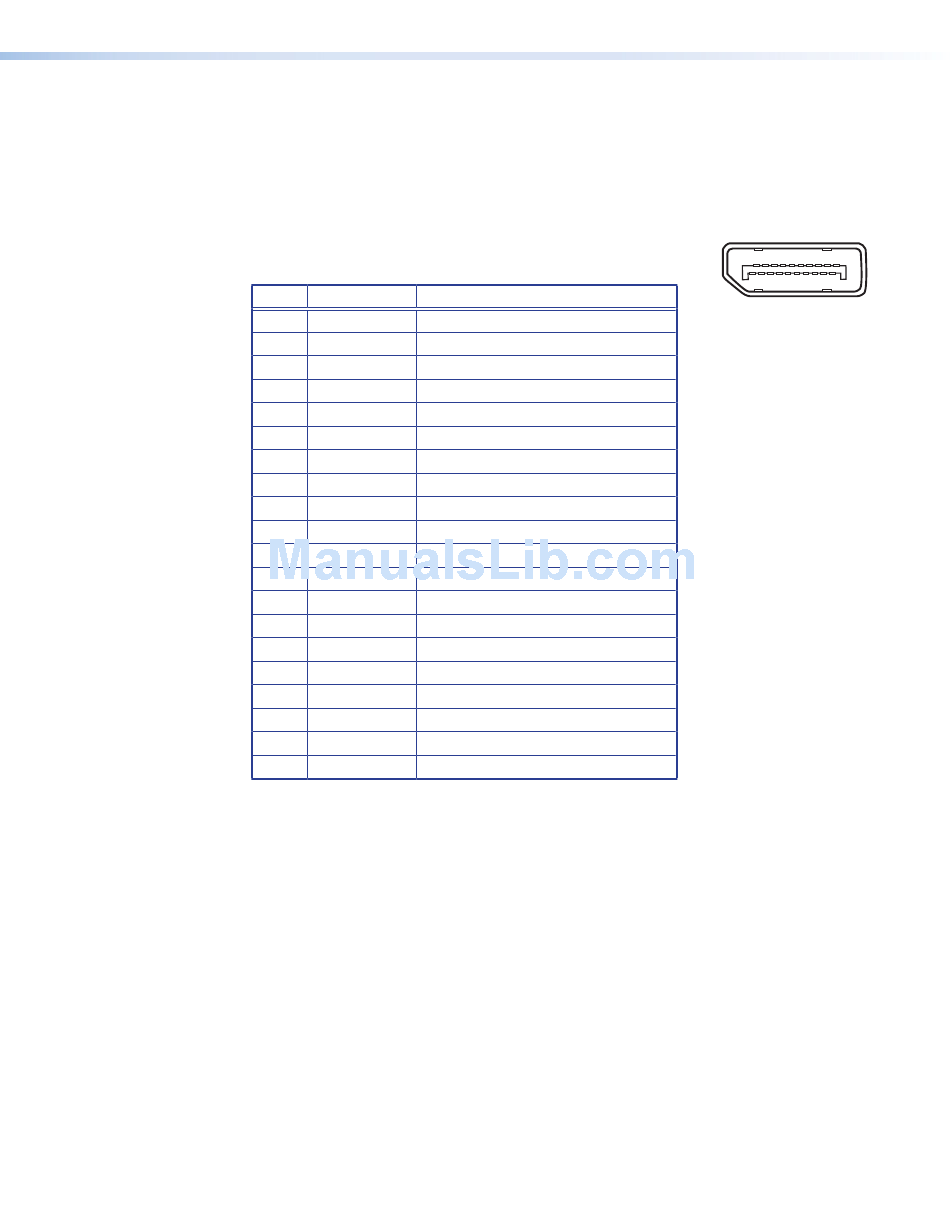

The figure on the right and the following table show pin assignments
for the DisplayPort connectors.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Function Notes
ML Lane 0 (p) Main link lane 0 (positive)
GND Ground
ML_Lane 0 (n) Main link lane 0 (negative)
ML_Lane 1 (p) Main link lane 1 (positive)
GND Ground
ML_Lane 1 (n) Main link lane 1 (negative)
ML_Lane 2 (p) Main link lane 2 (positive)
GND Ground
ML_Lane 2 (n) Main link lane 2 (negative)
ML_Lane 3 (p) Main link lane 3 (positive)
GND Ground
ML_Lane 3 (n) Main link lane 3 (negative)
CONFIG1 Connected to Ground 1
CONFIG2 Connected to Ground 1
AUX CH (p) Auxiliary Channel (positive)
GND Ground
AUX CH (n) Auxiliary Channel (negative)
Hot Plug Hot Plug Detect
Return Return for Power
DP_PWR Power for connector (3.3 V 500 mA)
19 1
20 2
Female DisplayPort
Connector
SW2 DP • Installation 9
