Page 4: Table Of Contents
Table of Contents Chapter 1 • Introduction ............1-1 About this Manual ..............1-2 About the Switchers ............1-2 Features ..................1-5 Chapter 2 • Installation ............. 2-1 Front and Rear Panels ............2-2 Front panel features .............. 2-2 Rear panel features ............... 2-3 Installing the Switcher ............ - Page 5 Table of Contents, cont’d Chapter 4 • SW AR MX, SW AR MX HV, and SW Switchers SW 6 Component Operation ..........4-1 Operating Modes ..............4-2 Selecting the mode from the front panel ......4-2 Front panel mode ..............4-3 Auto-switch mode ..............
-
Page 6: About This Manual
SW 6 AR HVxi ) • SW AR MX (SW 2 AR MX, SW 4 AR MX, SW 6 AR MX) • SW AR MX HV (SW 4 AR MX HV, SW 6 AR MX HV) • SW 6 Component About the Switchers Figure 3 —... -
Page 7: Features
INPUTS INPUTS the input connectors can act as output connectors. Figure 9 — SW 4 AR MX HV Thus, you are not limited to one output device. The same input image appears on all output devices. Remote control connector — This contact closure connector... -
Page 8: Chapter 2 • Installation
Introduction, cont’d SW Switchers Chapter Two Installation Front and Rear Panels Installing the Switcher Troubleshooting SW Switchers • Introduction Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 9: Front And Rear Panels

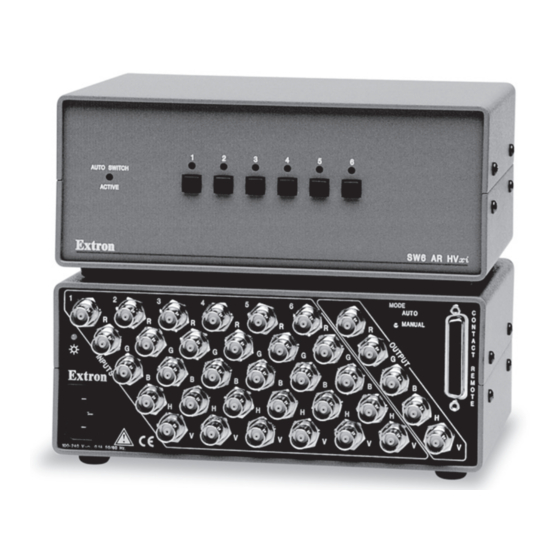

Installation Front and Rear Panels Auto switch active LED (SW ARxi and SW AR HVxi only) — Lights to indicate that auto-switch mode is Front panel features On. The input mode/selection LEDs on SW AR MX, SW AR MX HV, and SW 6 Component Figure 12 shows an SW 6 AR HVxi front panel, and figure 13 switchers accomplish the same function. - Page 10 Installation, cont’d capability. This allows the inputs to be used as outputs. See “Features” on page 1-8. Output connectors — BNC female output connectors See page 2-7 for information about cabling the connectors. Mode switch (SW ARxi and SW AR HVxi only) — Toggles between auto-switch mode and manual mode.
-
Page 11: Installing The Switcher
Installation, cont’d Installing the Switcher Installation overview To install a switcher, perform the following general steps: If desired, mount the switcher in a rack (see “Mounting the switcher” below). Turn off power to the input and output devices, and unplug the power cords from them. Attach the input and output devices to the switcher Figure 16 —... -
Page 12: Cabling The Switcher
Installation, cont’d 3. Secure the switcher to the rack panel by reinstalling the 2. Use BNC connectors to connect the switcher to the four corner screws and beveled (dress) washers output device. through the panel. To avoid shifting, ensure that the switcher is placed firmly against the panel. -
Page 13: Input Cabling For Auto-Switching
Installation, cont’d Input cabling for auto-switching (Y) cable to the Y input, and connect the chrominance (C) input cable to either the R-Y or the B-Y input. This section applies to SW ARxi, SW AR HVxi, SW AR MX, and SW AR MX HV switchers only. If auto-switching for composite or S-video is It does not apply to the SW 6 Component switcher. -
Page 14: Configuring Switchers For Looping
Installation, cont’d With the switchers connected as shown on page 2-12, input Output selection occurs as shown below. For SW AR xi and SW AR HV xi switchers, Loop Out is on pin 24 of the 25-pin connector, and Loop In is on pin 12. -
Page 15: Attaching Remote Control Devices
Installation, cont’d (Loop In). Connect switcher B’s contact remote To connect the switcher to the KP-10 wired remote keypad, connector pin 24 (Loop Out) to switcher A’s contact attach the keypad’s cable to the contact/manual remote remote connector pin 12 (Loop In). 25-pin connector on the switcher. -
Page 16: Remote Control Design Information
Installation, cont’d 5. Power the switcher on. Signal Signal Input 1 Input 2 To operate the IR-101, press the key for the desired input Input 3 Input 4 while aiming the hand-held unit at the IR detector. The Input 5 Input 6 approximate operating range is 30 feet. -
Page 17: Troubleshooting
Installation, cont’d Troubleshooting SW Switchers The sections below shows some common operating problems and their solutions. All models Problem — Pressing an input selection button does not change the input. Solution — Verify the operating mode. The input selection buttons do not change the input if the switcher is in auto-switch mode or (for SW AR MX, SW AR MX HV, and SW 6 Component switchers only) auto-sequence... -
Page 18: Chapter 3 • Sw Arxi Xi Xi Xi Xi And Sw Ar Hvxi Xi Xi Xi Xi Operation
SW ARxi xi xi xi xi and SW AR HVxi xi xi xi xi Operation This chapter applies to SW ARxi and SW AR HVxi switchers switchers support the Extron RS-232 2-4-6-8 Contact only. For SW AR MX, SW AR MX HV, and Closure Adapter. -
Page 19: Rs-232 2-4-6-8 Adapter Software
By default, the Windows installation places two icons (RS-232 2-4-6-8 Control Pgm and 2-4-6-8 ctrlr notes) into a group or folder named “Extron Electronics”. Clear buffer SW ARxi xi xi xi xi and SW AR HVxi xi xi xi xi • Operation SW ARxi xi xi xi xi and SW AR HVxi xi xi xi xi •... -
Page 20: Chapter 4 • Sw Ar Mx, Sw Ar Mx Hv, And Sw 6 Component Operation
To run the RS-232 2-4-6-8 Control Program, do the following: 1. Double-click on the RS-232 2-4-6-8 Control Pgm icon in the Extron Electronics group or folder. The RS-232 2-4-6-8 Control Program appears. 2. From the Com menu, click on the comm port that is connected to the RS-232 2-4-6-8 adapter port. -
Page 21: Operating Modes
Buttons 1 and 2 (SW 2 AR MX), buttons selected input, the switcher automatically switches to the 1 through 4 (SW 4 AR MX and SW 4 AR MX HV), or next higher input with sync available. -
Page 22: Auto-Sequence Mode
SW AR MX, SW AR MX HV, and SW 6 Component Operation, cont’d Auto-sequence mode Sequence rate decoding — alternate method An alternate method of determining the sequence rate is to In auto-sequence mode, the switcher scans all inputs at a add the assigned decimal values for each blinking LED. -
Page 23: Operating As A Slave
SW AR MX, SW AR MX HV, and SW 6 Component Operation, cont’d Do not touch any electronic components inside See the System 4 Series Switcher manual for the switcher. Doing so could damage the configuration information regarding the connection switcher. -
Page 24: Using The Command/Response Table
SW AR MX, SW AR MX HV, and SW 6 Component Operation, cont’d Command/response table Definitions and abbreviations: = CR/LF V = Video input Q = Software version 90-240 VAC, 50/60 Hz FUSE: 250V, 400mA SLO-BLO F = Function (mode ) C = Channel (input) INPUTS INPUTS... -
Page 25: Using The Software
1 MB (megabyte) of hard drive Help program in any of the following ways: space. • From the Extron Electronics program folder or group, By default, the Windows installation creates a C:\UNIVSW double-click on the Universal Switcher directory, and it places two icons (Universal Switcher Help icon. -
Page 26: Battery Backup
SW AR MX, SW AR MX HV, and SW 6 Component Operation, cont’d Battery backup SW Switchers If a loss of AC line voltage occurs, the current operating mode and the selected input are saved. When AC line voltage returns, the saved mode and input are restored and, the switcher resumes operation. - Page 27 Reference Information, cont’d Reference Information SW2 ARxi,SW4 ARxi, SW2/4/6 AR HVxi Specifications Input level ........1V to 5V p-p Output level ........5V p-p Video Input impedance ......510 ohms Output impedance ......75 ohms Gain ........... Unity Polarity ..........Positive or negative Bandwidth ........
-
Page 28: Sw Ar Mx Specifications
Reference Information, cont’d SW AR MX Specifications Max. rise/fall time ....... 4 nS Polarity .......... Positive or negative Video Control/remote — switcher Gain ..........Unity Serial control port ......RS-232, 9-pin D female connector Bandwidth ........600 MHz (-3dB), fully loaded Baud rate and protocol .... -
Page 29: Sw 4/6 Ar Mx Hv Specifications
DC offset ........±5mV maximum with input at 0 offset Product weight Sync SW 4 AR MX HV ..... 4.6 lbs (2.1 kg) SW 6 AR MX HV ..... 5.0 lbs (2.3 kg) Input type ........4 or 6 analog RGBHV, RGBS, RGsB,... -
Page 30: Sw 6 Component Specifications
Reference Information, cont’d MTBF ..........30,000 hours Control/remote — switcher Warranty ........3 years parts and labor Serial control port ......RS-232, 9-pin D female connector Baud rate and protocol ....9600, 8-bit, 1 stop bit, no parity Specifications are subject to change without notice. Serial control pin configurations .. -
Page 31: Part Numbers
SW 2 AR MX ............60-197-01 BNC-4-300’HR (300 feet/90.0 meters) ....26-210-53 SW 4 AR MX ............60-109-01 BNC-4 Mini-HR Bulk SW 4 AR MX HV ............ 60-109-03 (300’/90m up to 5000’/1500m) ...... 22-073-01 SW 6 AR MX ............60-110-01 BNC-5 HR cable SW 6 AR MX HV ............ - Page 32 Reference Information, cont’d A-12 SW Switchers • Reference Information Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
