PICO52R Pico-ITX Board
2.3

Assembly Drawing

For thermal dissipation, a thermal solution enables the PICO52R's components to dissipate
heat efficiently. All heat generating components are thermally conducted to the heatspreader in
order to avoid hot spots. Images below illustrate how to install the thermal solution on
PICO52R.

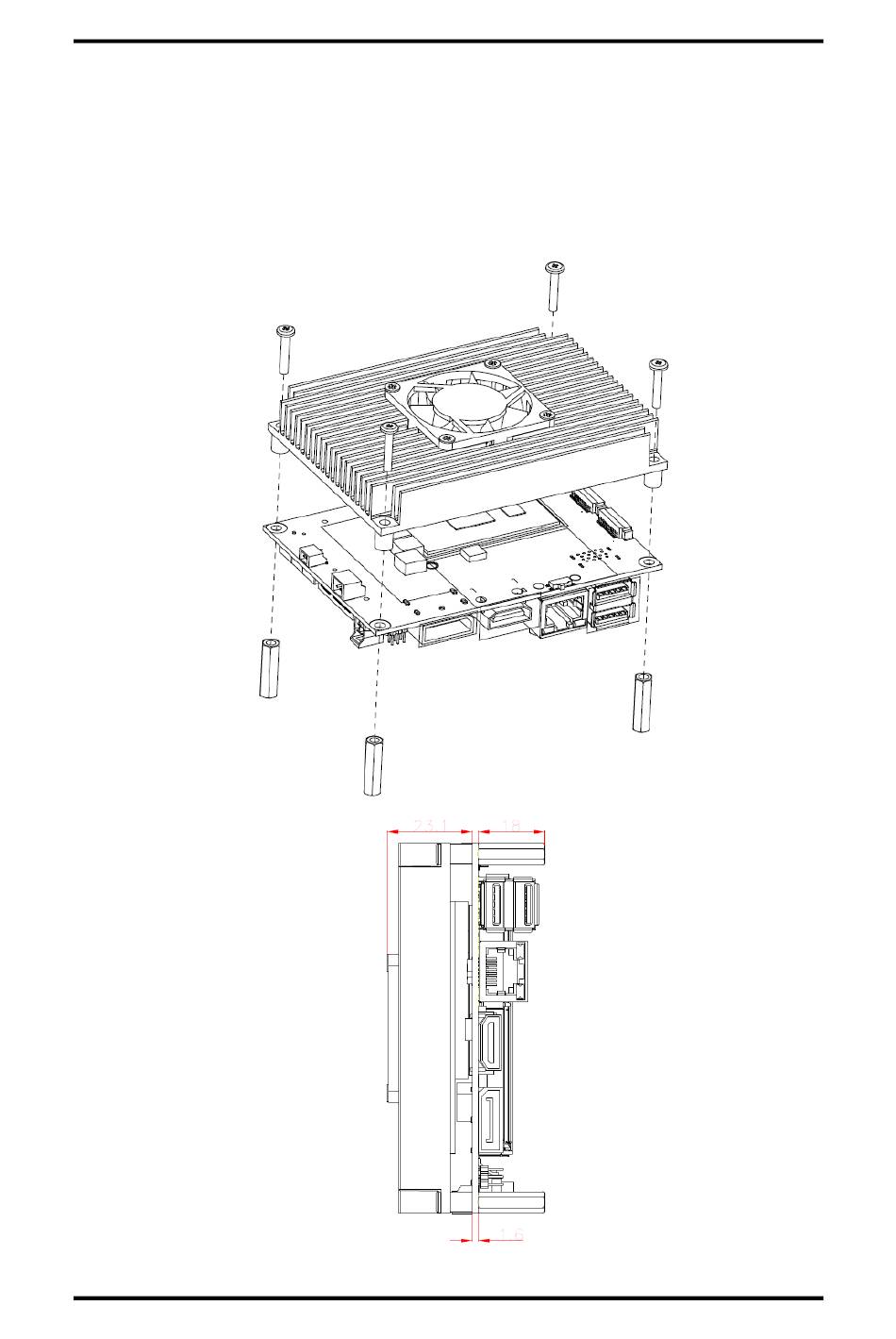

Standard – Heatsink with fan for PICO52R (see image below):
1.
Board and Pin Assignments 9
