DencoHappel MATRIX OP21C Operation Manual page 74

Operating MATRIX control panel
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0% 25%
100%
90%
80%
70%
60% 60%
50%
40%
30%
20%
10%
0%
0 25%
74
50% 75%
Value range: -50% to 50%
Adjustable steps: 1%
Factory setting: 0%
50% 75%

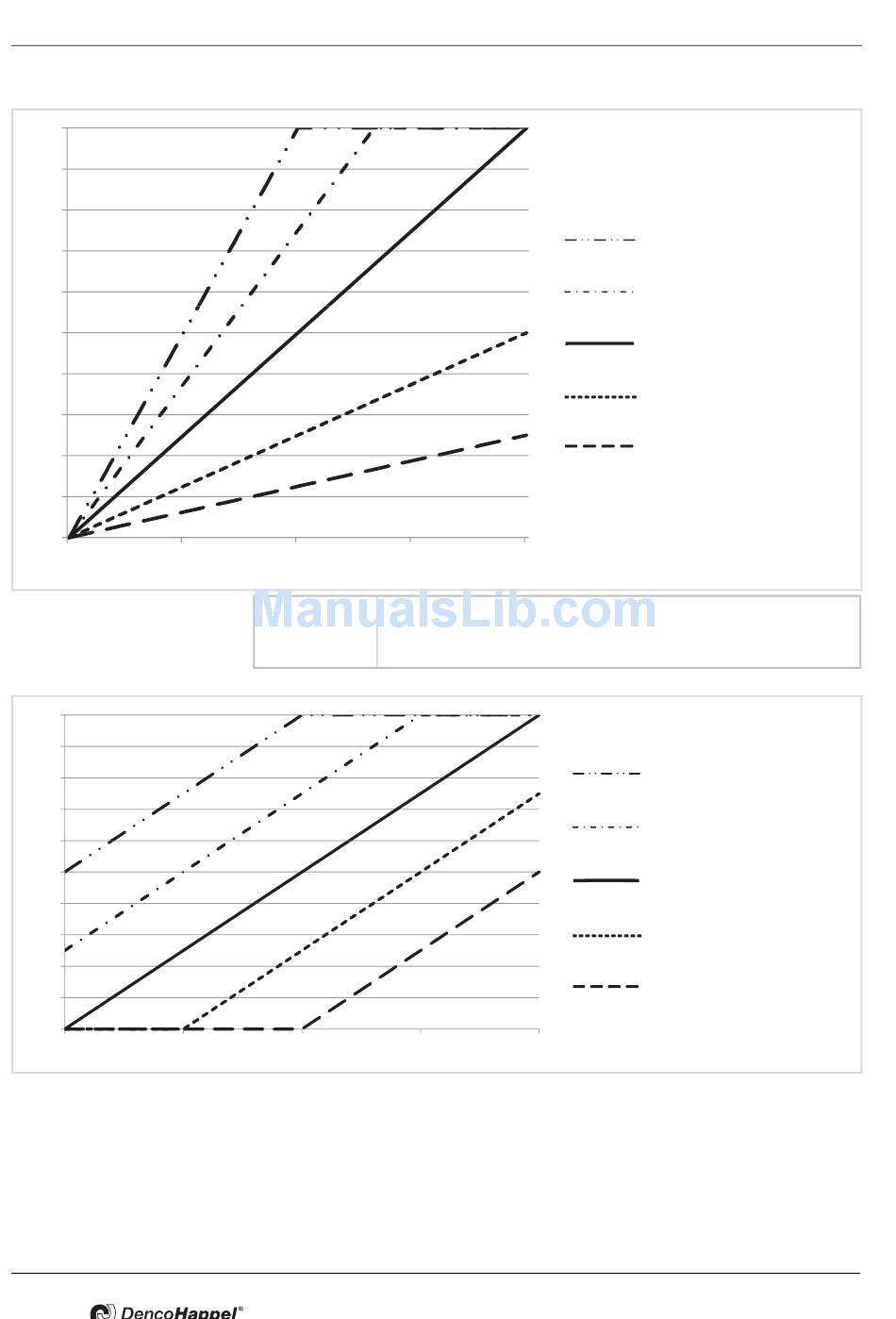

Speed of slave fan
with factor 2
Speed of slave fan
with factor 1.5
Speed
master fan
Speed of slave fan
with factor 0.5
Speed of slave fan
with factor 0.25
100%
Speed of slave fan
with offset 50%
Speed of slave fan
with offset 25%
Speed
master fan
Speed of slave fan
with offset –25%
Speed of slave fan
with offset –50%
100%
PR-2011-0110-GB • Subject to modifications • R9-03-2016
MATRIX control panel
