MATRIX control panel
PR-2011-0110-GB • Subject to modifications • R9-03-2016
2
1
2
1
•

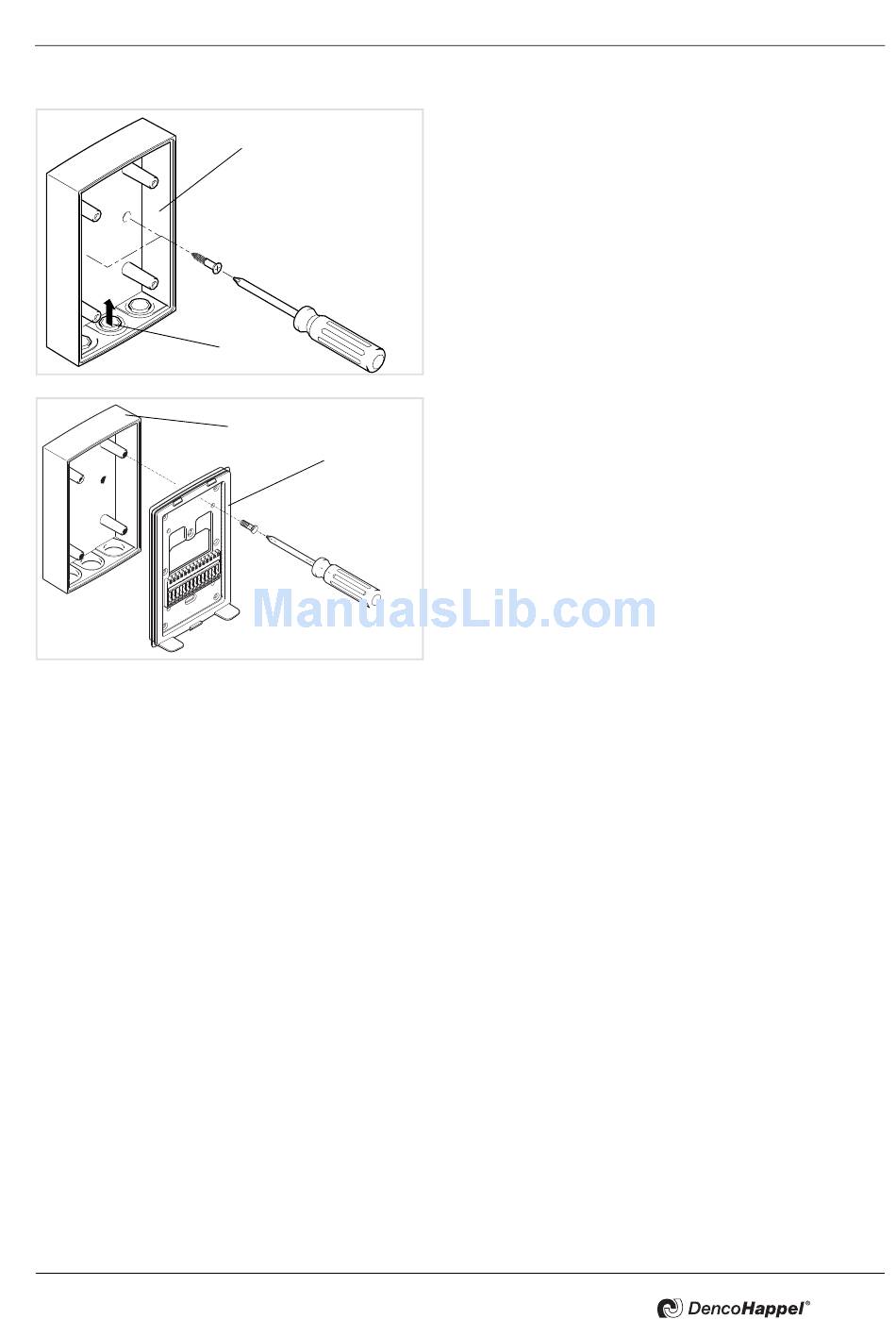

Route the wires through the membrane grommets (1)
into the surface-mounted socket (2) of the MATRIX
control panel.
•
Mount the surface-mounted socket on the wall.
•
Route the wires through the opening in the mounting
plate (1) of the MATRIX control panel.
•
Place the mounting plate (1) on the surface-mounted
socket (2) and screw the mounting plate (1) to the sur-
face-mounted socket (2).
•
Pay attention that the new gasket is sealed correctly in
order to ensure the IP54 protection type!
