Assembly and Installation
24
•

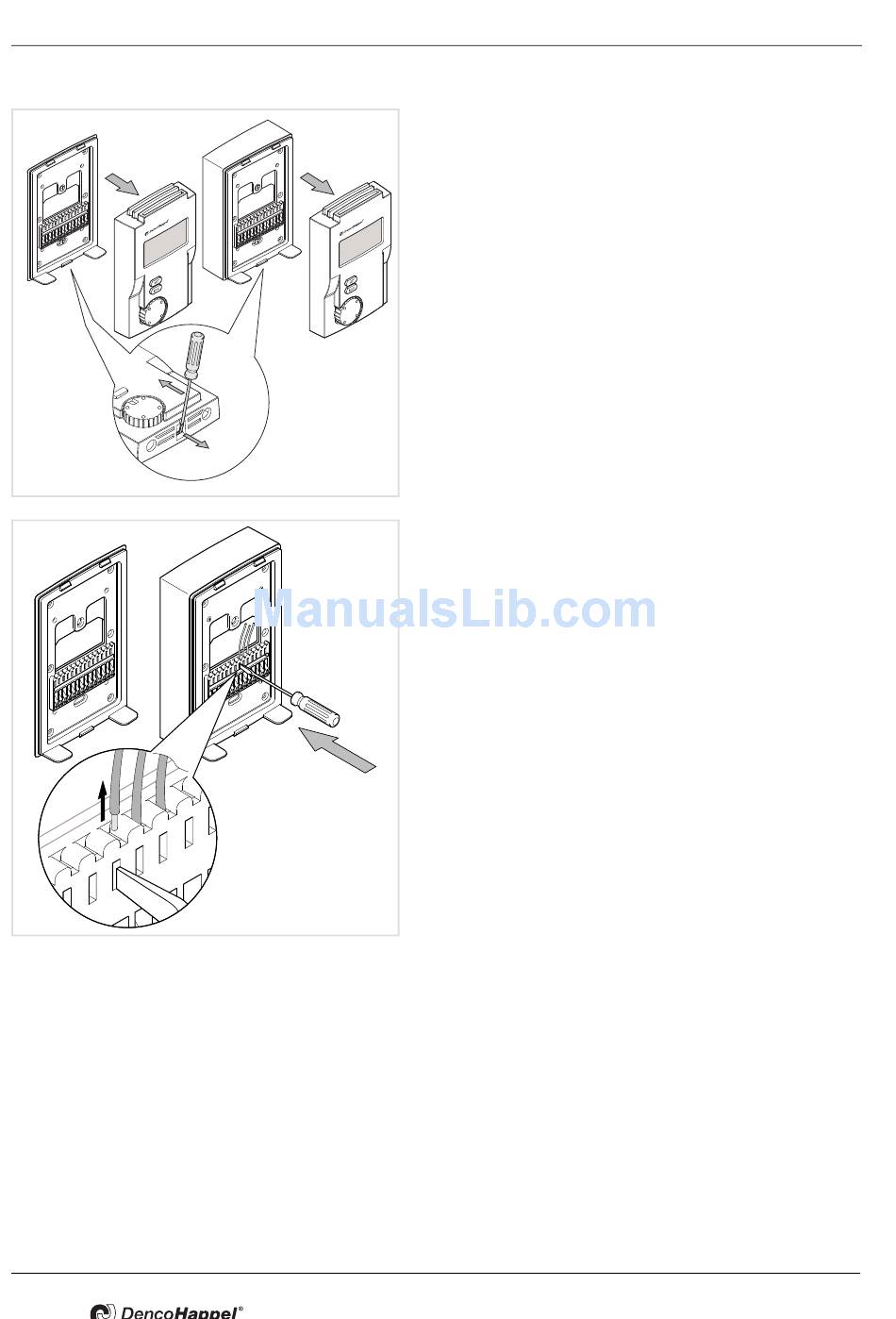

Use a screwdriver to lock out the front panel and re-
move the latter to top of the mounting plate, as shown
in the picture.
•
Press down on the relevant terminals with the screw-
driver and pull out the individual cores.
•
Loosen the mounting plate from the wall.
•
Finish dismantling the MATRIX control panel.
Additional dismantling for the IP54 casing:
•
Unscrew the mounting plate from the surface-mounted
socket.
•
Pull the cables out from the membrane grommets.
•
Loosen the surface-mounted socket from the wall.
•
Finish dismantling the MATRIX control panel.
