Assembly and Installation
5.2.2 Mounting MATRIX OP5xl (IP54) control panel
2
18
1
2
The casing of the OP5xI is suitable for installation on the wall. The wires are
routed through three membrane grommets from below.
1
1
2
3
•

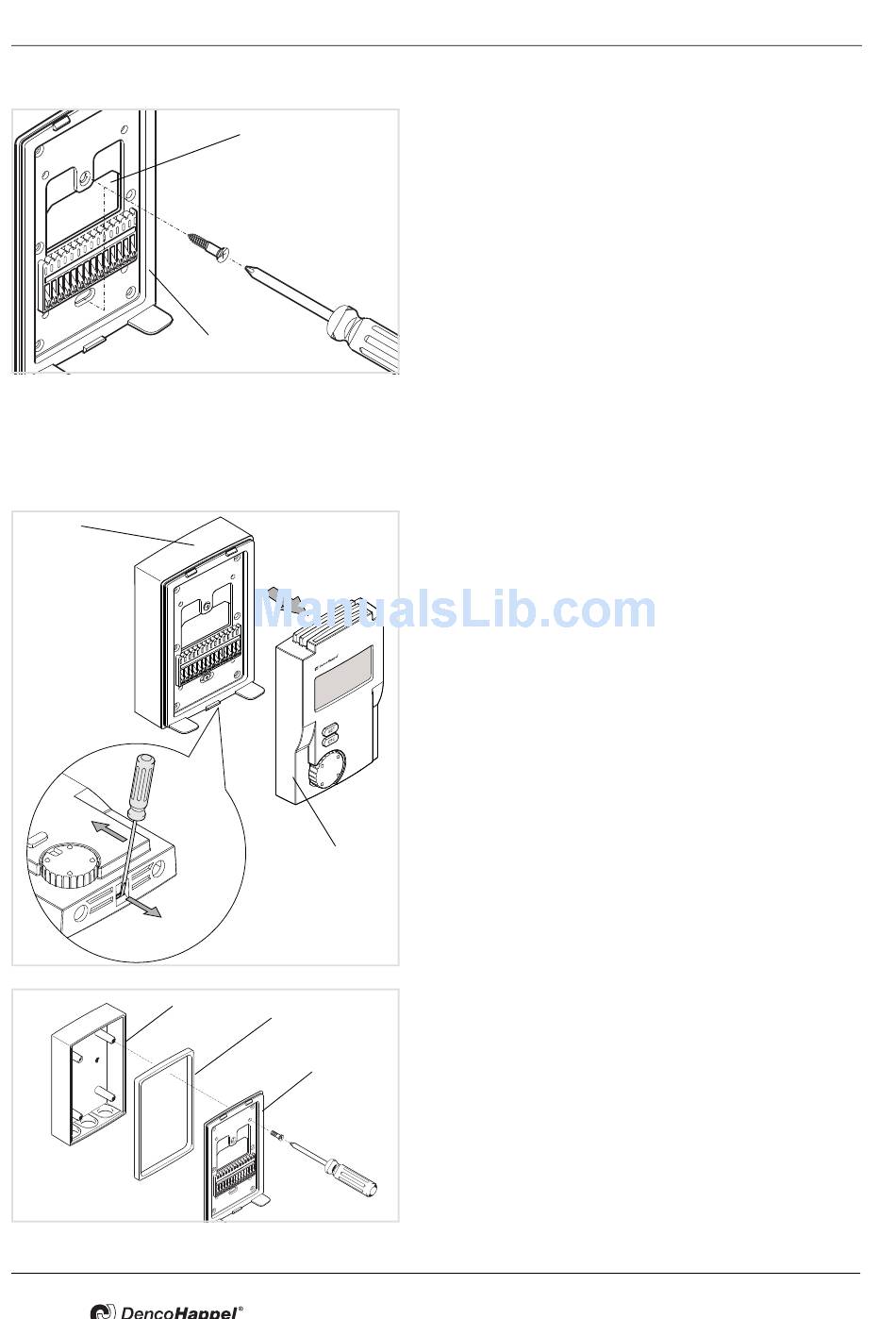

Route the wires through the opening (1) in the mount-
ing plate (2) of the MATRIX control panel.
•
Secure the mounting plate of the MATRIX control panel
on the wall or flush-mounted socket.
•
Use a screwdriver to release the front panel (1) from the
mounting plate (2) on the bottom side of the MATRIX
control panel.
Ensure that the mounting plate is not deformed.
•
If required, unscrew the mounting screws from the
mounting plate (3) on the surface-mounted socket (1).
•
Lift the mounting plate (3) away from the surface-
mounted socket (1).
•
Adhere a gasket (2) on the bottom part of the mounting
plate (3).
