MATRIX control panel

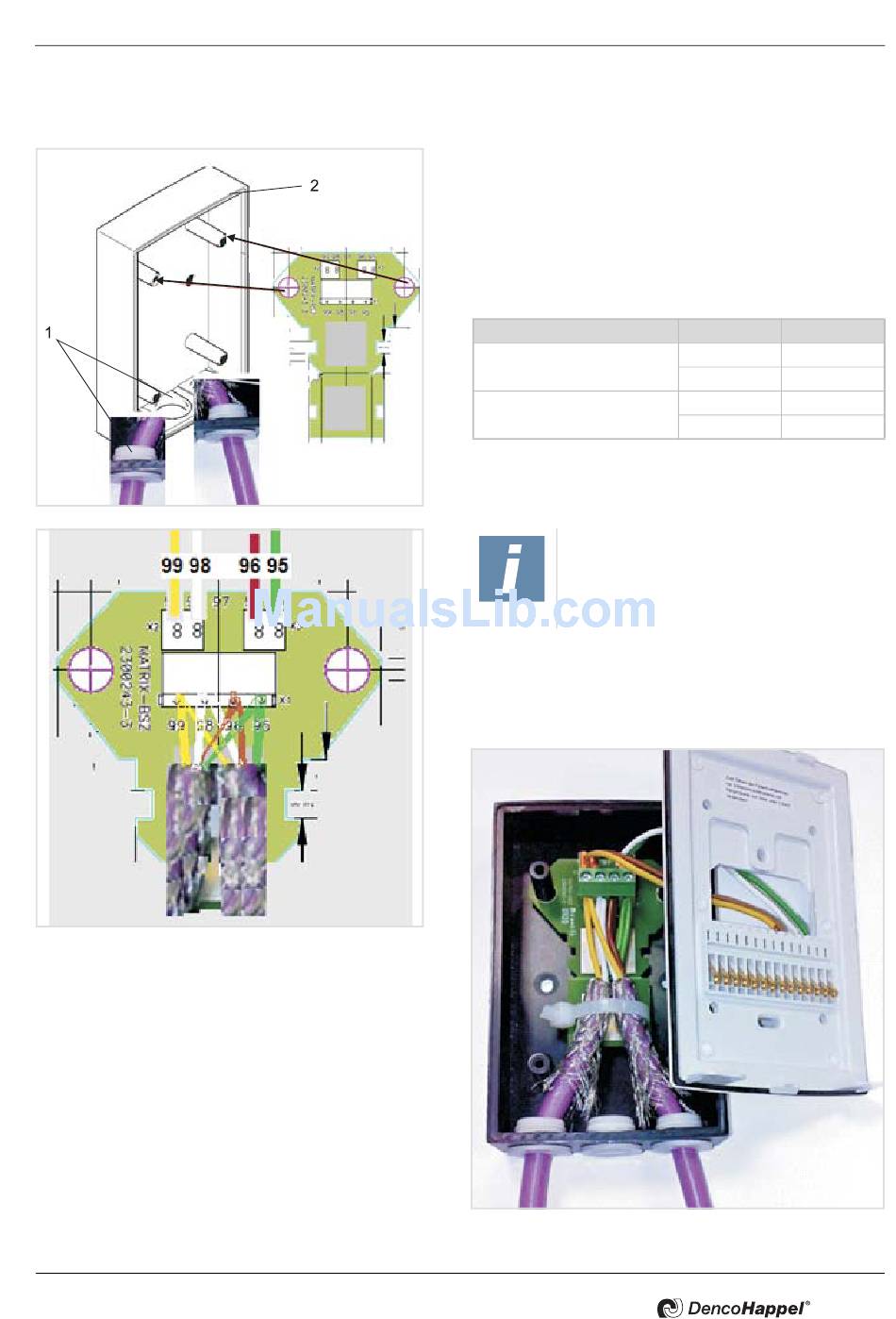

5.3.2 Mounting MATRIX BSZ in the surface-mounted casing of the MATRIX OP5X I (IP54) control panel
PR-2011-0110-GB • Subject to modifications • R9-03-2016
•
Integrate the circuit board in the surface-mounted sock-
et of the MATRIX control panel.
•
Route the wires through the membrane grommets (1)
of the flush-mounted socket (2) and connect the bus
cable (refer to 5.5 Cable recommendations MA-
TRIX.Net) as follows:
Supply voltage
MATRIX.Net
Tab. 5-2: Terminal designation
NOTE!
A cable strap is used to provide cable
strain relief and shielding.
•
Use the supplied cable to connect the circuit board with
the terminals of the mounting plate of the MATRIX
OP5XC control panel, as illustrated in Table 5-2 on
page 21.
Assembly and Installation
Klemme Signal
95 GND
99 Vcc
96 Low
98 High
