MATRIX control panel
6
Commissioning and testing
6.1
Factory settings
6.2
Setting Group Address
PR-2011-0110-GB • Subject to modifications • R9-03-2016
The MATRIX control panel is preset as follows. The group addresses and the bus
termination on the can be changed as required using the relevant switches.
Group address
Bus terminating resistor
* If no network consisting of several groups is configured, this setting can be taken
over unchanged.
If a group comprising multiple units is set (refer to chapter "Network" in the oper-
ation manual of the air treatment unit) use the MATRIX control panel to assign dif-
ferent group addresses. The MATRIX control panels are assigned to the relevant
units through these addresses.
DAMAGE TO THE UNIT!
Disconnect all electric power before changing the group address!
IMPORTANT NOTICE!
The group address of the MATRIX control panel and the addresses of the rel-
evant units or controller must correspond with each other!
0*
Both DIP switches: closed (ON)
•

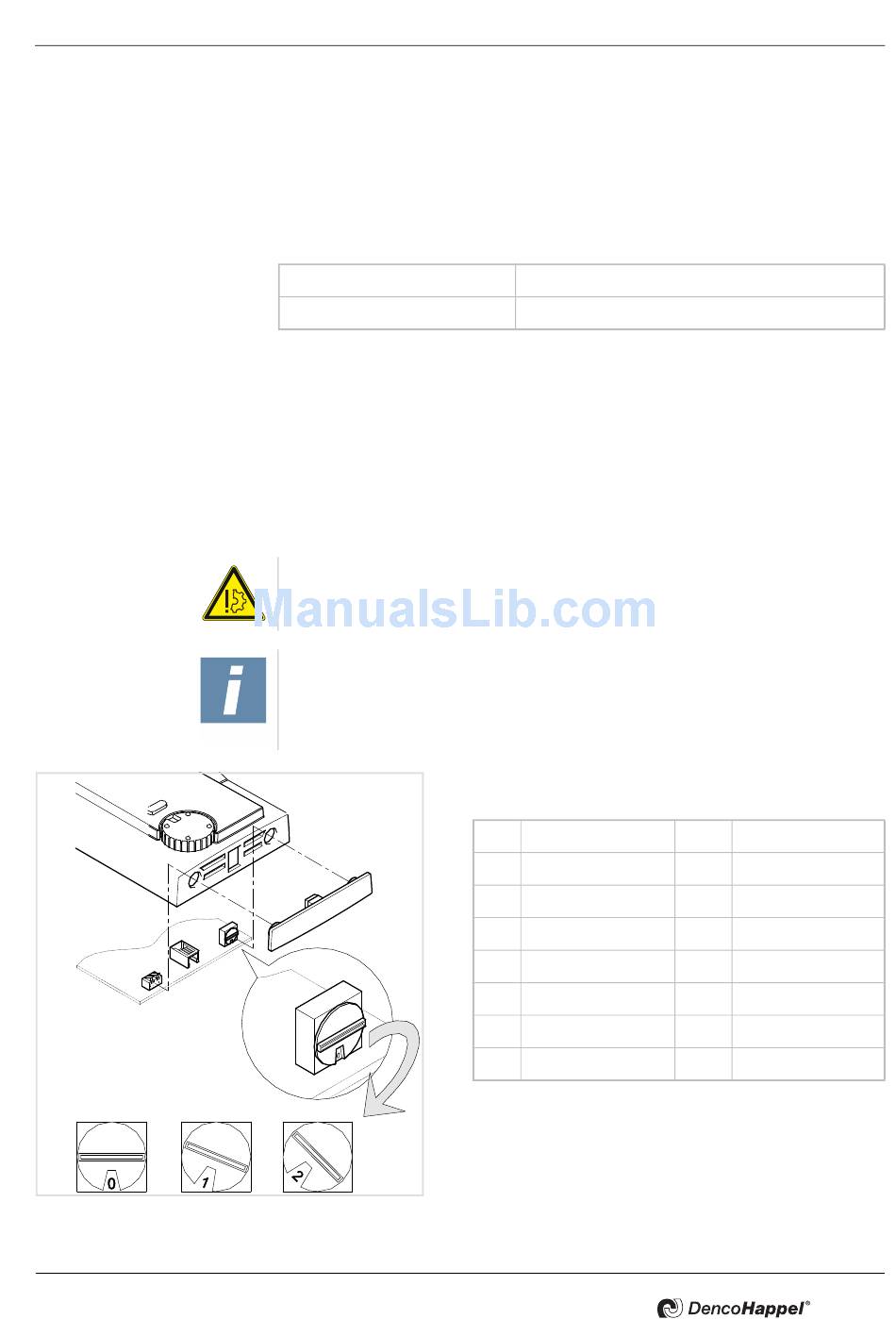

Use the group address switch to assign the group
membership.
0
Group 0
1
Group 1
2
Group 2
3
Group 3
4
Group 4
5
Group 5
6
Group 6
7
Group 7
Commissioning and testing
8
Group 8
9
Group 9
A
Group 10
B
Group 11
C
Group 12
D
Group 13
E
Group 14
F
Group 15
25
