Assembly and Installation
5.3

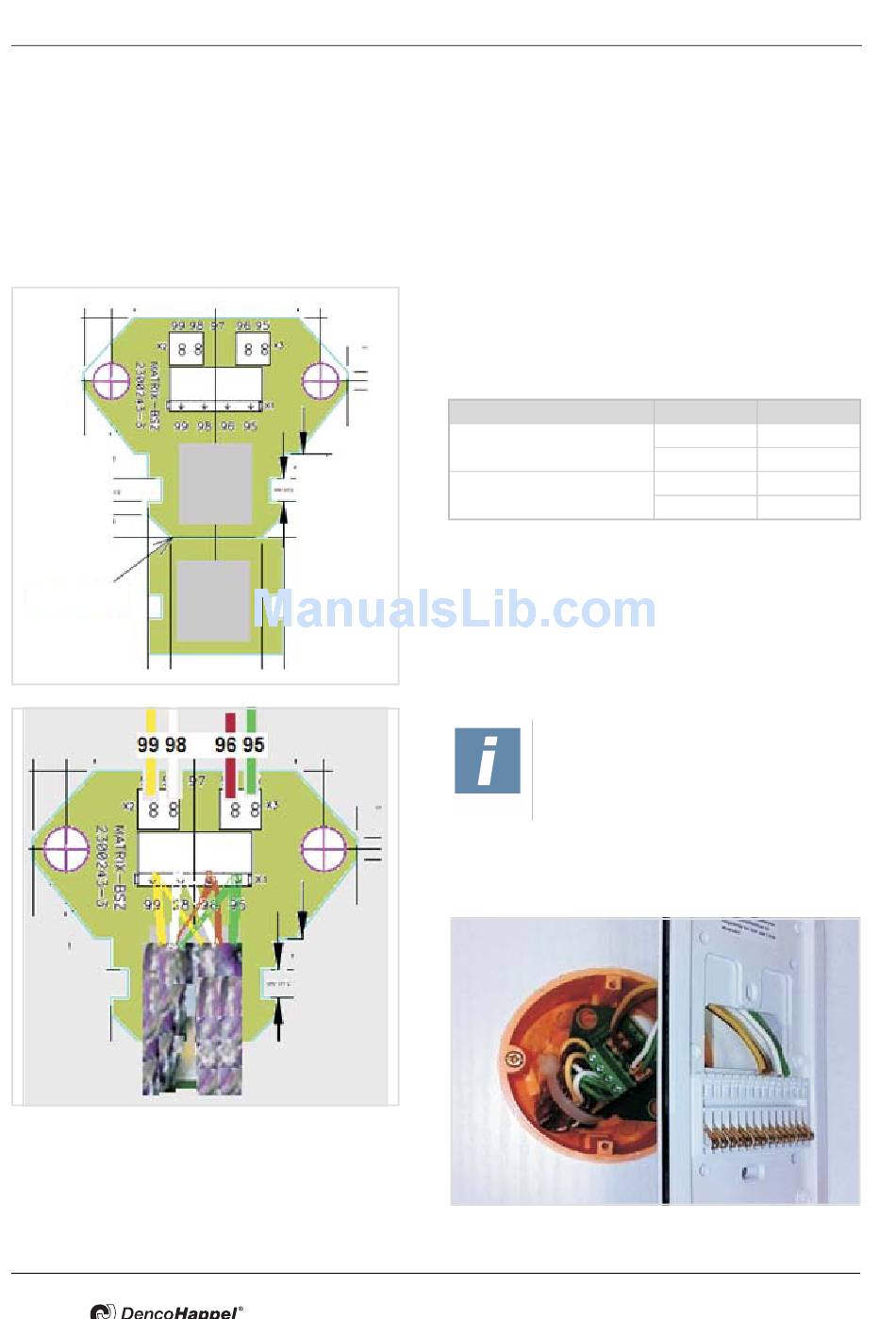

Integration of MATRIX BSZ circuit board

5.3.1 Mounting MATRIX BSZ in the flush-mounted socket
Groove
20
The MATRIX BSZ circuit board is an intermediate terminal to be used if two wires
are connected using one terminal in MATRIX OP5x (IP20 and IP54) control pan-
els (necessary for loop-through of the network).
•
Use the groove to break off the bottom part of the circuit
board and place it in the flush-mounted socket.
•
Route the wires through the flush-mounted socket and
connect the bus cable (refer to 5.5 Cable recommenda-
tions MATRIX.Net) as follows:
Supply voltage
MATRIX.Net
Tab. 5-1: Terminal designation
NOTE!
A cable strap is used to provide cable
strain relief and shielding.
•
Use the supplied cable to connect the circuit board with
the terminals of the mounting plate of the MATRIX
OP5XC control panel, as illustrated in Table 5-1 on
page 20.
PR-2011-0110-GB • Subject to modifications • R9-03-2016
MATRIX control panel
Klemme Signal
95 GND
99 Vcc
96 Low
98 High
