Backside; Installation; Set Up And Operation - SHOWTEC Data Flash Strobe Manual

Data Flash Strobe

Backside

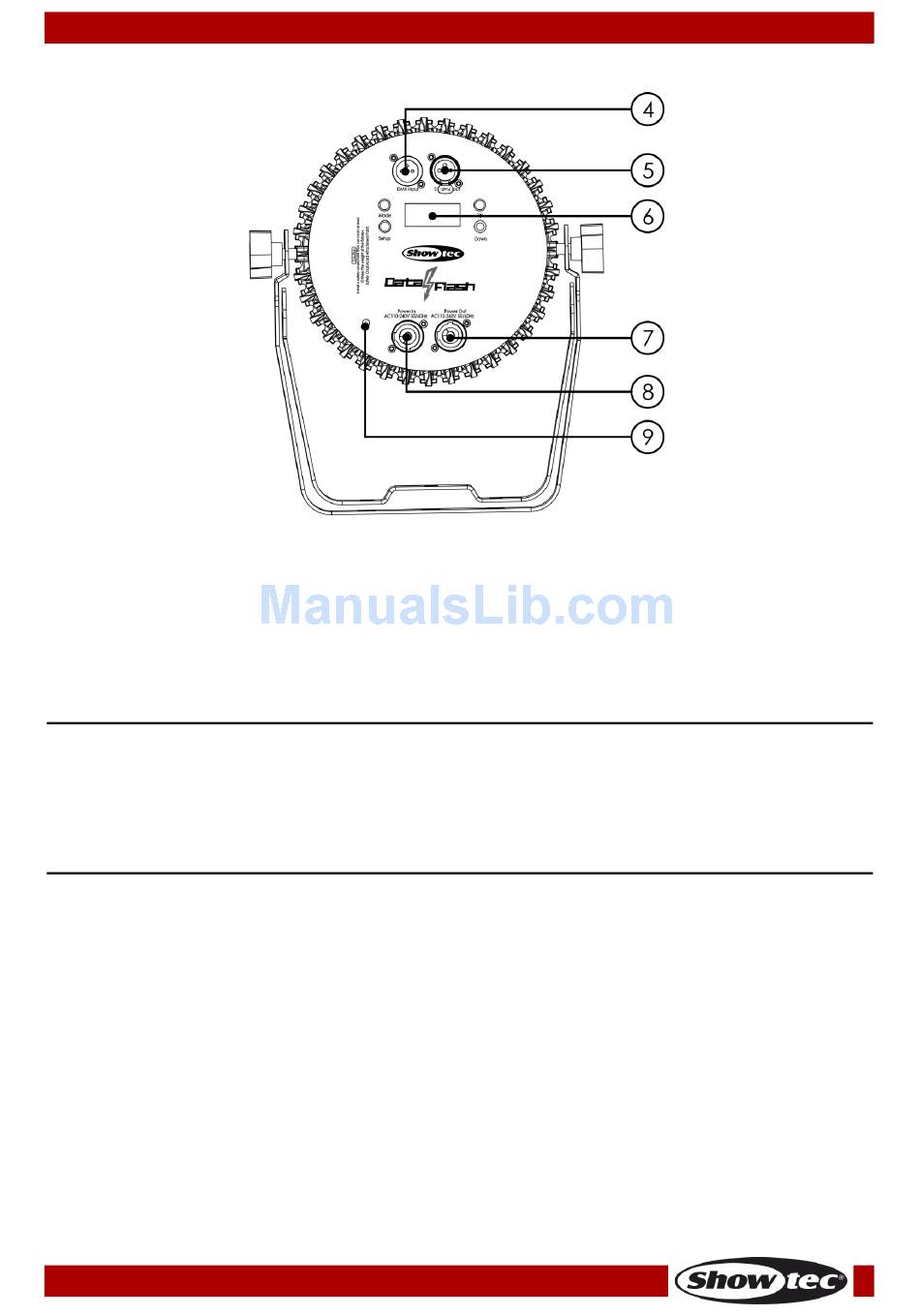

Fig. 02
04) 3-pin DMX signal connector IN
05) 3-pin DMX signal connector OUT
06) LCD display + menu buttons
07) 110-240V AC Pro power connector OUT (Gray)
08) 110-240V AC Pro power connector IN (Blue)
09) Ground/earth connection

Installation

Remove all packing materials from the Data Flash Strobe. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
Ordercode: 40296
