Summary of Contents for SHOWTEC Festoonlight Q4 String

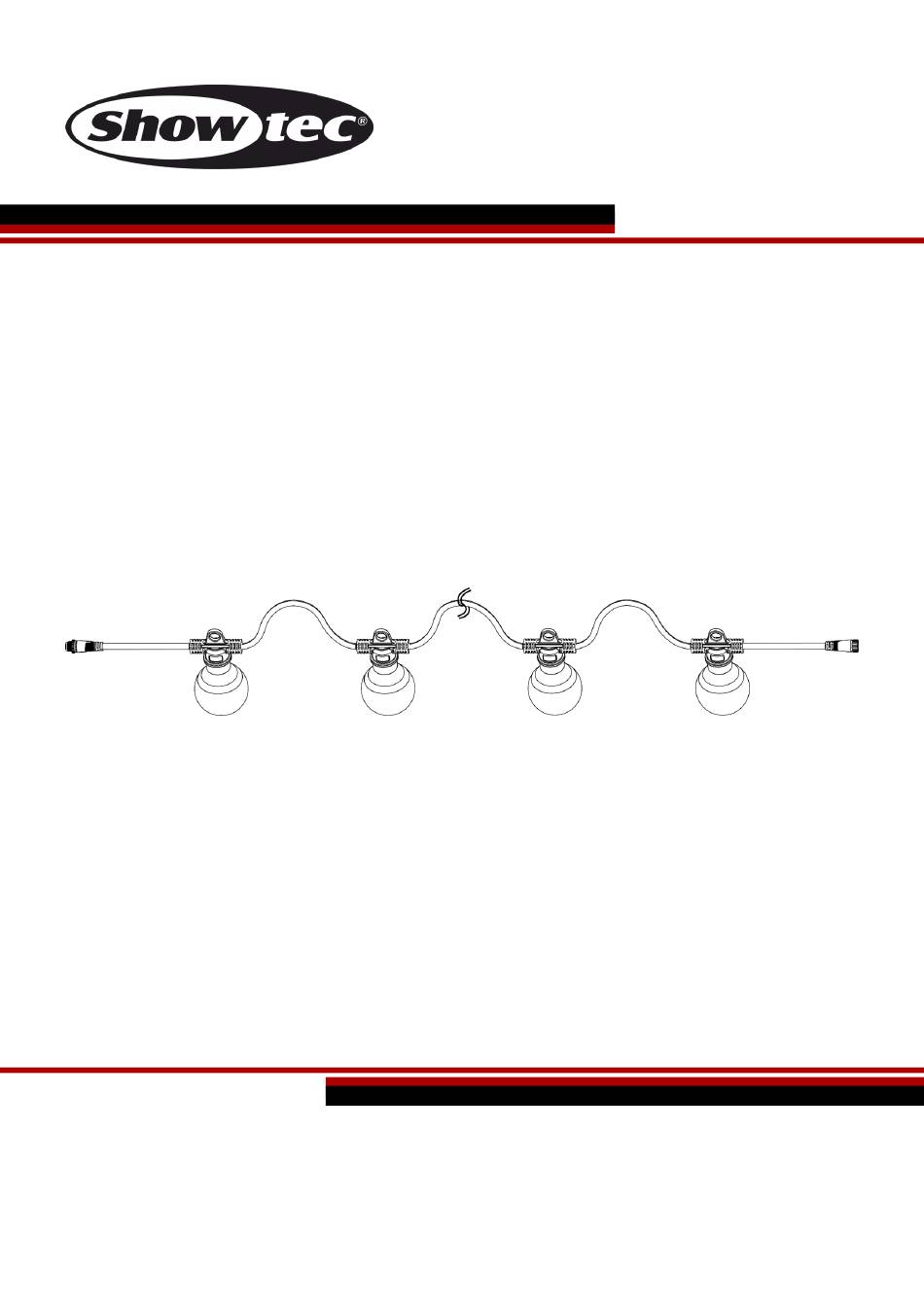

- Page 1 MANUAL ENGLISH Festoonlight Q4 String Order code: 41751 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Festoonlight Q4 String Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the Device ..............................6 Installation ................................... 7 Setup with 1–3 Festoonlight Q4 Strings ........................7 Setup with 4–6 Festoonlight Q4 Strings ........................ -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture will be returned in the original factory box and packing. Your shipment includes: ● 1 x Showtec Festoonlight Q4 String ● 2 x end caps ●... -
Page 4: Operating Determinations
Make sure that the cable is never crimped or damaged. Check the cord before each use. ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Rigging
Improper installation can cause serious injuries and/or damage of property! The Festoonlight Q4 String can be installed in various ways, however always make sure that the bulbs hang at 90° angle to the ground. This will prevent rain or moisture from collecting in the lamp holders. -
Page 6: Return Procedure
Festoonlight Q4 String Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
Description of the Device Features The Festoonlight Q4 String features 20 pixels that can be controlled individually with the Festoonlight Q4 Controller. Up to 3 Festoonlight Q4 Strings can be connected to one controller. To extend the setup to a maximum of 6 strings, you will need the optional Festoonlight Q4 Booster. -
Page 8: Installation
Always terminate the open end of the Festoonlight Q4 String when installed outdoors. Setup with 1–3 Festoonlight Q4 Strings 01) Connect the Festoonlight Q4 String to the dedicated connector on the Festoonlight Q4 Controller. 02) Use the supplied extension cord, if necessary. -
Page 9: Setup With 4-6 Festoonlight Q4 Strings
Festoonlight Q4 String Setup with 4–6 Festoonlight Q4 Strings 01) Follow steps 1–3 from Setup with 1–3 Festoonlight Q4 Strings to connect the first 3 strings. 02) Connect the splitter cable of the Festoonlight Q4 Booster to the 3 string. -
Page 10: Setup And Operation
The Festoonlight Q4 String is not intended for permanent operation. Maintenance Inspect all parts and mounting points of the Festoonlight Q4 String before use. Do not use if parts are weakened, discolored, brittle, or otherwise degraded, damaged, or worn. The Festoonlight Q4 String requires almost no maintenance. However, you should keep the unit clean. -
Page 11: Product Specifications
Festoonlight Q4 String Product Specifications Model: Showtec Festoonlight Q4 String Light source: 5050 SMD RGBW LED Power consumption: 35 W Refresh rate: 1,9 KHz Bulbs per string: 20 pcs Bulb size: Ø 80 mm String length: 15 m Distance between bulbs:... - Page 12 ©2019 Showtec...
