- Page 1 USER MANUAL ENGLISH Solar FL-280 Product code: 46200 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Solar FL-280 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Solar FL-280 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Solar FL-280 Preventive Maintenance ..........................26 Basic Cleaning Instructions ........................27 Corrective Maintenance ..........................27 Deinstallation, Transportation and Storage ....................28 Instructions for Deinstallation ..........................28 Instructions for Transportation ........................28 Storage ................................28 10. Disposal ................................28 11. Approval ................................28 Product code: 46200...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Solar FL-280, barndoor not included ● Schuko to Powercon power cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
Solar FL-280 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Solar FL-280 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 8 Solar FL-280 WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling. WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy.
-
Page 9: Requirements For The User
Solar FL-280 ● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation. ●... -
Page 10: Description Of The Device

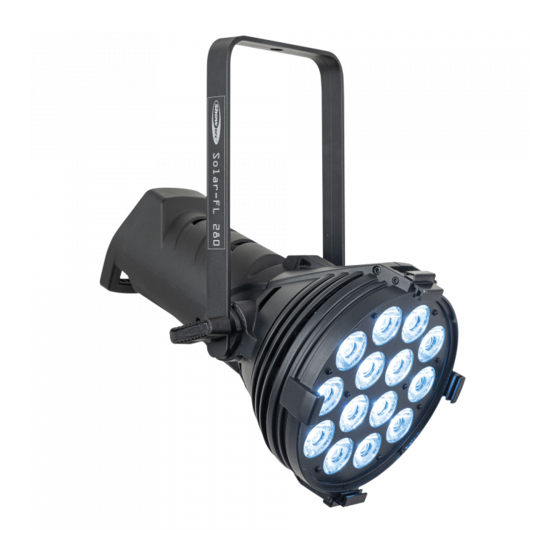

Solar FL-280 Description of the Device The Solar FL-280 is a LED fixture with an impressive light output in a compact but sturdy housing. Front View 01) Mounting bracket 02) Adjustment screw 03) 14x 20W White CREE LED 04) Barndoor not included Fig. -
Page 11: Product Specifications
Solar FL-280 Product Specifications Model: Solar FL-280 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 280 W Physical: Dimensions: 468 x 262 x 265 mm (L x W x H) Weight: 7 kg Optics: Light source: 14x 20W White CREE LED Color temperature: 7500 K Lux @2m... -
Page 12: Dimensions
Solar FL-280 Dimensions Fig. 04 Fig. 05 Product code: 46200... -
Page 13: Installation
Solar FL-280 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Personal Protective Equipment During installation and rigging wear personal protective equipment in compliance with the national and site-specific regulations. -
Page 14: Angle Adjustment
Solar FL-280 Fig. 06 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (03). 01) Turn the adjustment screws (03) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 07). 03) Turn the adjustment screws (03) clockwise to tighten them. -
Page 15: Connecting To Power Supply
Solar FL-280 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 16: Setup
Solar FL-280 Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Solar FL-280 is not connected to a controller or to other devices, it functions as a stand-alone device. -
Page 17: Dmx Cables
Solar FL-280 DMX Cables Shielded twisted-pair cables with 5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 18: Dmx Linking
Solar FL-280 DMX Linking To connect multiple devices on one DMX data link, follow the steps below: Use a 3-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the first device. 02) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a 3-pin DMX cable. -
Page 19: Operation
Solar FL-280 Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as a light effect. It is suitable only for indoor installation. This device is not suitable for households and for general lighting. -
Page 20: Control Panel
Solar FL-280 Control Panel A) LCD display UP button C) DOWN button D) MENU button ENTER button Fig. 12 ● Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 21: Menu Overview
Solar FL-280 Menu Overview Product code: 46200... -
Page 22: Main Menu Options
Solar FL-280 Main Menu Options The main menu has the following options: DMX address Info Settings Manual control DMX channel mode Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. 03) Press the MENU button to return to the previous screen. -
Page 23: Menu Settings
Solar FL-280 Menu Settings With this menu you can change the device’s settings. 01) While in the main menu, press the UP/DOWN buttons to choose SETTING. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 4 submenus: If Fan Mode Dimcurve Factory... -
Page 24: Factory Reset
Solar FL-280 Factory Reset In this menu you can restore the default factory settings. 01) Press the ENTER button to open menu Factory. 02) Press the UP/DOWN buttons to select Yes or No. 03) If you choose Yes and confirm it with the ENTER button, the device will be reset to its factory default settings. -
Page 25: Dmx Mode
Solar FL-280 DMX Mode With this menu you can manually control the DMX Mode. 01) While in the main menu, press the UP/DOWN buttons to choose DMX MODE. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to select the desired DMX channel mode. There are 3 options available: If 4 channels 2 channels 1 channel... -
Page 26: Troubleshooting
Solar FL-280 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 27: Maintenance
Solar FL-280 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. -
Page 28: Basic Cleaning Instructions
Solar FL-280 Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 29: Deinstallation, Transportation And Storage
Solar FL-280 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 30 Solar FL-280 Product code: 46200...
- Page 31 Solar FL-280 Product code: 46200...
- Page 32 ©2020 Showtec...
