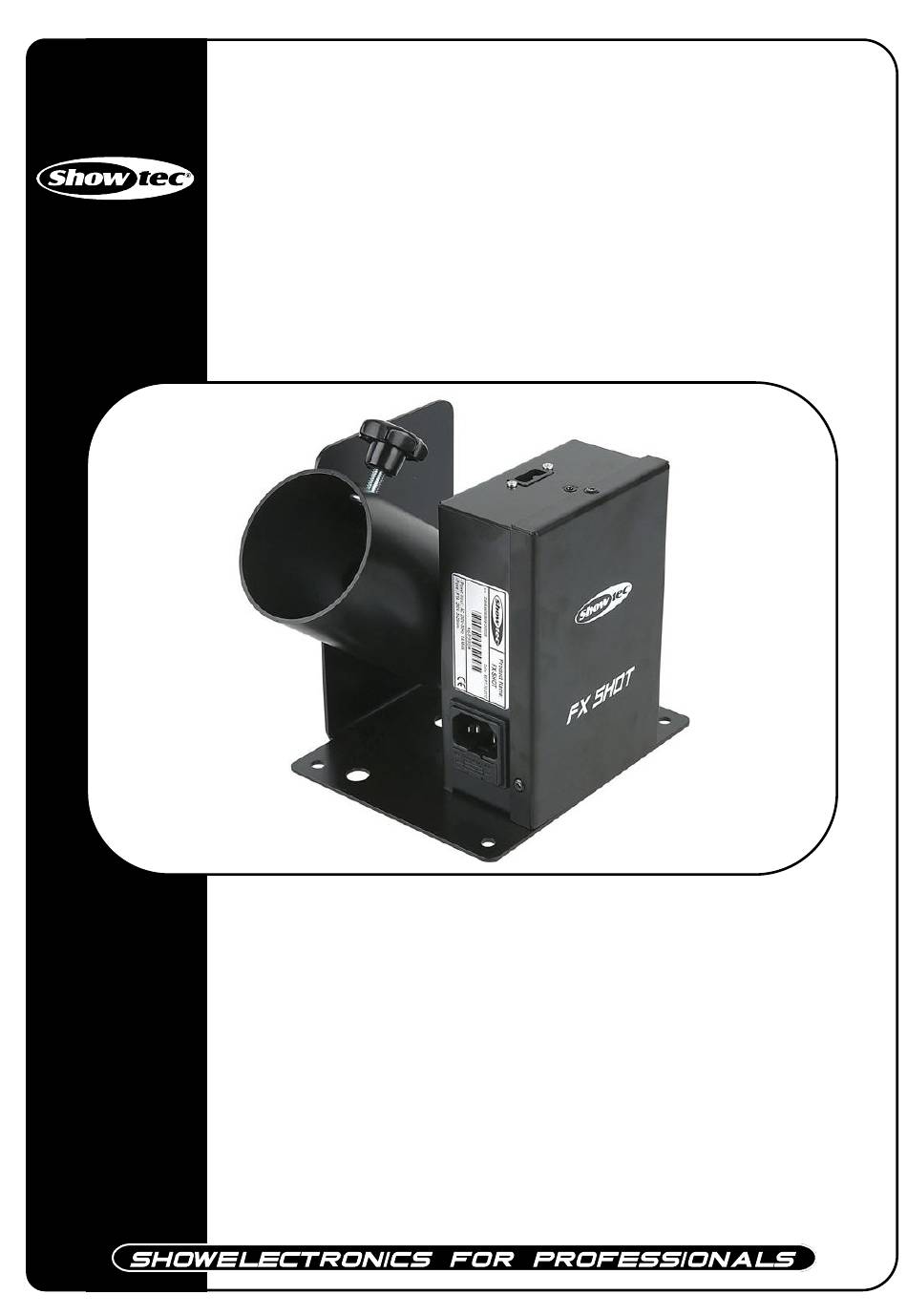

- Page 1 FX Shot ORDERCODE 60908 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec FX Shot ™ Product Guide Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Accessories ..................................7 Installation ................................... -
Page 4: Warning
This device contains no user-serviceable parts. Refer servicing to qualified technicians only. You, your employees and others who use or come into contact with the FX Shot must be aware how the machine should be handled. This includes the proper use, maintenance and repair of the machine as described in this manual. - Page 5 Do not touch the FX Shot while working or if it is connected to the mains power. Even if the FX Shot is not in operation, the electric cannons can still be filled and cause harm.
-
Page 6: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the FX Shot is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the FX Shot, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
• Operation: 230V on/off or DMX controlled by using a Multidim, Multiswitch or Relay Pack (see p.9+11) • FX Shot will be activated by a 230V power source and can therefore be operated by a 230V power switch like the Showtec DJ-Switch (50363) see page 11 •... -
Page 9: Accessories
20 kg, TÜV 28 mm or 4 FX Shots The FX Shot only works with approved electric confetti and streamer cannons. The FX Shot is not suitable for other than the 40 and 80mm cannons shown below. 40cm Electric cannon 80cm Electric cannon... -
Page 10: Installation
1) Place the FX Shot on a flat, stable surface and secure it. It is possible to install 1,2, or 4 FX Shots on the base plate. 2) If the FX Shot is mounted onto a truss system, install 2 certified truss clamps (70332) at the bottom of the FX Shot. - Page 11 8) Once the electric cannon is placed inside the FX Shot, it can be set to the correct shooting direction. On the side of the FX Shot is a inclination screw, which can be turned to position the holder in the right direction.
-
Page 12: Testing
10) If you want to operate one shooter via DMX, use a Single MKII (50396) to operate the FX Shot. Make sure you always have an eye on the FX Shot, when you are operating the Multidim, Multiswitch, Relay Pack or Single MKII. -
Page 13: Disconnection
When the FX Shot is connected to the mains power supply, the connected electrical cannon will shoot. Make sure you only shoot the FX Shot when no persons, animals or objects are in the path of the cannon. SETUP 1... -
Page 14: Maintenance
3) If all of the above appears to be O.K., plug the unit in again. 4) If you are unable to determine the cause of the problem, do not open the FX Shot, as this may damage the unit and the warranty will become void. -
Page 15: Product Specification
• Operation: 230V on/off or DMX controlled by using a Multidim, Multiswitch or Relay Pack (see p.9+11) • FX Shot will be activated by a 230V power source and can therefore be operated by a 230V power switch like the Showtec DJ-Switch (50363) see page 11 •...
