- Page 1 MANUAL ENGLISH FX Drop Order code: 61040 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Front View ..................................6 Back View ..................................7 Installation ................................... 8 Multiple Fixtures Power Linking ........................... 8 Setup with One FX Drop .............................. 8 Setup with Multiple FX Drops ............................9 Suspending Objects ..............................10 Operation ..................................11 Without a Switch Pack ...............................11 With a Switch Pack ..............................11... -
Page 3: Warning
Your shipment includes: ● Showtec FX Drop ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... -
Page 4: Operating Determinations
For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit running unattended. ● The user is responsible for correct positioning and operating of the FX Drop. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ●... -
Page 5: Rigging
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or safety cable, see Fig. 01. ● When rigging, derigging or servicing the FX Drop, always make sure, that the area under the installation place is blocked and staying in the area is forbidden. Fig. 01... -
Page 6: Return Procedure
FX Drop Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

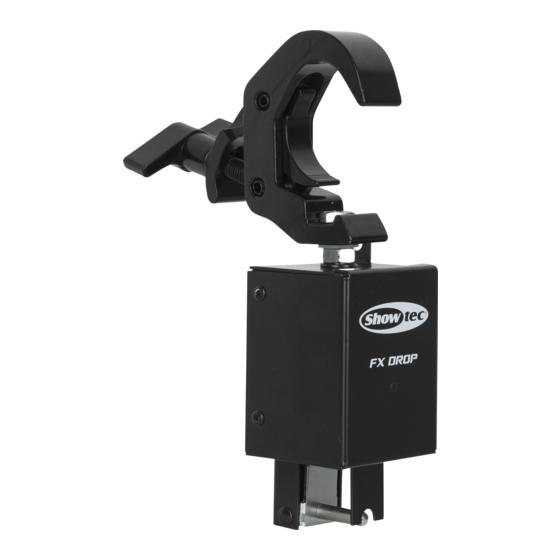

Description of the Device Features The Showtec FX Drop is a plug-and-play curtain drop tool. Once the FX Drop is powered, it will release the hook. The maximum load capacity is 20 kg. The FX Drop features powerCON in- and outputs which makes it easy to daisy-chain multiple FX Drops in a single power line. -
Page 8: Back View
– Showtec 50 mm Q-trigger coupler, SWL: 100 kg 70315 – Quick Trigger Slimline Basic 90601 – Showtec power cable Pro Power connector to Schuko, 3 m, 3 x 1,5 mm 90527 – Showtec power cable Neutrik powerCON to Schuko, 1,5 m, 3 x 2,5 mm 90812 –... -
Page 9: Installation
Maximum recommended number of fixtures on a power link @ 230 V: 25 fixtures Setup with One FX Drop 01) Fasten the FX Drop to a firm trussing using a clamp. See Rigging on page 4. Make sure the FX drop is mounted vertically under the truss construction. -
Page 10: Setup With Multiple Fx Drops
01) Determine the position of the first and the last FX Drops based on the width of the cloth/object that needs to be suspended. 02) Fasten the first FX Drop to a firm trussing using a clamp. See Rigging on page 4. Make sure the FX drop is mounted vertically under the truss construction. -
Page 11: Suspending Objects
Suspending Objects To suspend an object on the FX Drop follow the steps below: 01) Push the release pin (06) on the backside of the FX Drop upwards to release the drop hook (03) as shown on Fig. 05. 02) Hang the object by sliding the grommet onto the drop hook (03) as shown on Fig. 06. -
Page 12: Operation
Without a Switch Pack If you are not using a switch pack to control the FX Drop, you can connect the FX Drop directly to a power outlet using a power cable. The release system will be automatically activated when the FX Drop is powered. -
Page 13: Product Specifications
FX Drop Product Specifications Model: Showtec FX Drop Power input: 230 V AC, 50 Hz Power output: 230 V AC, 50 Hz Power consumption: 30 W Power connections: PowerCON IN/OUT connectors Load capacity: 20 kg Rigging: M10 screw thread Dimensions:... -
Page 14: Dimensions
FX Drop Dimensions Order code: 61040... - Page 15 FX Drop Order code: 61040...
- Page 16 ©2019 Showtec...
