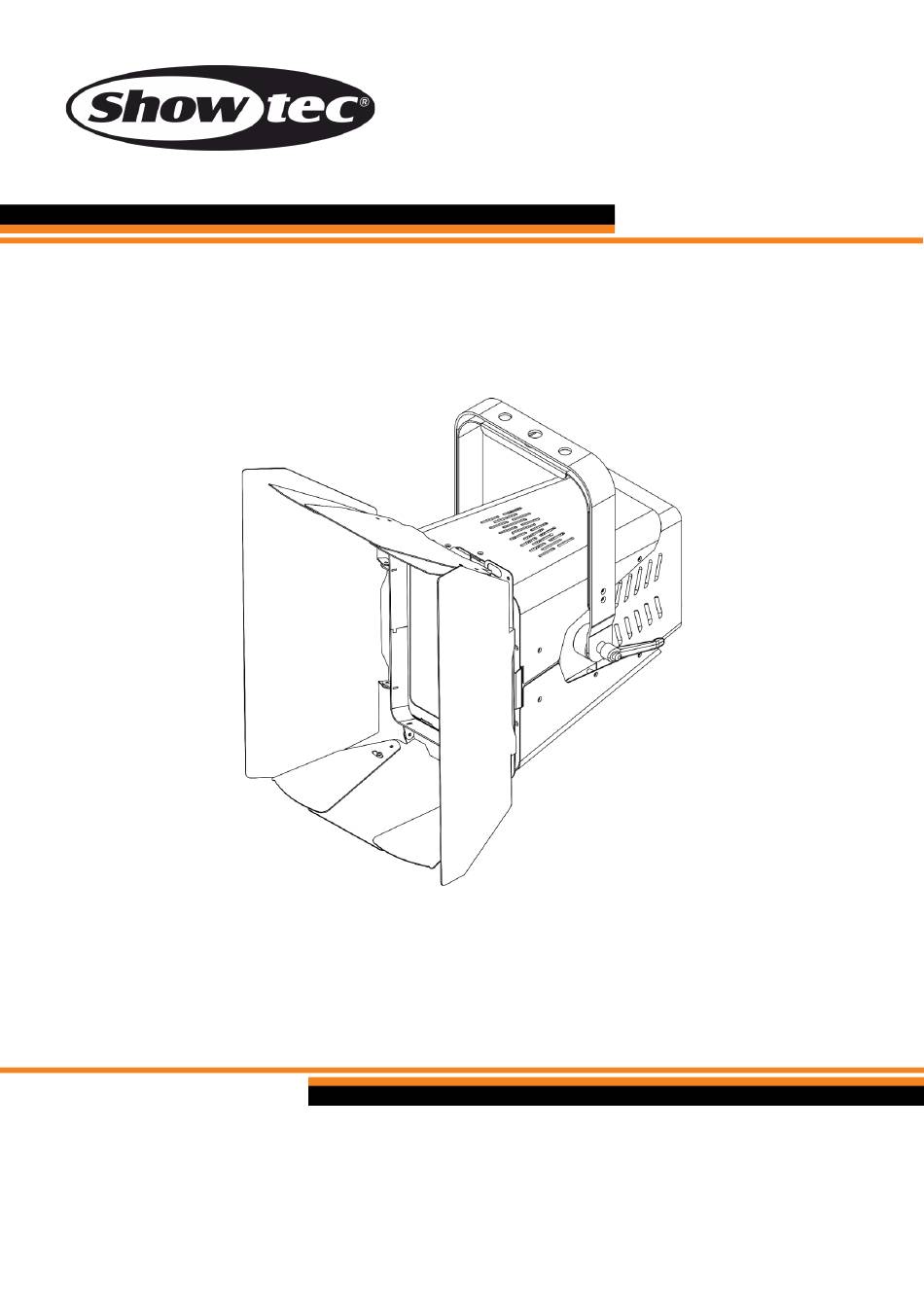

USER MANUAL
ENGLISH
ACT Flood 80 RGBW
V2
Product code: 34040
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACT Flood 80 RGBW and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC ACT Flood 80 RGBW

  • Page 1 USER MANUAL ENGLISH ACT Flood 80 RGBW Product code: 34040 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2 ACT Flood 80 RGBW Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
  • Page 3: Table Of Contents

    ACT Flood 80 RGBW Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................5 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................
  • Page 4 ACT Flood 80 RGBW Fixture Information ............................27 Special Functions ............................28 Manual Operation ............................28 DMX Channels ..............................29 Troubleshooting ..............................31 Maintenance ..............................32 Safety Instructions for Maintenance ......................32 Preventive Maintenance ..........................32 Basic Cleaning Instructions ........................32 Corrective Maintenance ..........................33 Replacing the Fuse .............................33 Deinstallation, Transportation and Storage ....................
  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec ACT Flood 80 RGBW ● Schuko to pro-power cable (1,5 m) ● Barndoor ●...
  • Page 6: Text Conventions

    ACT Flood 80 RGBW Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons” ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2.
  • Page 7: Safety

    ACT Flood 80 RGBW Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions...
  • Page 8 ACT Flood 80 RGBW WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
  • Page 9: Requirements For The User

    ACT Flood 80 RGBW Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged.
  • Page 10: Description Of The Device

    ACT Flood 80 RGBW Description of the Device The Showtec ACT Flood 80 RGBW is a compact, yet powerful floodlight for indoor installation in theatres with an asymmetric high-grade reflector with a beam angle of 90° by 105°. The device is delivered with an 8-leaf barndoor.
  • Page 11: Barndoor

    ACT Flood 80 RGBW Barndoor 15) Safety eye (barndoor) Fig. 04 Product code: 34040...
  • Page 12: Product Specifications

    ACT Flood 80 RGBW Product Specifications Model: ACT Flood 80 RGBW Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 85 W Fuse: T2 AL, 250 V Physical: Dimensions: 280 x 255 x 315 mm (L x W x H) (without the barndoor)
  • Page 13: Dimensions

    ACT Flood 80 RGBW Dimensions Fig. 05 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 14: Rigging

    ACT Flood 80 RGBW Rigging The device can be mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging.
  • Page 15: Barndoor Installation

    Fig. 07 Barndoor Installation The ACT Flood 80 RGBW is delivered with a barndoor. To install the barndoor, follow the steps below: 01) Lift the color frame clip (05) and flip it backwards (see Fig. 08). 02) Insert the barndoor into the color frame holders (04) (see Fig. 09).
  • Page 16: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 12 devices ACT Flood 80 RGBW ● at 200–240 V: 18 devices ACT Flood 80 RGBW Product code: 34040...
  • Page 17: Setup

    Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the ACT Flood 80 RGBW is not connected to a controller or to other devices, it functions as a stand- alone device. It can be operated manually via the control panel and via the manual controls.
  • Page 18: Dmx Cables

    ACT Flood 80 RGBW DMX Cables Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network.
  • Page 19: Dmx Linking

    04) Continue assigning the starting addresses of the remaining devices by adding each time 11 to the previous number. Make sure that you do not have any overlapping channels in order to control each ACT Flood 80 RGBW correctly. If two or more devices are addressed similarly, they will work similarly.
  • Page 20: Operation

    Control Modes The ACT Flood 80 RGBW can be operated with a DMX controller and as a stand-alone device. The ACT Flood 80 RGBW supports the following control modes: ●...
  • Page 21: Control Panel

    ACT Flood 80 RGBW Control Panel A) OLED display ENTER button C) DOWN button D) UP button MENU button Fig. 13 ● Use the MENU button to exit the current submenu, to return to the Main Menu and to return to the start screen.
  • Page 22: Menu Overview

    ACT Flood 80 RGBW Menu Overview Product code: 34040...
  • Page 23 ACT Flood 80 RGBW Product code: 34040...
  • Page 24: Main Menu Options

    ACT Flood 80 RGBW Main Menu Options The main menu has the following options: Press the UP/DOWN buttons to navigate through the main menu. Press the ENTER button to open the submenus. DMX Functions In this menu you can configure the DMX settings of the device.
  • Page 25: Dmx Fail

    ACT Flood 80 RGBW DMX Fail In this pop-up submenu you can determine the behavior of the device in case there is no DMX signal. 01) Press the UP/DOWN buttons to select one of the following 3 options: ● Manually Defined: The device will use the manually selected values for color and color temperature.
  • Page 26: Mode

    ACT Flood 80 RGBW ● Show Chase: Select the built-in chase. See 6.6.2.2. Show Chase for more information. Press the ENTER button to confirm your choice. Mode In this pop-up submenu menu you can select how to operate the device manually.
  • Page 27: Fixture Settings

    ACT Flood 80 RGBW Fixture Settings In this menu you can adjust the fixture settings. 01) Press the UP/DOWN buttons to select one of the following 3 options: ● Dimmer Curve: There are 4 options available: Linear, Square Law, Inverse Square Law and S-Curve ●...
  • Page 28: Fixture Test

    ACT Flood 80 RGBW 03) Press the UP/DOWN buttons to select the desired setting. 04) Press the ENTER button to confirm the selection. Fixture Test In this menu you can perform a test of the device’s parameters and adjust manually the color and the dimmer and strobe values.
  • Page 29: Special Functions

    ACT Flood 80 RGBW Special Functions In this menu you can reset the device’s settings to the default factory settings. 01) Press the ENTER button to open the pop-up submenu for the factory settings: 02) Press the UP/DOWN buttons to choose between NO and YES. If you choose YES, the device’s settings will be reset to the default factory settings.
  • Page 30: Dmx Channels

    ACT Flood 80 RGBW DMX Channels 4 CH 7 CH 11 CH Function Value Setting 000–255 From low to high intensity (0–100 %) Green 000–255 From low to high intensity (0–100 %) Blue 000–255 From low to high intensity (0–100 %) White 000–255...
  • Page 31 ACT Flood 80 RGBW 4 CH 7 CH 11 CH Function Value Setting 189–192 Color 48 193–196 Color 49 197–200 Color 50 201–204 Color 51 205–208 Color 52 209–212 Color 53 213–216 Color 54 217–220 Color 55 221–224 Color 56 225–228...
  • Page 32: Troubleshooting

    ACT Flood 80 RGBW Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.
  • Page 33: Maintenance

    ACT Flood 80 RGBW Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●...
  • Page 34: Corrective Maintenance

    ACT Flood 80 RGBW Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.
  • Page 35: Deinstallation, Transportation And Storage

    ACT Flood 80 RGBW Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device.
  • Page 36 ©2022 Showtec...
