Summary of Contents for SHOWTEC LED Foot 4

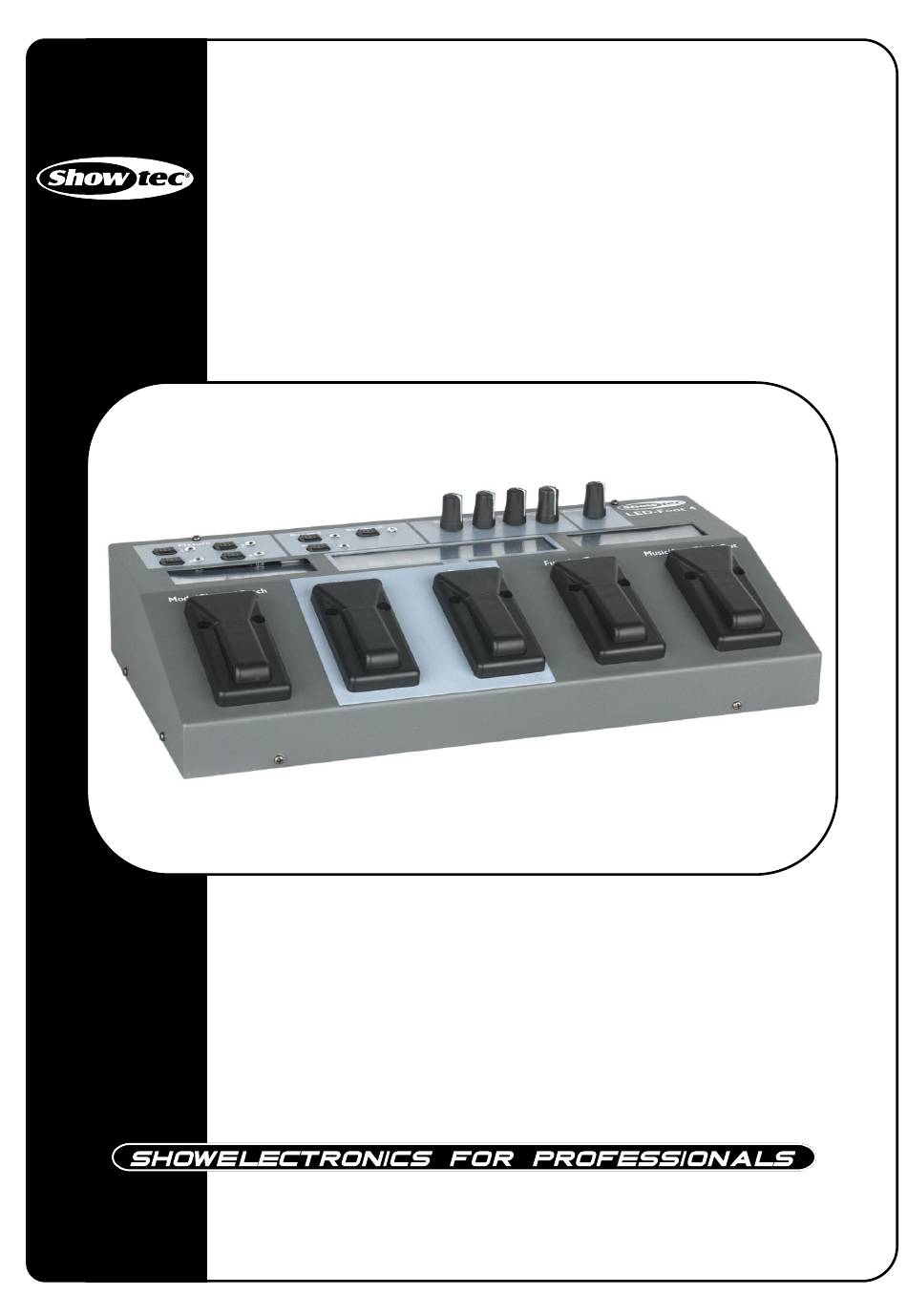

- Page 1 LED Foot 4 ORDERCODE 50719...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED-Foot 4 ™ Product Guide Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Backside ..................................7 Set Up and Operation ............................... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec LED-Foot 4 • Incl. Power adapter 1,75m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Description of the device Features The LED-Foot 4 is a light controller from Showtec and features: • 4 Channel patchable LED par controller • Can be used with any LED Parcan • Patchable • Music control • Foot control • Total control to 4 groups of LED Parcans •... -
Page 9: Backside
Backside Fig. 2 1) Fixture 1-4 2) Record button 3) Patch button 4) Blackout button: Press the Blackout button to cut all output. 5) Red control 6) Green control 7) Blue control 8) Master control 9) Audio sensitivity control 10) Mode/Channel Patch Foot pedal 11) Up Foot pedal 12) Down Foot pedal 13) Function/Enter pedal... -
Page 10: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the LED-Foot 4. Check that all foam and plastic padding is removed. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Scenes
1. Scenes 1.1 Program Scene 1. To enter the Program Mode, press and hold Record button (2) for 3 seconds, the record LED will light up red. 2. To select the SCENE mode, press the Mode/Channel Patch pedal (10). The LED display above the Mode/Channel Patch pedal (10) will show “SCENE”. -
Page 12: Music Or Auto Mode
Music or Auto mode 1. Press the MUSIC/AUTO/BLACKOUT pedal (14) to set the LED Foot-4 to Music or Auto Mode. 2. You can change the Audio sensitivity by turning the rotary control (9). 3. To go to AUTO mode, press the MUSIC/AUTO/BLACKOUT pedal (14) again. You’re now in AUTO Mode. 4. -
Page 13: Modify A Chase Step
OFF, this means the fixture is deselected. 10. Press the Enter pedal (13) to save the chase step. The LED will flash 3 times. 11. If you want to insert more chase steps, repeat step 4 - step 11. 12. Push Record button to exit the "Insert" mode. The record LED is ON. 13. -
Page 14: Delete A Chase
2.5 Delete A Chase 1. To enter the Program Mode, press and hold the Record button (2) for 3 seconds, the record LED will light up red. 2. To select the CHASE mode, press the Mode/Channel Patch pedal (10) and select the CHASE mode. The LED display above the Mode/Channel Patch pedal (10) will show “CHASE”. -
Page 15: Maintenance
Maintenance The Showtec LED-Foot 4 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 16 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are completely dead. Fixtures reset The controller is not connected. • Connect controller. correctly, but all 3-pin XLR Out of the controller •...
-
Page 17: Product Specification
Product Specification Model: Showtec LED-Foot 4 • 4 Channel patchable LED par controller • Can be used with any LED Parcan • Patchable • Music control • Foot control • total control to 4 groups of LED Parcans • the LED-Foot can work with any LED fixture in the market •...
