Code MINI 1000 User Manual page 57

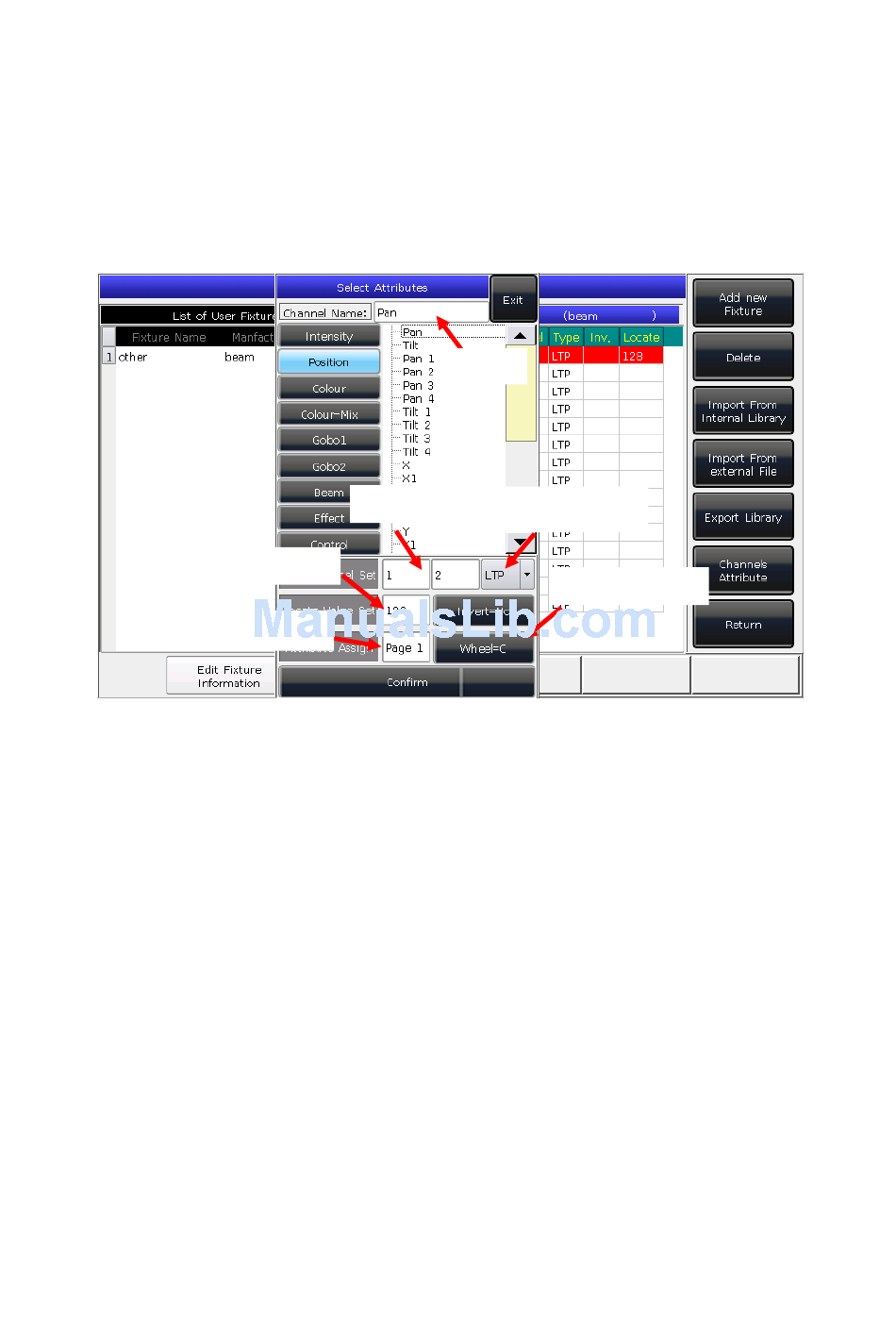

③ The fixture information will list on the left. And will list all channels when you select
the fixture name. The number of rows equal to your setting of DMX channels;
④ Select channel number on touch screen and press [Channels Attributes];
⑤ The call out window will list different kinds of attribute names on the left which
relevant to attribute keys. You will find many attribute names in each of them. Then
you can select the channel name, set DMX channel (fine channel or not), channel
type, locate value, key page and the wheels to control;
Locate value
⑥ Press [Confirm] to finish setting on that channel;
⑦ Repeat steps from ④ to ⑥ until finish all the channel list;
⑧ Press [Return] and select [Confirm] to save your setting.
8.3.2.2. Delete User library
The option can only delete user library but system library.
① Select the name list on left;
② Press [Delete] to delete.
8.3.2.3. Import and edit library from system
If there is a system library which can be used, but something should be adjusted. You can
import the system library and adjust it for actual using. (Note: The modulation on import
library will not change the initial library in system. But those pre-setting functions in system
library will be deleted after adjusted.)
① Press [Import From Internal Library];
② The window will list all manufacture names from system library on left;
③ Search and select the manufacture, all libraries of the manufacture will be list on
right;
MINI_1000_en.pdf
Channel
Key page
Name
Channel type
Control wheel
52
http://www.codelight.com
