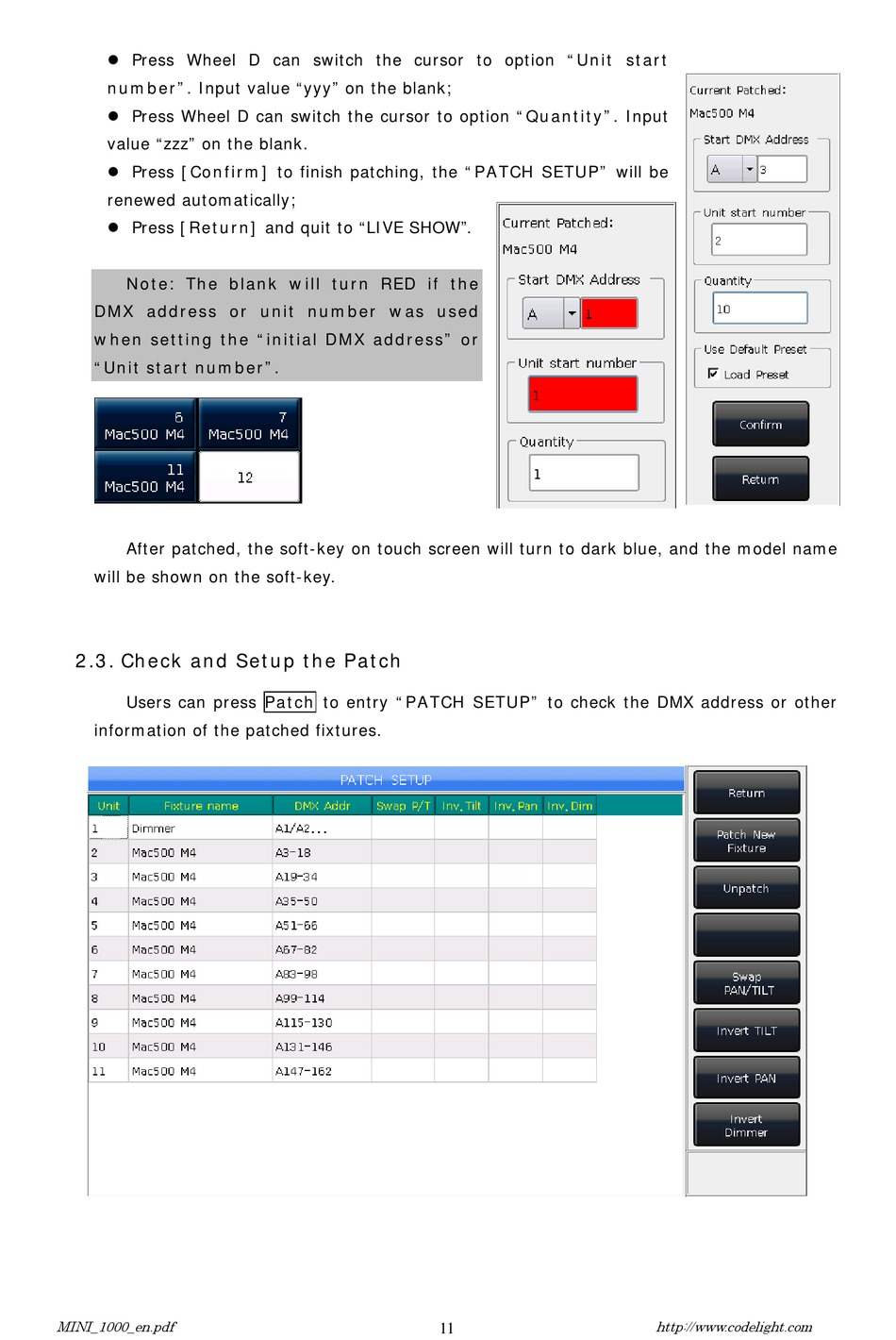

 Press Wheel D can switch the cursor to option "Unit start
number". Input value "yyy" on the blank;
 Press Wheel D can switch the cursor to option "Quantity". Input
value "zzz" on the blank.
 Press [Confirm] to finish patching, the "PATCH SETUP" will be
renewed automatically;
 Press [Return] and quit to "LIVE SHOW".
Note: The blank will turn RED if the
DMX address or unit number was used
when setting the "initial DMX address" or
"Unit start number".
After patched, the soft-key on touch screen will turn to dark blue, and the model name
will be shown on the soft-key.

2.3. Check and Setup the Patch

Users can press Patch to entry "PATCH SETUP" to check the DMX address or other
information of the patched fixtures.
