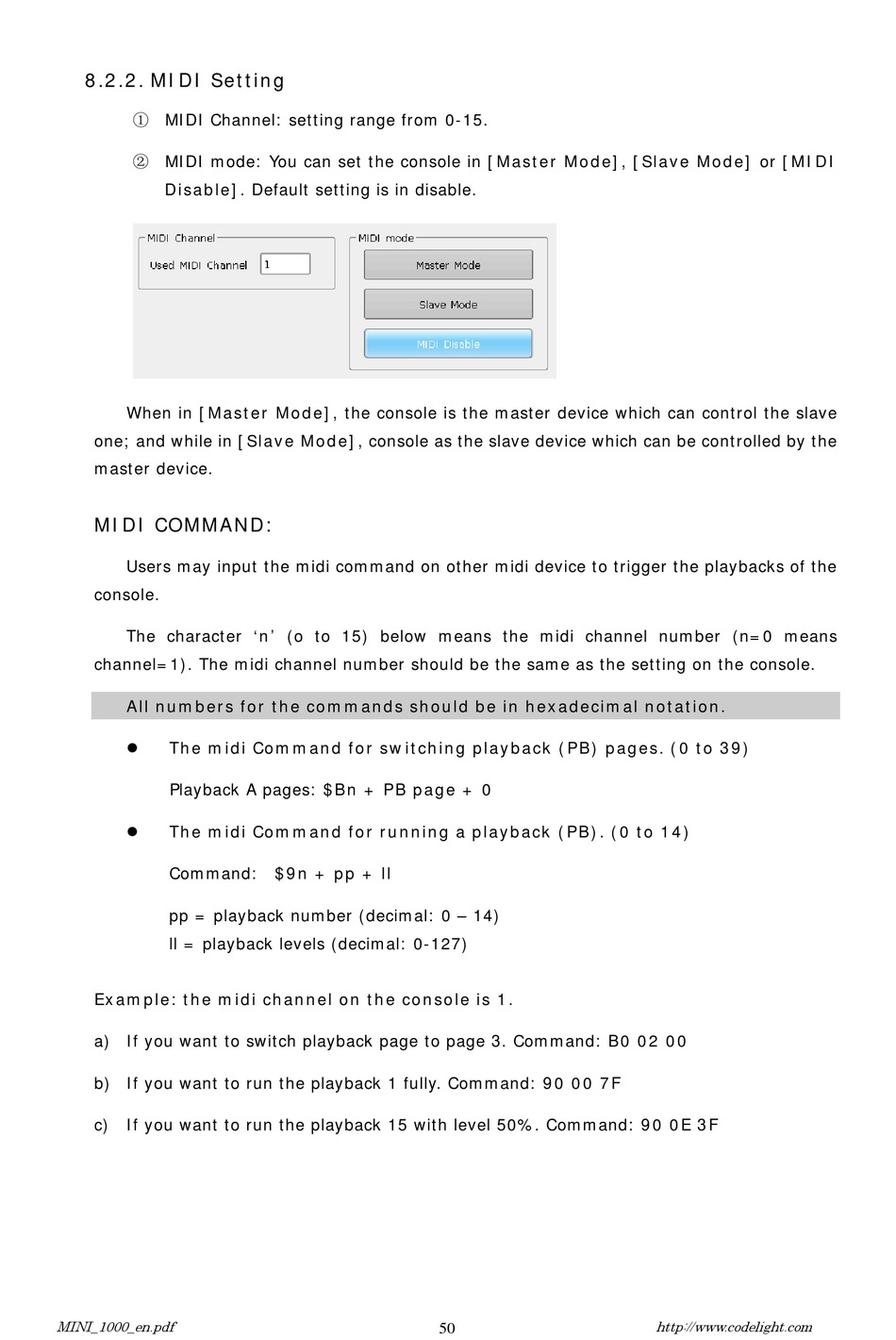

8.2.2. MIDI Setting

① MIDI Channel: setting range from 0-15.
② MIDI mode: You can set the console in [Master Mode], [Slave Mode] or [MIDI
Disable]. Default setting is in disable.
When in [Master Mode], the console is the master device which can control the slave
one; and while in [Slave Mode], console as the slave device which can be controlled by the
master device.
MIDI COMMAND:
Users may input the midi command on other midi device to trigger the playbacks of the
console.
The character 'n' (o to 15) below means the midi channel number (n=0 means
channel=1). The midi channel number should be the same as the setting on the console.
All numbers for the commands should be in hexadecimal notation.
The midi Command for switching playback (PB) pages. (0 to 39)

Playback A pages: $Bn + PB page + 0
The midi Command for running a playback (PB). (0 to 14)

Command: $9n + pp + ll
pp = playback number (decimal: 0 – 14)
ll = playback levels (decimal: 0-127)
Example: the midi channel on the console is 1.
a) If you want to switch playback page to page 3. Command: B0 02 00
b) If you want to run the playback 1 fully. Command: 90 00 7F
c) If you want to run the playback 15 with level 50%. Command: 90 0E 3F
