1.1.10. USB Interface

The controller offers a USB interface for users to backup the shows or upgrade system
version and fixture libraries.

1.1.11. Other Devices

MINI 1000 has a 12V DC working lamp interface on the top right of
the front panel which close by a knob for dimming.

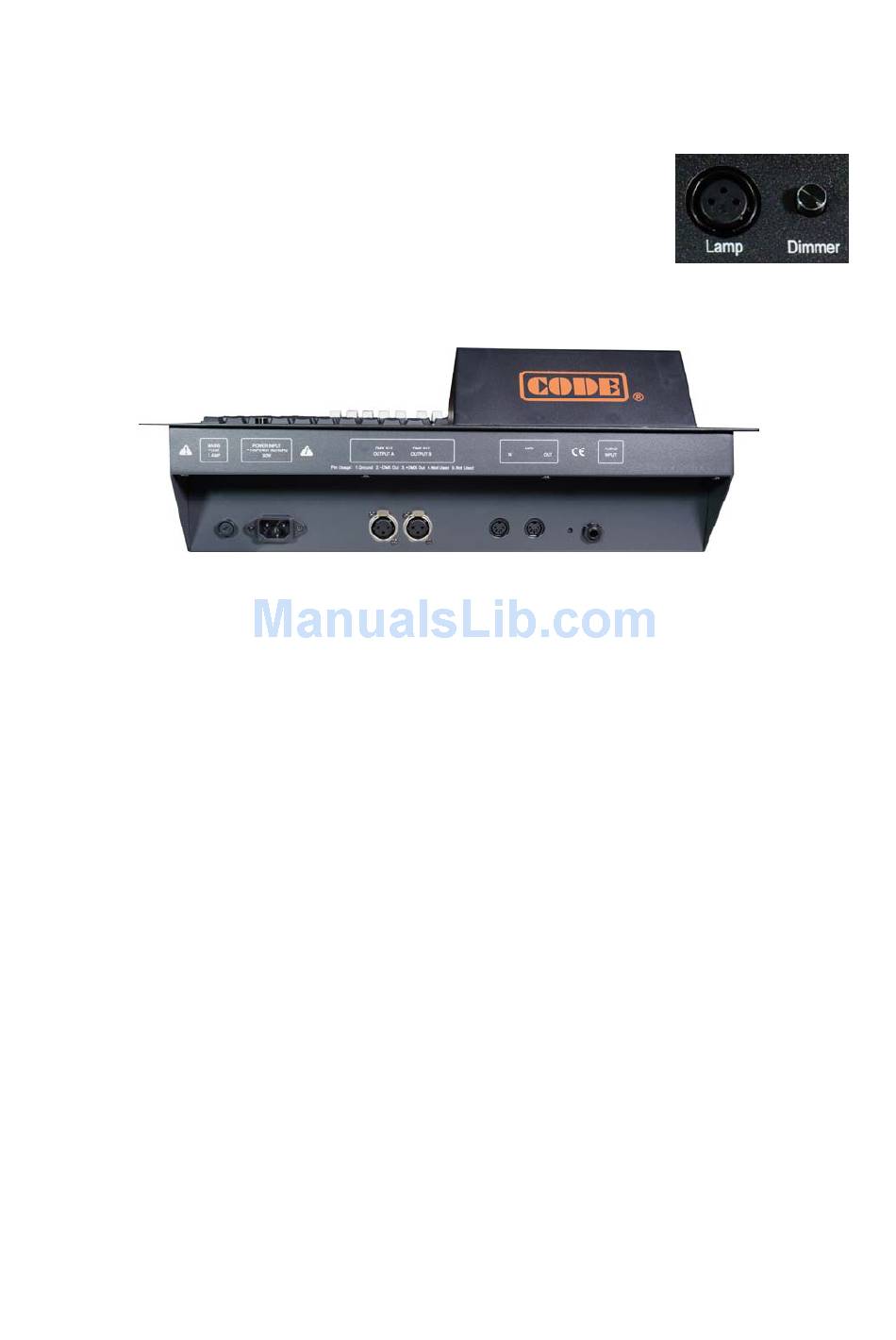

1.2. The Rear Panel of MINI 1000

1.2.1. DMX universes

MINI 1000 can output 2 universes of DMX signal, each of them can output 512 control
channels.
The console can send DMX directly to fixtures over A, B output interface.
"DMX Output A" outputs signals of A001 - A512;
"DMX Output B" outputs signals of B001 - B512.

1.2.2. MIDI Interface

MINI 1000 not only can be controlled by MIDI signals, but also can send MIDI signal to
control another one. Please refer to the relevant chapter for further control instruction.

1.2.3. Audio Input

MINI 1000 can pick up the bass and rhythm of the audio signal to trigger Cue-lists, so
that Cue-lists can auto run by the bass rhythm of audio. There are two ways to input the audio
signals: one is via a 1/4 inch stereo interface; another one is by the microphone of console.
After the stereo interface is connected, the console will use the audio signals from the stereo
cable. Otherwise, it will use the microphone to pick up the sound.

1.2.4. Power Supply

MINI 1000 is adapt to quite a wide voltage range (100-240V AC, 50-60Hz). Thus, it can
be used worldwide. If you need to change the fuse, please disconnect the power cable for
safety.
