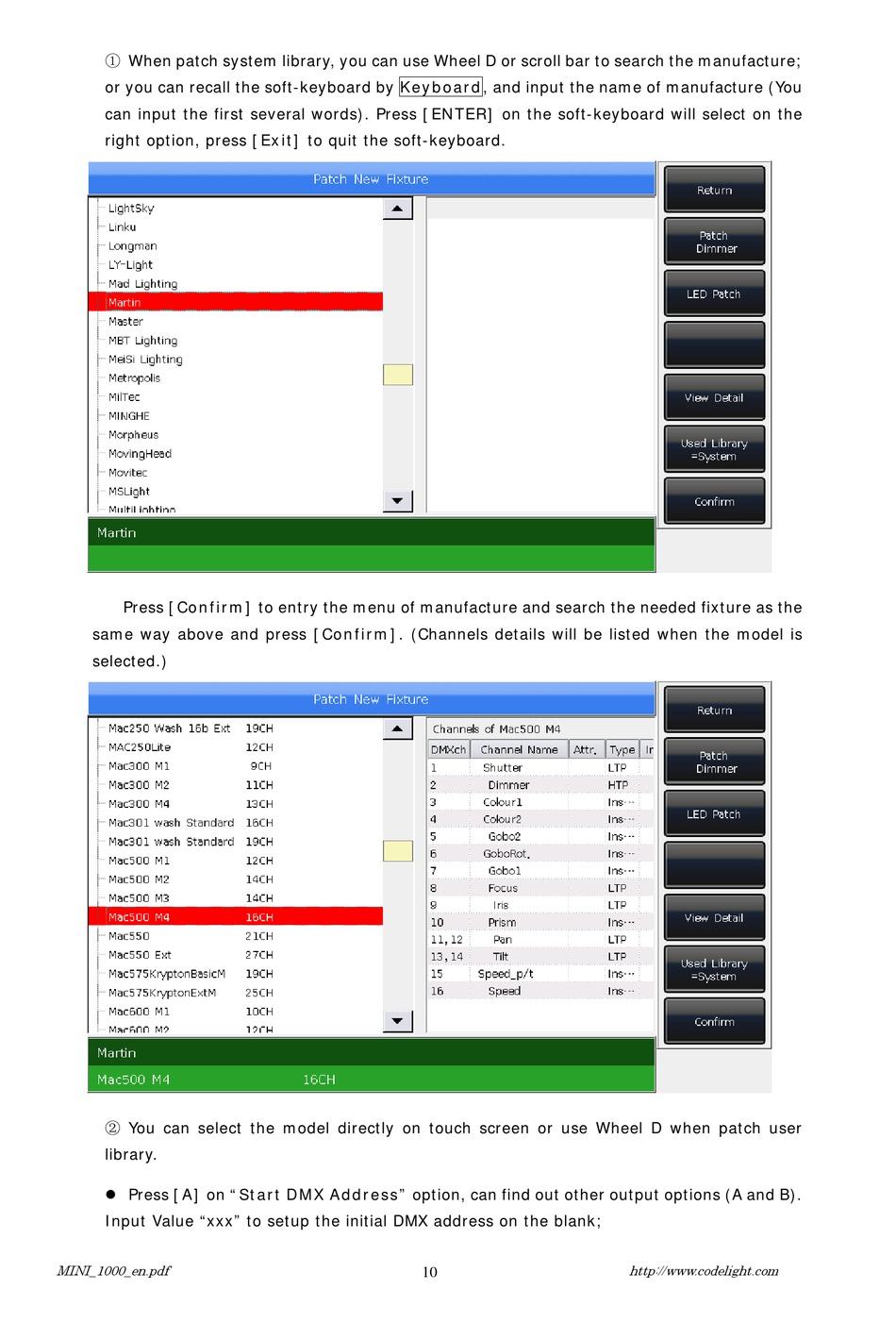

Code MINI 1000 User Manual page 15

① When patch system library, you can use Wheel D or scroll bar to search the manufacture;
or you can recall the soft-keyboard by Keyboard, and input the name of manufacture (You
can input the first several words). Press [ENTER] on the soft-keyboard will select on the
right option, press [Exit] to quit the soft-keyboard.
Press [Confirm] to entry the menu of manufacture and search the needed fixture as the
same way above and press [Confirm]. (Channels details will be listed when the model is
selected.)
② You can select the model directly on touch screen or use Wheel D when patch user
library.
 Press [A] on "Start DMX Address" option, can find out other output options (A and B).
Input Value "xxx" to setup the initial DMX address on the blank;
