The basic point of effect can be modulated. By changing its attribute, to set the size

or speed to '0' can get the basic position of effect.
Each effect should work with its attribute. The type of effect can not be used if the

fixtures do not have that attribute.

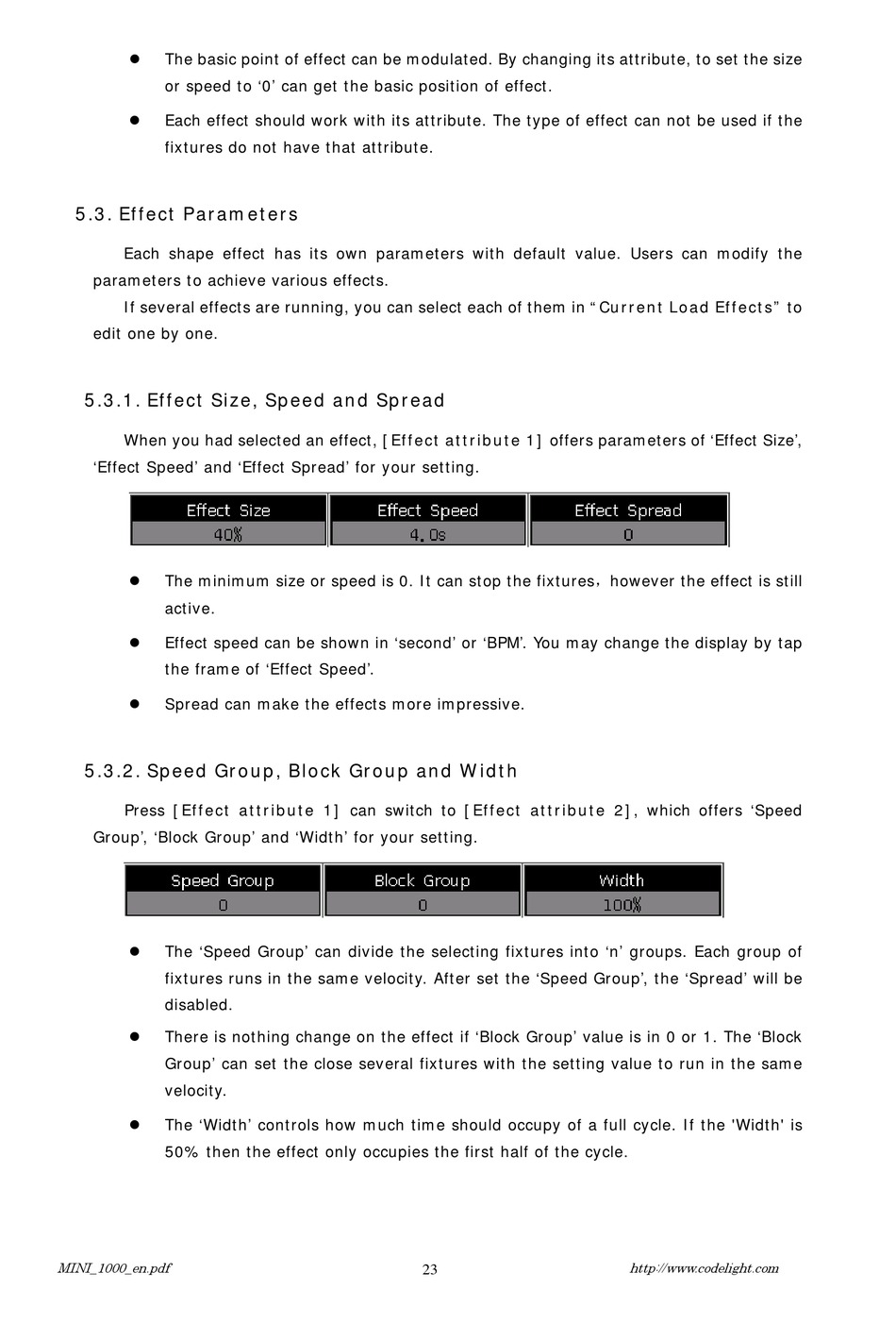

5.3. Effect Parameters

Each shape effect has its own parameters with default value. Users can modify the
parameters to achieve various effects.
If several effects are running, you can select each of them in "Current Load Effects" to
edit one by one.

5.3.1. Effect Size, Speed and Spread

When you had selected an effect, [Effect attribute 1] offers parameters of 'Effect Size',
'Effect Speed' and 'Effect Spread' for your setting.
The minimum size or speed is 0. It can stop the fixtures，however the effect is still

active.
Effect speed can be shown in 'second' or 'BPM'. You may change the display by tap

the frame of 'Effect Speed'.
Spread can make the effects more impressive.


5.3.2. Speed Group, Block Group and Width

Press [Effect attribute 1] can switch to [Effect attribute 2], which offers 'Speed
Group', 'Block Group' and 'Width' for your setting.
The 'Speed Group' can divide the selecting fixtures into 'n' groups. Each group of

fixtures runs in the same velocity. After set the 'Speed Group', the 'Spread' will be
disabled.
There is nothing change on the effect if 'Block Group' value is in 0 or 1. The 'Block

Group' can set the close several fixtures with the setting value to run in the same
velocity.
The 'Width' controls how much time should occupy of a full cycle. If the 'Width' is

50% then the effect only occupies the first half of the cycle.
