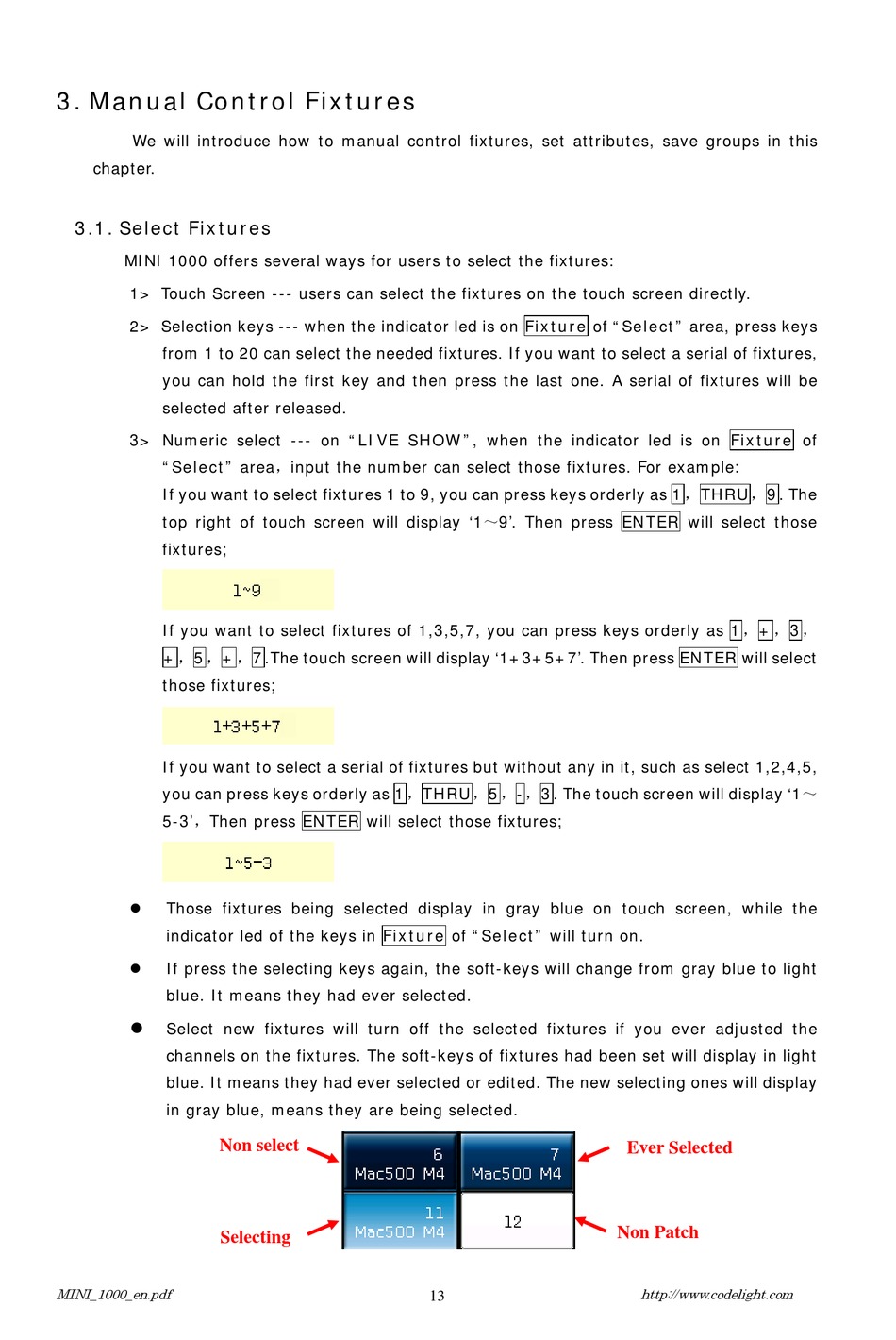

3. Manual Control Fixtures

We will introduce how to manual control fixtures, set attributes, save groups in this
chapter.

3.1. Select Fixtures

MINI 1000 offers several ways for users to select the fixtures:
1> Touch Screen --- users can select the fixtures on the touch screen directly.
2> Selection keys --- when the indicator led is on Fixture of "Select" area, press keys
from 1 to 20 can select the needed fixtures. If you want to select a serial of fixtures,
you can hold the first key and then press the last one. A serial of fixtures will be
selected after released.
3> Numeric select --- on "LIVE SHOW", when the indicator led is on Fixture of
"Select" area，input the number can select those fixtures. For example:
If you want to select fixtures 1 to 9, you can press keys orderly as 1，THRU，9. The
top right of touch screen will display '1～9'. Then press ENTER will select those
fixtures;
If you want to select fixtures of 1,3,5,7, you can press keys orderly as 1，+，3，
+，5，+，7.The touch screen will display '1+3+5+7'. Then press ENTER will select
those fixtures;
If you want to select a serial of fixtures but without any in it, such as select 1,2,4,5,
you can press keys orderly as 1，THRU，5，-，3. The touch screen will display '1～
5-3'，Then press ENTER will select those fixtures;
Those fixtures being selected display in gray blue on touch screen, while the

indicator led of the keys in Fixture of "Select" will turn on.
If press the selecting keys again, the soft-keys will change from gray blue to light

blue. It means they had ever selected.

Select new fixtures will turn off the selected fixtures if you ever adjusted the
channels on the fixtures. The soft-keys of fixtures had been set will display in light
blue. It means they had ever selected or edited. The new selecting ones will display
in gray blue, means they are being selected.
Non select
Selecting
MINI_1000_en.pdf
13
Ever Selected
Non Patch
