8.3. System Manage

8.3.1. Upgrade Manage

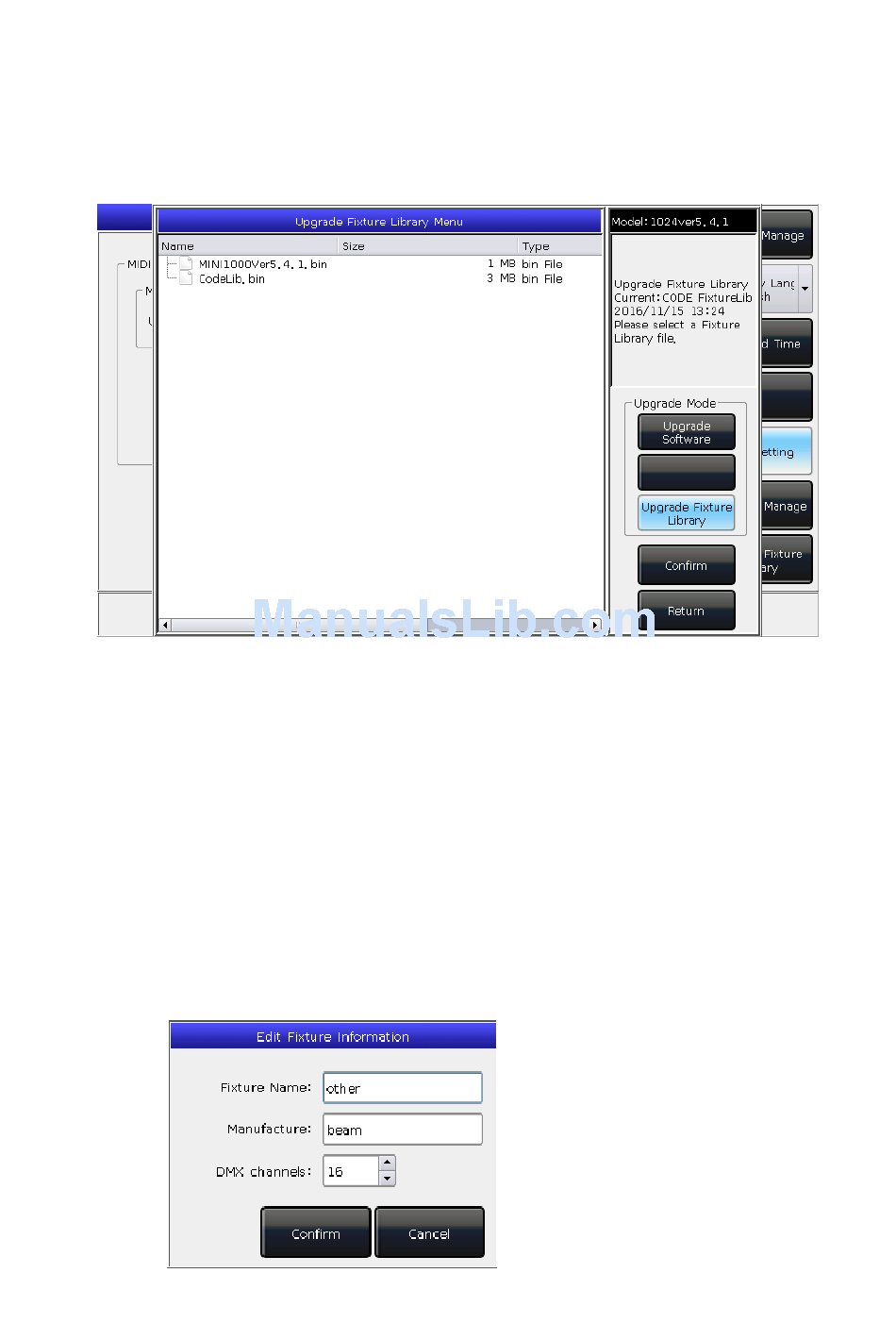

The option provides users to upgrade the system or library. You can upgrade system or
library via USB driver when you get the file.
You can check up the system version and date of library here.

8.3.2. Manage Fixture Library

If you can not find the fixture library from system, you can create or edit user library on
the console.
When entered the option, it will list all loaded or created user libraries on the left. Select
any one will list its channel details, you can edit it again.
8.3.2.1. Create new fixture
① Press [Add New Fixture];
② Input the "Fixture Name", "Manufacture" and "DMX channels", then press
[Confirm];
