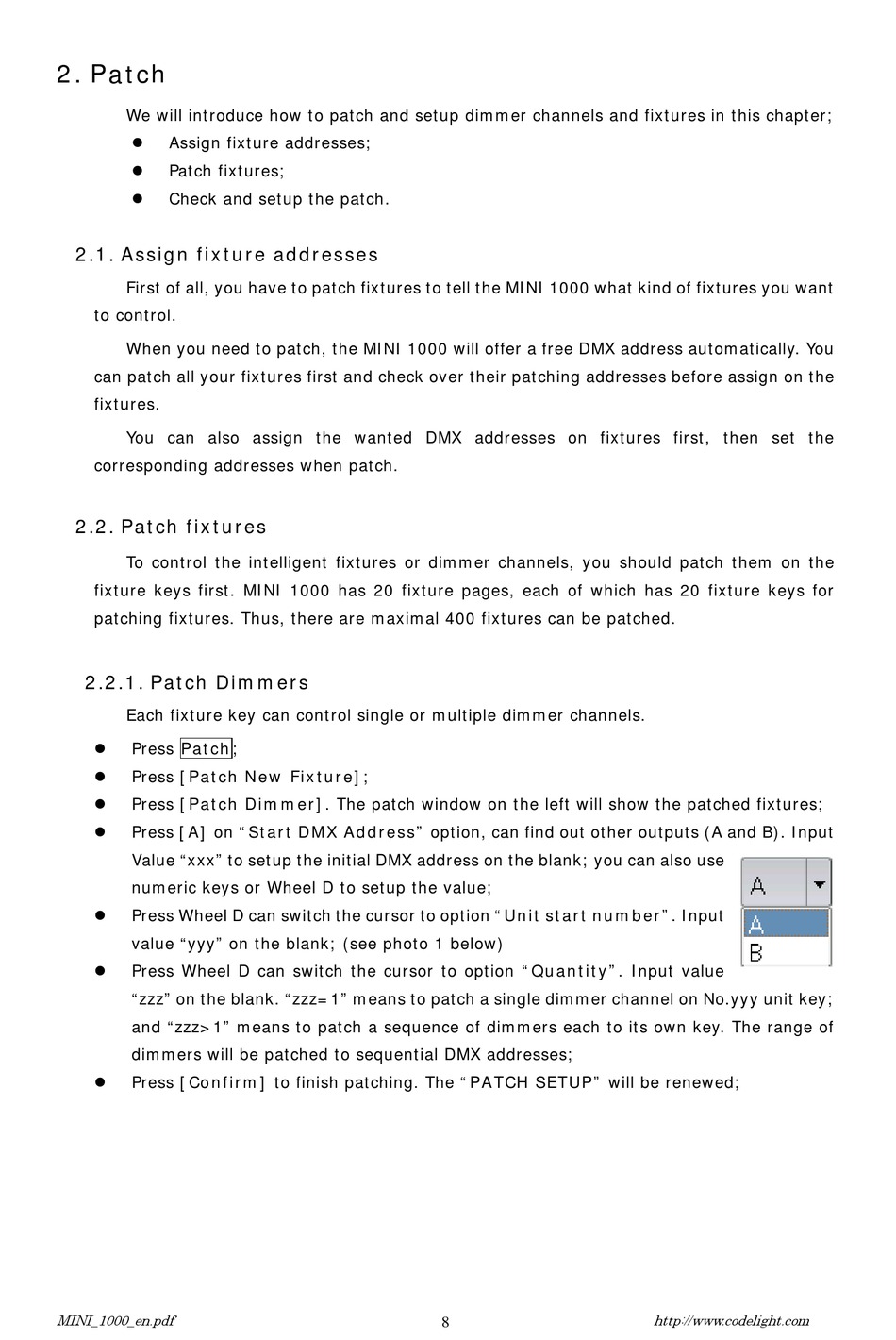

2. Patch

We will introduce how to patch and setup dimmer channels and fixtures in this chapter;

Assign fixture addresses;



Patch fixtures;


Check and setup the patch.

2.1. Assign fixture addresses
First of all, you have to patch fixtures to tell the MINI 1000 what kind of fixtures you want
to control.
When you need to patch, the MINI 1000 will offer a free DMX address automatically. You
can patch all your fixtures first and check over their patching addresses before assign on the
fixtures.
You can also assign the wanted DMX addresses on fixtures first, then set the
corresponding addresses when patch.
2.2. Patch fixtures
To control the intelligent fixtures or dimmer channels, you should patch them on the
fixture keys first. MINI 1000 has 20 fixture pages, each of which has 20 fixture keys for
patching fixtures. Thus, there are maximal 400 fixtures can be patched.

2.2.1. Patch Dimmers

Each fixture key can control single or multiple dimmer channels.
Press Patch;

Press [Patch New Fixture];

Press [Patch Dimmer]. The patch window on the left will show the patched fixtures;

Press [A] on "Start DMX Address" option, can find out other outputs (A and B). Input

Value "xxx" to setup the initial DMX address on the blank; you can also use
numeric keys or Wheel D to setup the value;
Press Wheel D can switch the cursor to option "Unit start number". Input

value "yyy" on the blank; (see photo 1 below)
Press Wheel D can switch the cursor to option "Quantity". Input value

"zzz" on the blank. "zzz=1" means to patch a single dimmer channel on No.yyy unit key;
and "zzz>1" means to patch a sequence of dimmers each to its own key. The range of
dimmers will be patched to sequential DMX addresses;
Press [Confirm] to finish patching. The "PATCH SETUP" will be renewed;

