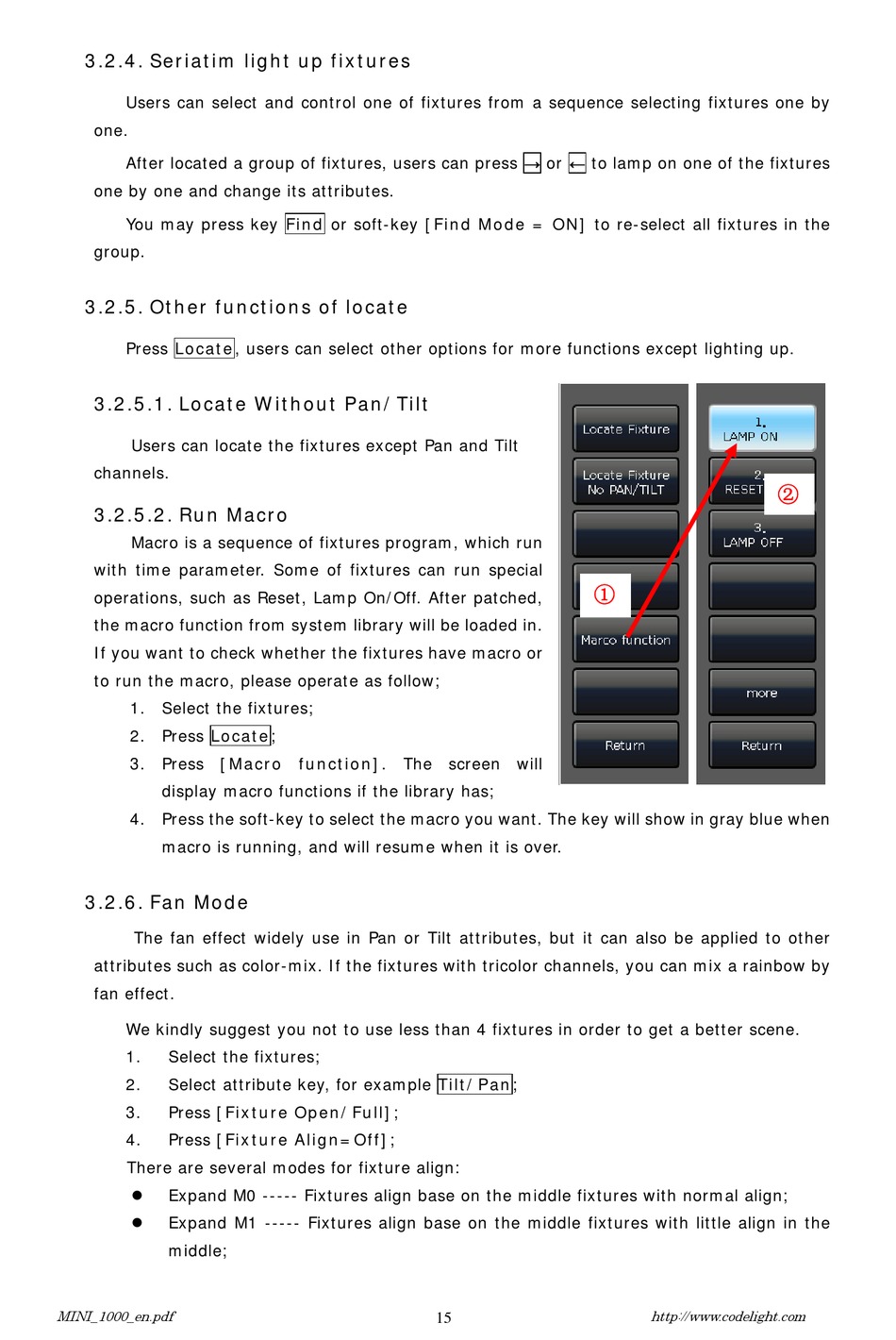

3.2.4. Seriatim light up fixtures

Users can select and control one of fixtures from a sequence selecting fixtures one by
one.
After located a group of fixtures, users can press → or ← to lamp on one of the fixtures
one by one and change its attributes.
You may press key Find or soft-key [Find Mode = ON] to re-select all fixtures in the
group.

3.2.5. Other functions of locate

Press Locate, users can select other options for more functions except lighting up.
3.2.5.1. Locate Without Pan/Tilt
Users can locate the fixtures except Pan and Tilt
channels.
3.2.5.2. Run Macro
Macro is a sequence of fixtures program, which run
with time parameter. Some of fixtures can run special
operations, such as Reset, Lamp On/Off. After patched,
the macro function from system library will be loaded in.
If you want to check whether the fixtures have macro or
to run the macro, please operate as follow;
1. Select the fixtures;
2. Press Locate;
3. Press [Macro function]. The screen will
display macro functions if the library has;
4. Press the soft-key to select the macro you want. The key will show in gray blue when
macro is running, and will resume when it is over.

3.2.6. Fan Mode

The fan effect widely use in Pan or Tilt attributes, but it can also be applied to other
attributes such as color-mix. If the fixtures with tricolor channels, you can mix a rainbow by
fan effect.
We kindly suggest you not to use less than 4 fixtures in order to get a better scene.
1. Select the fixtures;
2. Select attribute key, for example Tilt/Pan;
3. Press [Fixture Open/Full];
4. Press [Fixture Align=Off];
There are several modes for fixture align:
Expand M0 ----- Fixtures align base on the middle fixtures with normal align;

Expand M1 ----- Fixtures align base on the middle fixtures with little align in the

middle;
