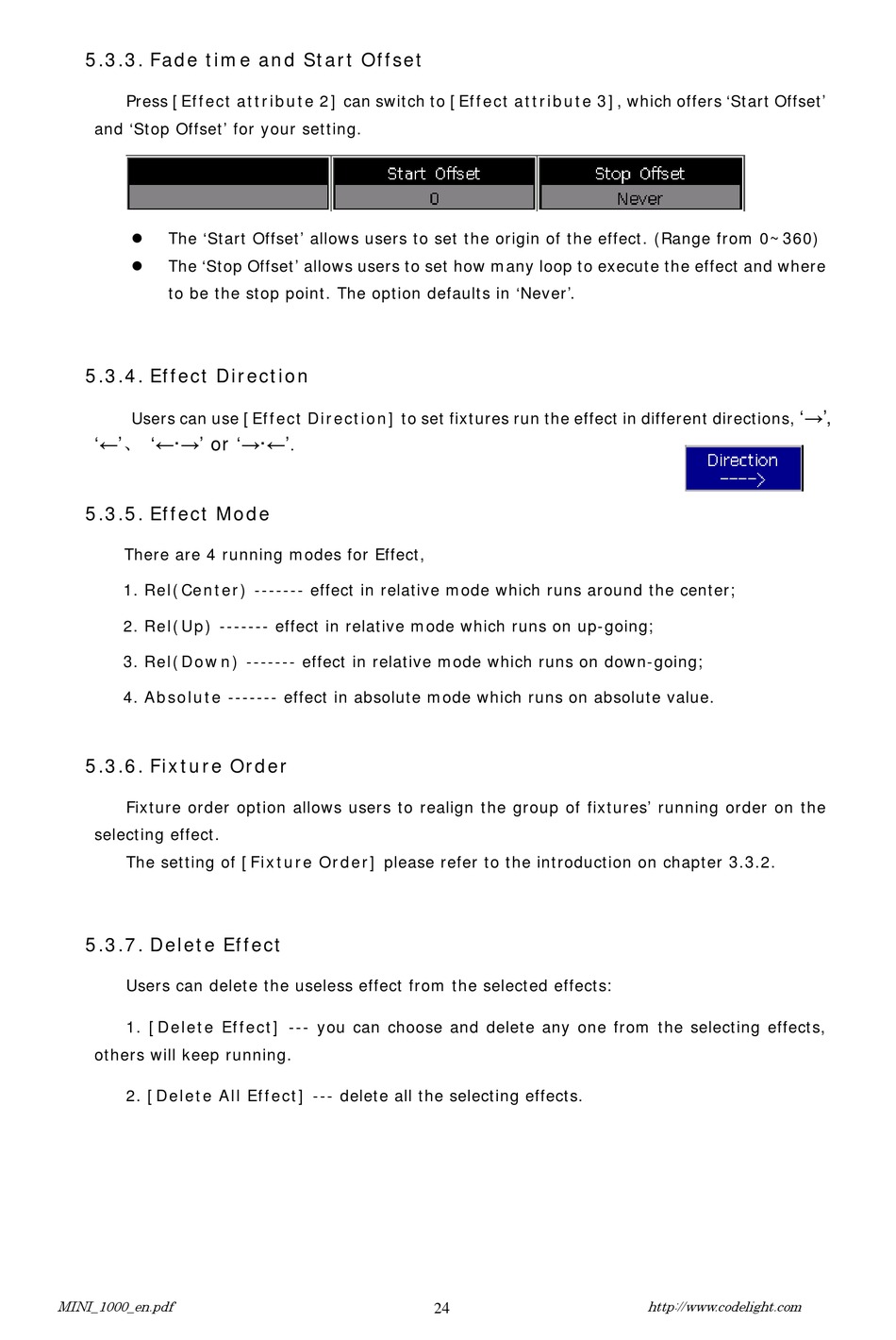

5.3.3. Fade time and Start Offset

Press [Effect attribute 2] can switch to [Effect attribute 3], which offers 'Start Offset'
and 'Stop Offset' for your setting.
The 'Start Offset' allows users to set the origin of the effect. (Range from 0~360)

The 'Stop Offset' allows users to set how many loop to execute the effect and where

to be the stop point. The option defaults in 'Never'.

5.3.4. Effect Direction

Users can use [Effect Direction] to set fixtures run the effect in different directions,
'←'、 '←·→' or '→·←'

5.3.5. Effect Mode

There are 4 running modes for Effect,
1. Rel(Center) ------- effect in relative mode which runs around the center;
2. Rel(Up) ------- effect in relative mode which runs on up-going;
3. Rel(Down) ------- effect in relative mode which runs on down-going;
4. Absolute ------- effect in absolute mode which runs on absolute value.

5.3.6. Fixture Order

Fixture order option allows users to realign the group of fixtures' running order on the
selecting effect.
The setting of [Fixture Order] please refer to the introduction on chapter 3.3.2.

5.3.7. Delete Effect

Users can delete the useless effect from the selected effects:
1. [Delete Effect] --- you can choose and delete any one from the selecting effects,
others will keep running.
2. [Delete All Effect] --- delete all the selecting effects.
