Code Reader 3500 Quick Start Manual

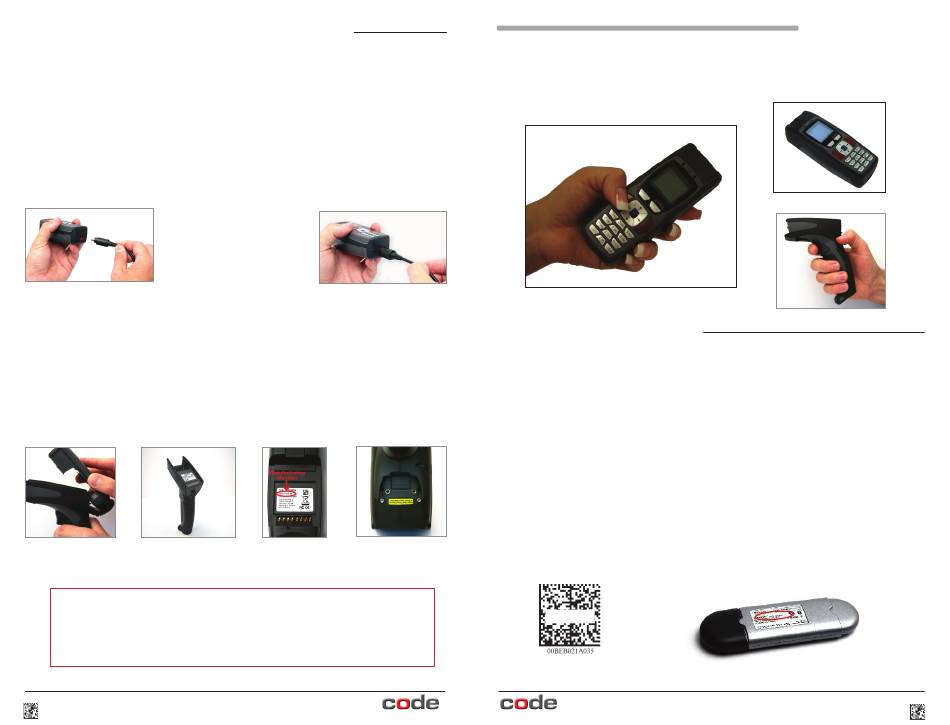

CR3500 (Batch Mode) Cable & Handle Installation
The CR3500 is available with USB (6 ft. and 12 ft.), RS-232 and PS/2 cables. All of the
cables are connected to the CR3500 with a 8-pin DIN connector.
I
nstall a Cable Directly to the CR3500
Line up the 8-pin DIN connector into the back end of the unit. The arrows on the connector
should be facing down (Figure 1). When the two items are aligned, firmly push the cable
into the reader.
The cable has a locking mechanism that will firmly hold the cable in place (Figure 2).
To detach the cable, pinch the plastic on the 8-pin DIN and pull back to disengage the
connector.
Figure 1
Reader & H2, BH1/BH2 Handle Assembly
The CR3500 utilizes the battery compartment to 'snap' the reader to the H2, BH1 and
BH2 handles. For the H2 (only), push the 8-pin DIN connector at the end of the reader
into the flexible connector at the end of the handle. For all three handles, snap the reader
onto the handle (Figure 5) matching the battery compartment of the reader to the battery
connectors, visible inside the handle (Figure 6). Newer readers (MFG # 012_05 or later
- Figure 7) can be secured further with threaded screws on the under side of the handle
(Figure 8).
Figure 5 Figure 6
CR3500 Accessories:
• Handles
• Lanyard Hook Attachment
• Reader Stand
Visit www.codecorp.com for information on all Code readers and accessories.
4 C004419_02_CR3500_Quickstart_Wireless
Figure 2
Figure 7 Figure 8
• Battery Handles
• Battery Chargers (single bay)
Code Reader 3500 - Wireless
CR3500 Wireless Setup
This Code Reader 3500 (CR3500) features a Bluetooth® wireless radio. The radio allows
for point to point wireless communication with other Bluetooth devices that support serial
port protocol (SPP). If keyboard entry is necessary, Code XML Router will need to be
installed. The following guide will give you general instructions on connecting your CR3500
to a desktop or laptop computer with a Bluetooth radio.
Connecting With A QuickConnect Code
The easiest way to connect to a Bluetooth device is to visit the Code website and create
a QuickConnect Code that is specific to your device (Figure 1). This code will link your
CR3500 directly to the desired Bluetooth device. To create a QuickConnect Code, you will
need to know the Bluetooth address (often referred to as the BD_ADDR) of that device.
You can usually find the 12-character Bluetooth address somewhere on the device near
the device's serial number (see Figure 2).
Sample
Figure 1
Quickstart Guide
Figure 2
C004419_02_CR3500_Quickstart_Wireless 1
