3 Pin descriptions

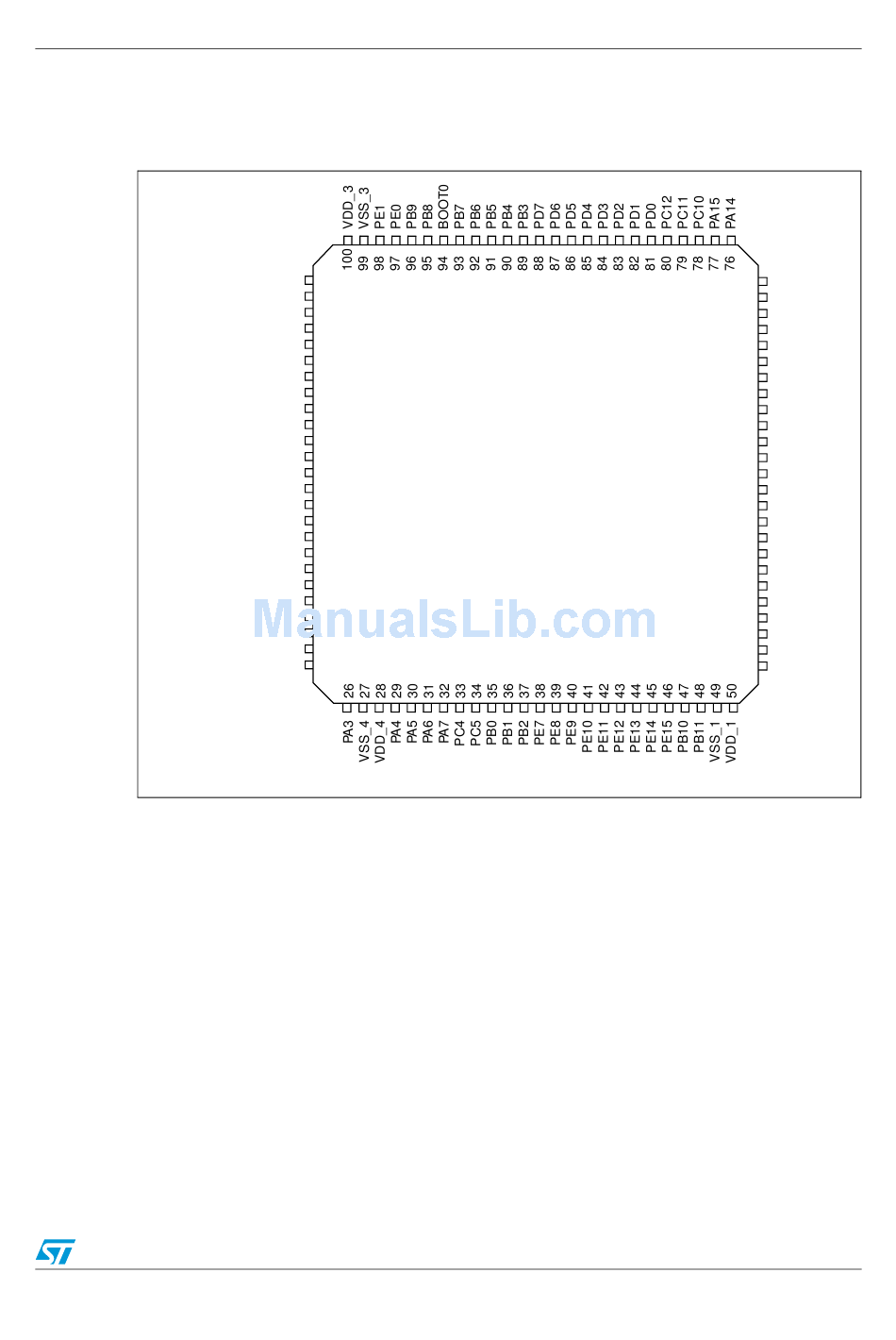

Figure 2.
PC13-ANTI_TAMP
PC14-OSC32_IN
PC15-OSC32_OUT
STM32F103xx performance line LQFP100 pinout
PE2
1
PE3
2
PE4
3
PE5
4
PE6
5
VBAT
6
7
8
9
VSS_5
10
VDD_5
11
OSC_IN
12
OSC_OUT
13
NRST
14
PC0
15
PC1
16
PC2
17
PC3
18
VSSA
19
VREF-
20
VREF+
21
VDDA
22
PA0-WKUP
23
PA1
24
PA2
25
LQFP100
Pin descriptions
75
VDD_2
74
VSS_2
73
NC
72
PA 13
71
PA 12
70
PA 11
69
PA 10
68
PA 9
67
PA 8
66
PC9
65
PC8
64
PC7
63
PC6
62
PD15
61
PD14
60
PD13
59
PD12
58
PD11
57
PD10
56
PD9
55
PD8
54
PB15
53
PB14
52
PB13
51
PB12
