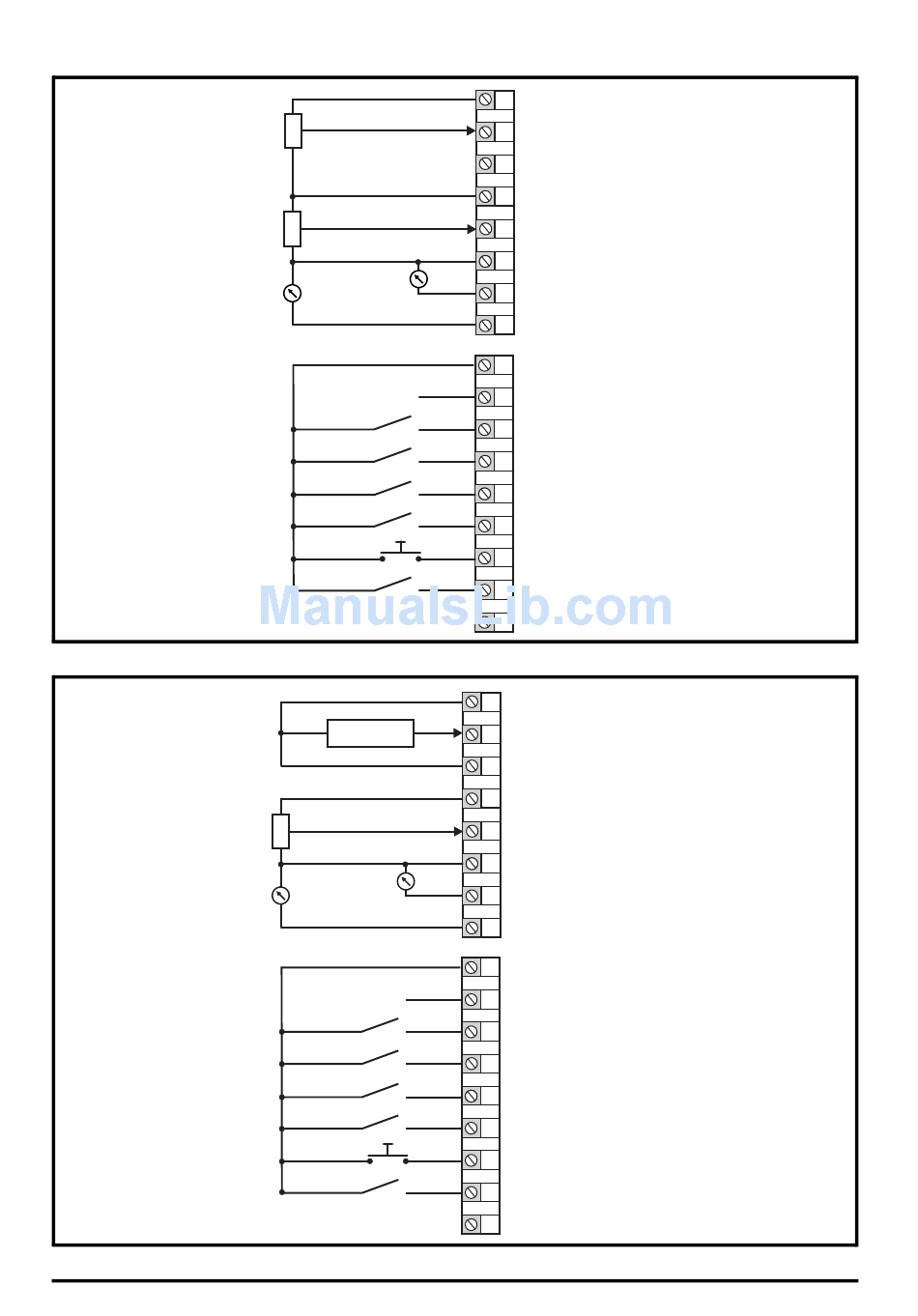

Figure 4-1 Pr 00.005 = AV
Figure 4-2 Pr 00.005 = AI
Unidrive M400 Control Quick Start Guide
Issue Number: 3
10k
10k
Current speed
reference input
10k
1 0V
Voltage speed reference
2
input (AI 1+)
3 AI 1-
+ 10 V output
4
Voltage speed
5
reference input (AI 2)
6 0 V
Analog output 1
7
(motor frequency)
Analog output 2
8
(motor active current)
+ 24 V output
9
Digital output
10
(zero frequency)
Unassigned
11
Run forward
12
13 Run reverse
Analog input 1/
14
input 2 select
15 Jog Forward
16 Unassigned
+ 24 V output
17
1 0V
Current speed reference
2
input (AI 1+)
3 AI 1-
4 + 10 V output
Voltage speed
5
reference input (AI 2)
6 0 V
Analog output 1
7
(motor frequency)
Analog output 2
8
(motor active current)
+ 24 V output
9
Digital output
10
(zero frequency)
Unassigned
11
Run forward
12
13 Run reverse
Analog input 1/
14
input 2 select
15 Jog Forward
Unassigned
16
+ 24 V output
17
