Flowmax 44i

2.3 Electrical wiring

Serious injury or death from electric shock may occur if wiring,
installation, disassembly or remove of wires is performed while
electrical power is energized.
Always shut off or disconnect electrical power at service panel and
lock switch or breaker and tag to prevent energizing electrical power
during work or while Flowmax 44i is not assembled and installed.
Wiring installation, disassembly and removal must be performed by
qualified persons experienced and knowledgeable about electrical
work.

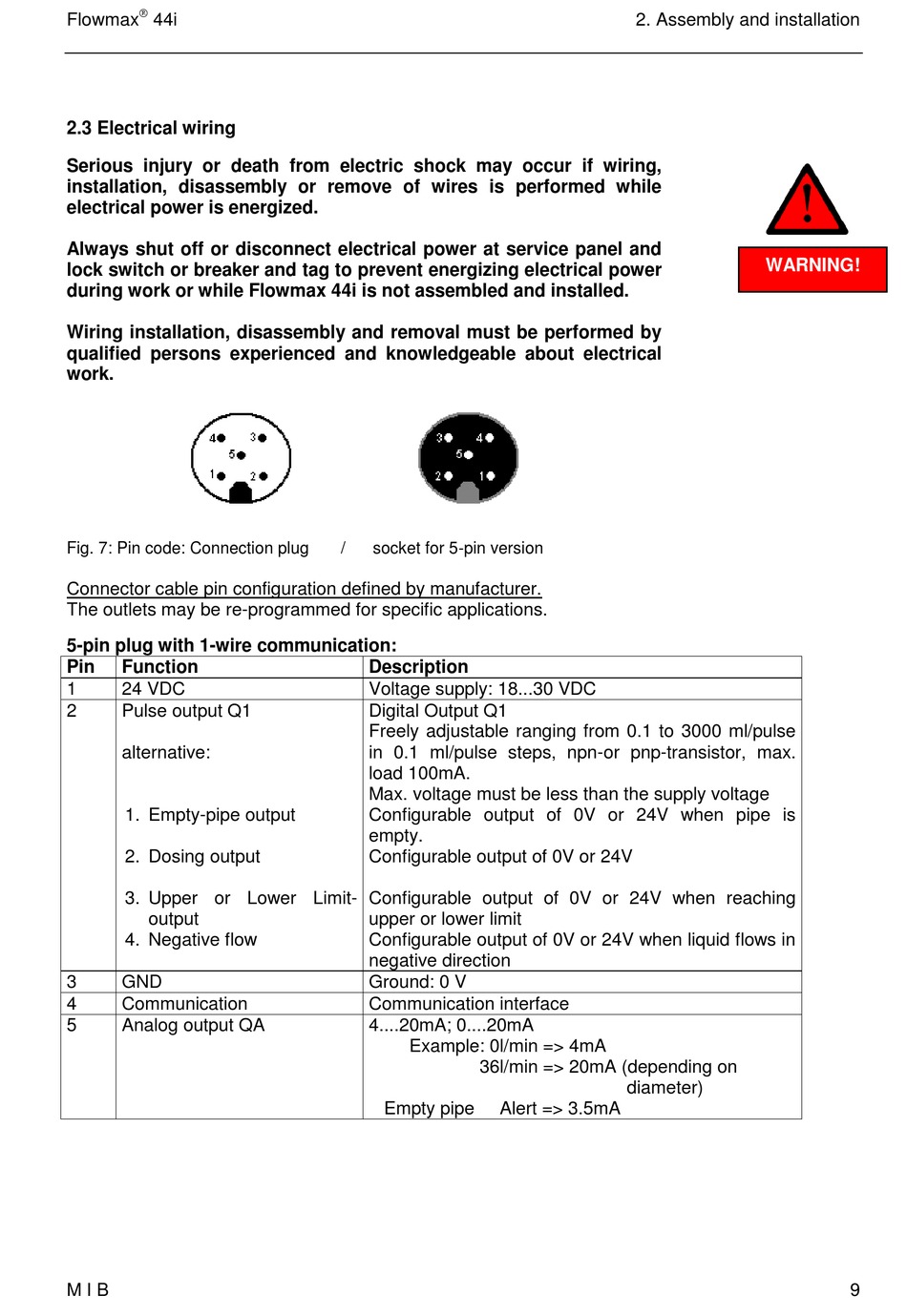

Fig. 7: Pin code: Connection plug
Connector cable pin configuration defined by manufacturer.
The outlets may be re-programmed for specific applications.
5-pin plug with 1-wire communication:
Pin Function
1 24 VDC
2 Pulse output Q1
alternative:
1. Empty-pipe output
2. Dosing output
3. Upper or Lower Limit-
output
4. Negative flow
3 GND
4 Communication
5 Analog output QA
M I B
/ socket for 5-pin version
Description
Voltage supply: 18...30 VDC
Digital Output Q1
Freely adjustable ranging from 0.1 to 3000 ml/pulse
in 0.1 ml/pulse steps, npn-or pnp-transistor, max.
load 100mA.
Max. voltage must be less than the supply voltage
Configurable output of 0V or 24V when pipe is
empty.
Configurable output of 0V or 24V
Configurable output of 0V or 24V when reaching
upper or lower limit
Configurable output of 0V or 24V when liquid flows in
negative direction
Ground: 0 V
Communication interface
4....20mA; 0....20mA
Example: 0l/min => 4mA
36l/min => 20mA (depending on
Empty pipe Alert => 3.5mA
