Flowmax 44i

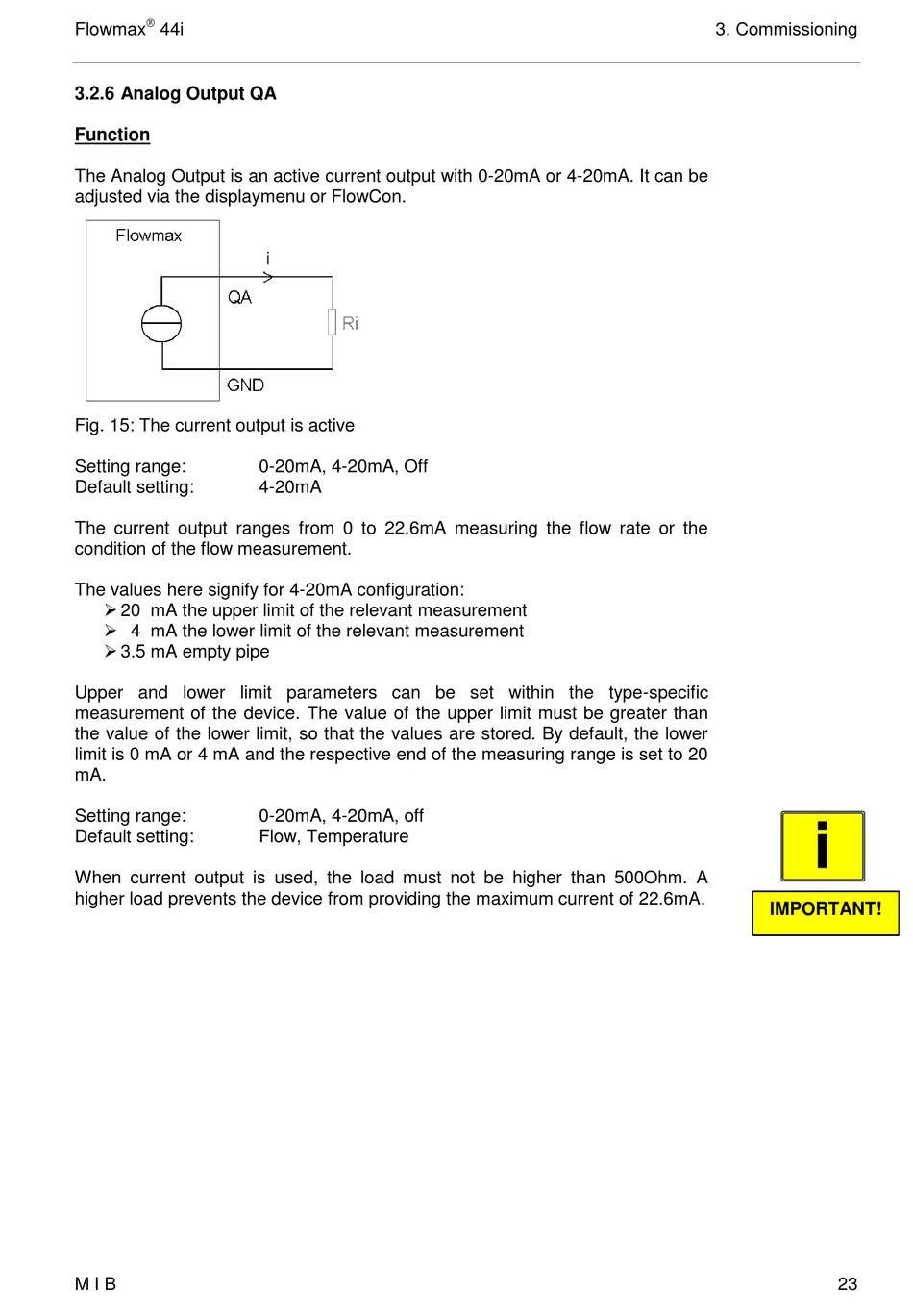

3.2.6 Analog Output QA

Function
The Analog Output is an active current output with 0-20mA or 4-20mA. It can be
adjusted via the displaymenu or FlowCon.
Fig. 15: The current output is active
Setting range:
Default setting:
The current output ranges from 0 to 22.6mA measuring the flow rate or the
condition of the flow measurement.
The values here signify for 4-20mA configuration:
 20 mA the upper limit of the relevant measurement
 4 mA the lower limit of the relevant measurement
 3.5 mA empty pipe
Upper and lower limit parameters can be set within the type-specific
measurement of the device. The value of the upper limit must be greater than
the value of the lower limit, so that the values are stored. By default, the lower
limit is 0 mA or 4 mA and the respective end of the measuring range is set to 20
mA.
Setting range:
Default setting:
When current output is used, the load must not be higher than 500Ohm. A
higher load prevents the device from providing the maximum current of 22.6mA.
M I B
0-20mA, 4-20mA, Off
4-20mA
0-20mA, 4-20mA, off
Flow, Temperature
3. Commissioning
IMPORTANT!
23
