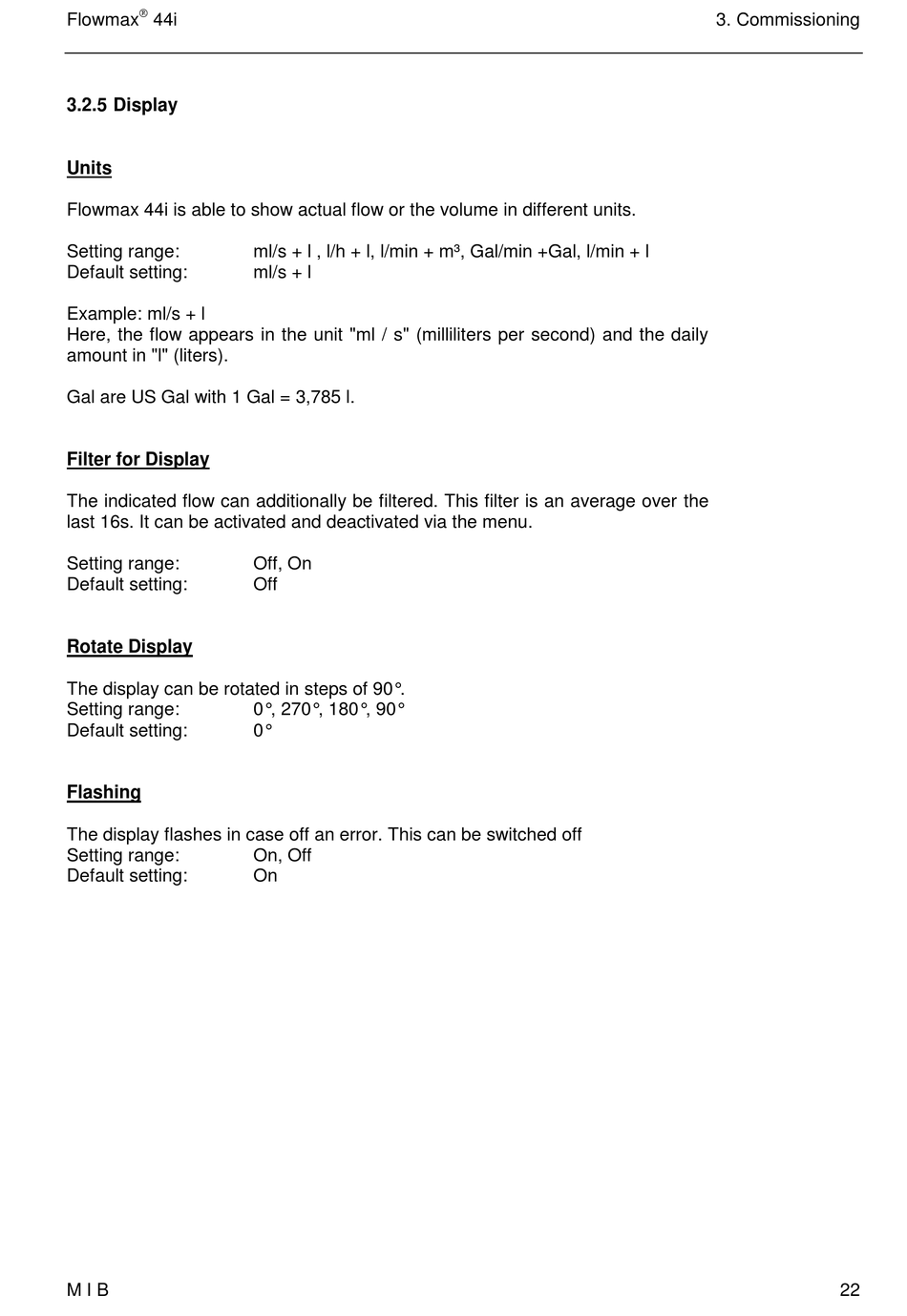

Display - MIB Flowmax 44i Operating Manual


Flowmax 44i

3.2.5 Display

Units
Flowmax 44i is able to show actual flow or the volume in different units.
Setting range:
Default setting:
Example: ml/s + l
Here, the flow appears in the unit "ml / s" (milliliters per second) and the daily
amount in "l" (liters).
Gal are US Gal with 1 Gal = 3,785 l.
Filter for Display
The indicated flow can additionally be filtered. This filter is an average over the
last 16s. It can be activated and deactivated via the menu.
Setting range:
Default setting:
Rotate Display
The display can be rotated in steps of 90°.
Setting range:
Default setting:
Flashing
The display flashes in case off an error. This can be switched off
Setting range:
Default setting:
M I B
ml/s + l , l/h + l, l/min + m³, Gal/min +Gal, l/min + l
ml/s + l
Off, On
Off
0°, 270°, 180°, 90°
0°
On, Off
On
3. Commissioning
22
