Nominal
Connection
diameter
DN10 ⅜" 11864-Clamp 149,0
DN15 ½" 11864-Clamp 149,0
DN20 ¾" 11864-Clamp 162,0
DN25 1"
11864-Clamp 170,0
M I B
Length
Width B
Height C
A [mm]
[mm]
[mm]
84,0
83,0
84,0
84,5
84,0
94,2
84,0
98,5
Height axis
Plug E
Channel offset
D [mm]
[mm]
70,5
15,0
71,1
15,0
77,6
15,0
77,6
15,0

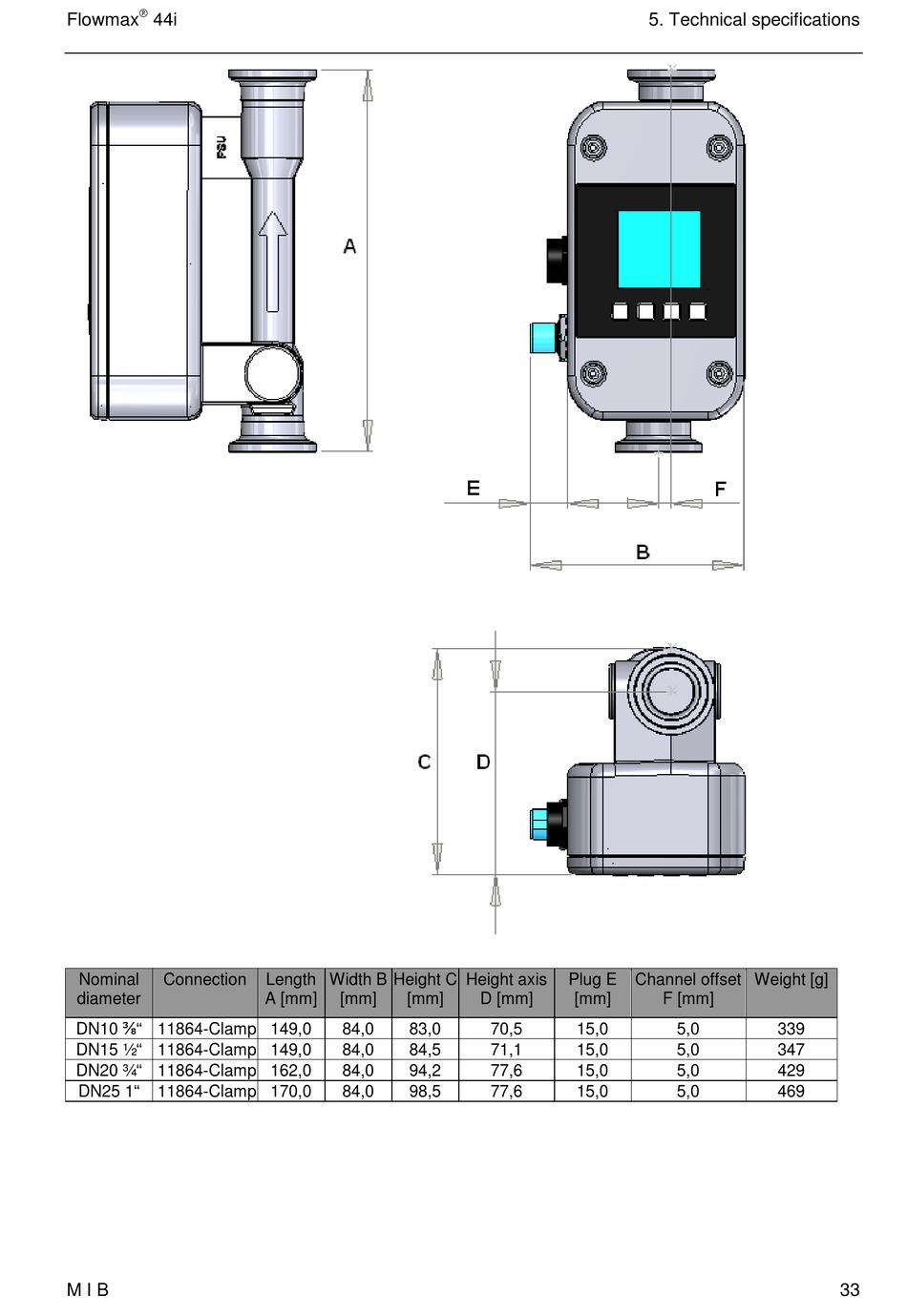

5. Technical specifications
Weight [g]
F [mm]
5,0
339
5,0
347
5,0
429
5,0
469
33
