Flowmax 44i

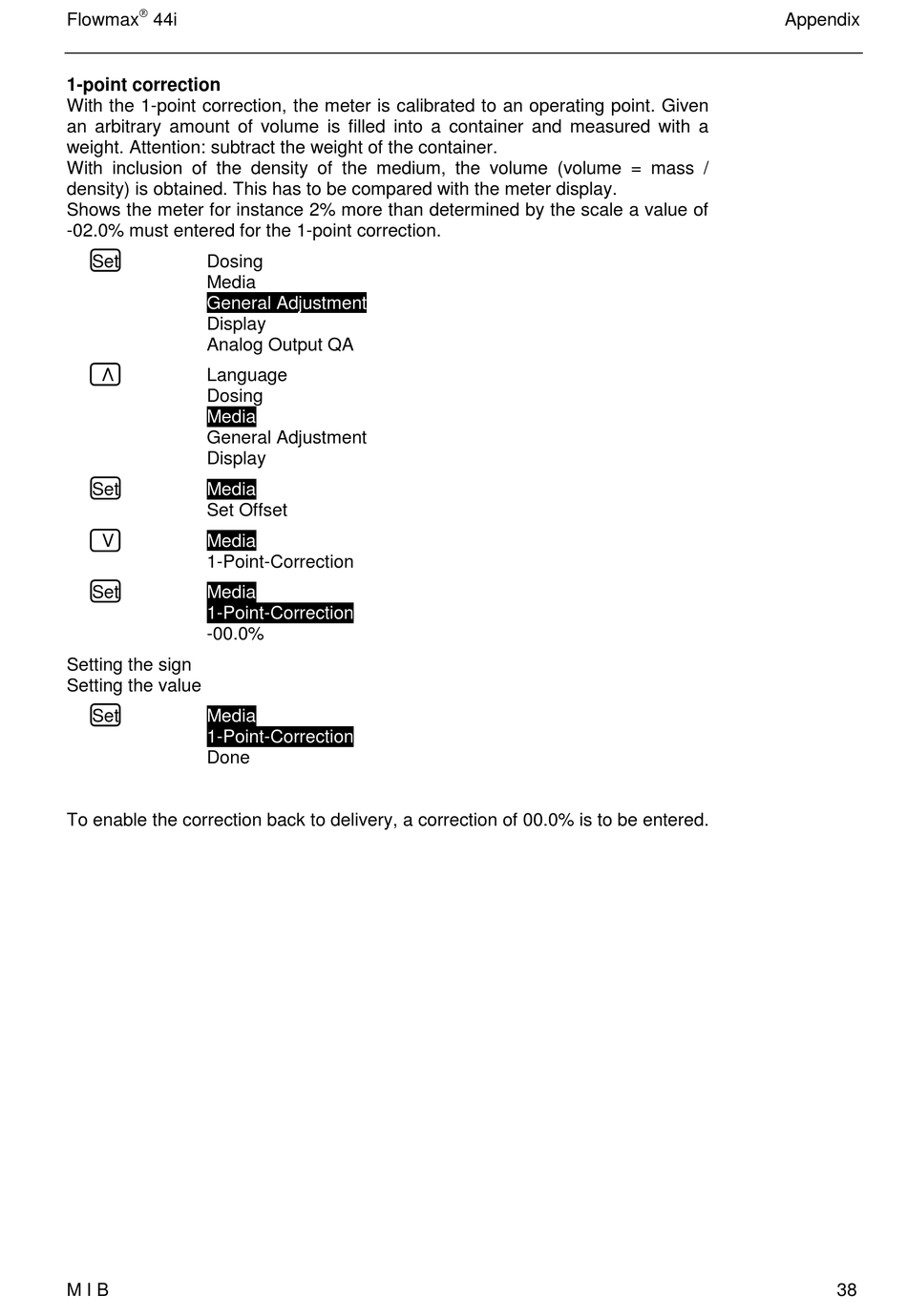

1-point correction
With the 1-point correction, the meter is calibrated to an operating point. Given
an arbitrary amount of volume is filled into a container and measured with a
weight. Attention: subtract the weight of the container.
With inclusion of the density of the medium, the volume (volume = mass /
density) is obtained. This has to be compared with the meter display.
Shows the meter for instance 2% more than determined by the scale a value of
-02.0% must entered for the 1-point correction.
Set Dosing
s
Media
j
General Adjustment
s
e Display
Analog Output QA
Λ
Language
s
Dosing
j
Media
s
General Adjustment
e
Display
Set Media
s
Set Offset
j
s
V Media
e s
1-Point-Correction
j
s
Set Media
e s
1-Point-Correction
j
-00.0%
s
e
Setting the sign
Setting the value
Set Media
s
1-Point-Correction
j
Done
s
e
To enable the correction back to delivery, a correction of 00.0% is to be entered.
