Flowmax 44i

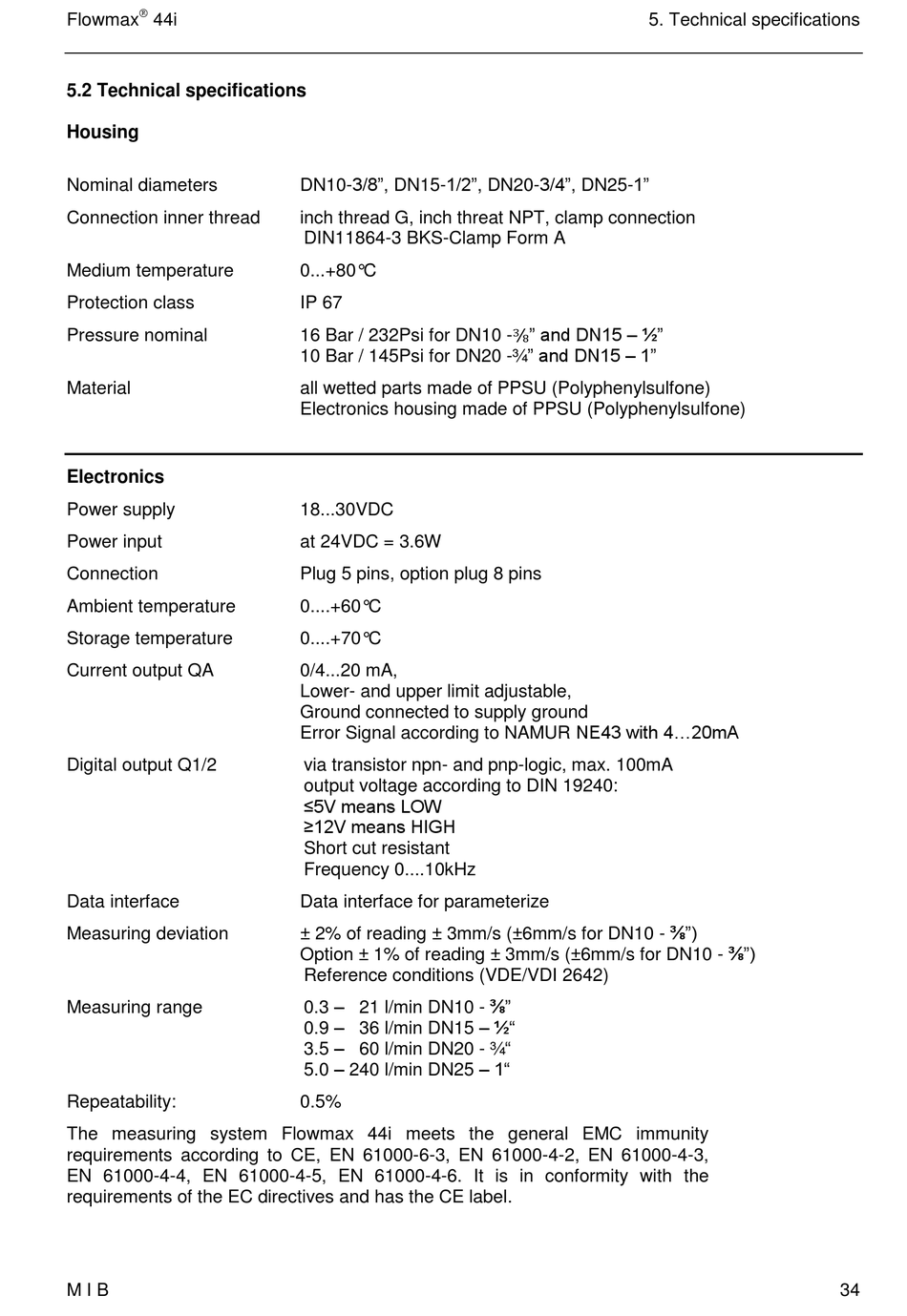

5.2 Technical specifications

Housing
Nominal diameters
Connection inner thread
Medium temperature
Protection class
Pressure nominal
Material
Electronics
Power supply
Power input
Connection
Ambient temperature
Storage temperature
Current output QA
Digital output Q1/2
Data interface
Measuring deviation
Measuring range
Repeatability:
The measuring system Flowmax 44i meets the general EMC immunity
requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. It is in conformity with the
requirements of the EC directives and has the CE label.
M I B
DN10-3/8", DN15-1/2", DN20-3/4", DN25-1"
inch thread G, inch threat NPT, clamp connection
DIN11864-3 BKS-Clamp Form A
0...+80°C
IP 67
16 Bar / 232Psi for DN10 -⅜" and DN15 – ½"
10 Bar / 145Psi for DN20 -¾" and DN15 – 1"
all wetted parts made of PPSU (Polyphenylsulfone)
Electronics housing made of PPSU (Polyphenylsulfone)
18...30VDC
at 24VDC = 3.6W
Plug 5 pins, option plug 8 pins
0....+60°C
0....+70°C
0/4...20 mA,
Lower- and upper limit adjustable,
Ground connected to supply ground
Error Signal according to NAMUR NE43 with 4...20mA
via transistor npn- and pnp-logic, max. 100mA
output voltage according to DIN 19240:
≤5V means LOW
≥12V means HIGH
Short cut resistant
Frequency 0....10kHz
Data interface for parameterize
± 2% of reading ± 3mm/s (±6mm/s for DN10 - ⅜")
Option ± 1% of reading ± 3mm/s (±6mm/s for DN10 - ⅜")
Reference conditions (VDE/VDI 2642)
0.3 – 21 l/min DN10 - ⅜"
0.9 – 36 l/min DN15 – ½"
3.5 – 60 l/min DN20 - ¾"
5.0 – 240 l/min DN25 – 1"
0.5%
