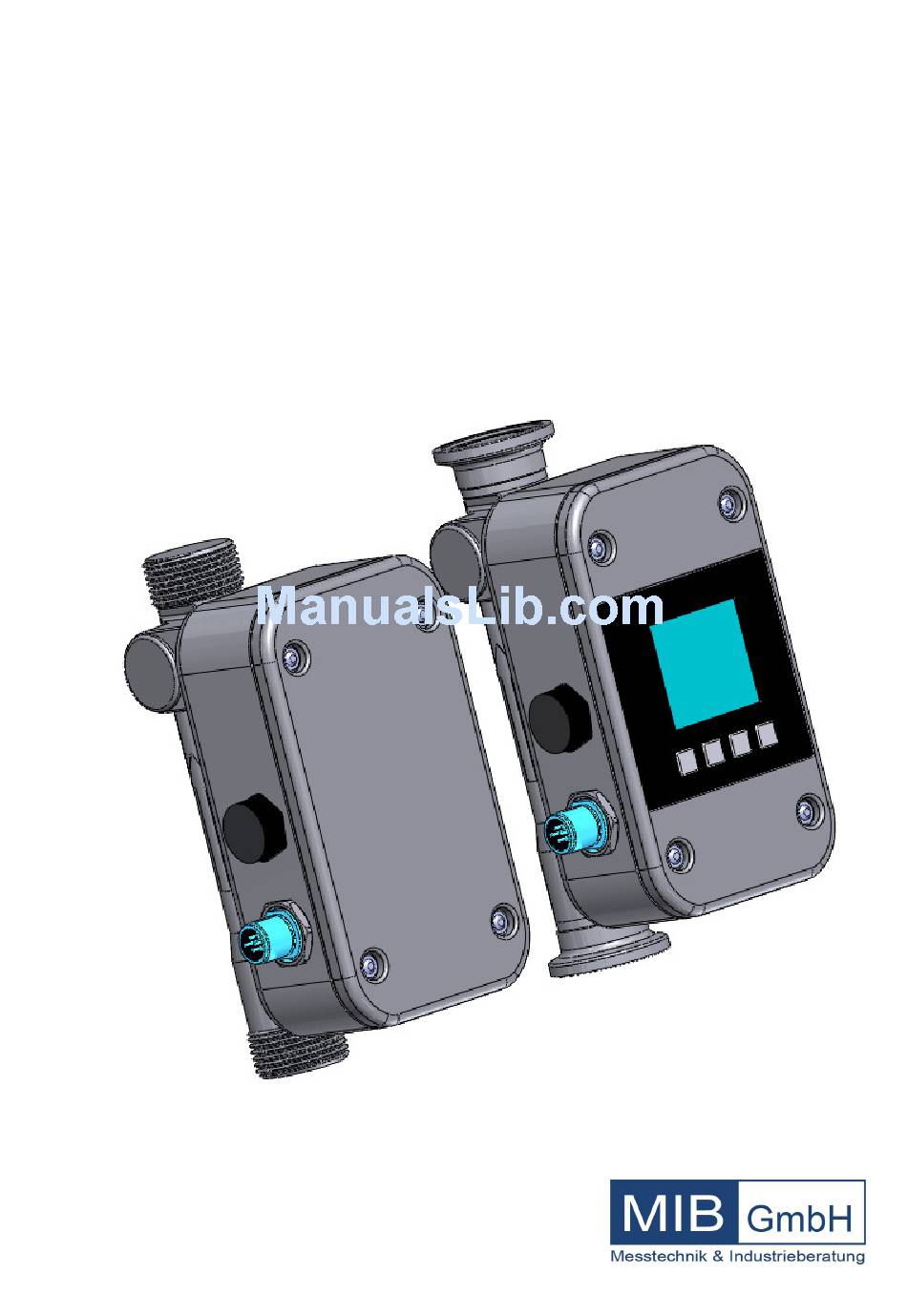

MIB Flowmax 44i Operating Manual

Ultrasonic flow metering / dosing device
Hide thumbs Also See for Flowmax 44i:

Advertisement

Quick Links

BA 008E/FM44i/06.12
Valid starting from
Hardware V 2.1
Software V 1.28
® ® ® ®
Flowmax
Ultrasonic flow
metering / dosing
device
Operating manual
44i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowmax 44i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MIB Flowmax 44i

  • Page 1: Ultrasonic Flow Metering / Dosing Device

    ® ® ® ® Flowmax BA 008E/FM44i/06.12 Valid starting from Hardware V 2.1 Ultrasonic flow Software V 1.28 metering / dosing device Operating manual...
  • Page 2: General Safety Instructions

    NOTICE! Is used to lead users to helpful information not NOTICE! related to personal injury. Intended use The flowmeter Flowmax 44i may only be used for measuring the flow of • pure, homogeneous liquids. The volume flowmeter Flowmax 44i is manufactured and designed •...
  • Page 3: Table Of Contents

    8. Order code Table of figures Fig. 1: Presentation of the principle of ultrasonic flow measuring Fig. 3: Mounting examples for Flowmax 44i Fig. 4: Mounting possibilities Fig. 5: Mounting the Flowmax 44i Fig. 6: Flowmax 44i with hot media Fig.
  • Page 4: Planning Information

    1. Planning information 1. Planning information 1.1 Areas of application The flow measurement device Flowmax 44i is well suited for measuring dynamic flow in pipes and tubes. This flowmeter is suitable for liquids only. It is used for: Chemicals supply for controlling, logistics, monitoring •...
  • Page 5: Operational Safety

    2. Assembly and installation 2.1 Installation instructions NOTICE! The housing of Flowmax 44i is labeled with an arrow symbolizing the direction of the flow. The flowmeter must be installed in direction of the flow. TOP -> outlet DOWN -> inlet Fig.
  • Page 6: Assembly Of The Flowmeter

    ® Flowmax 2. Assembly and installation When using pumps, Flowmax 44i must be installed in flow direction on the pressure side. Note the maximum pressure specification of the Flowmax 44i. For correct volume flow measurements straight and unobstructed inflow and outflow distances have to be observed.
  • Page 7: Fig. 3: Mounting Examples For Flowmax 44I

    If it is not possible to mount the flowmeter vertically, then mount the instrument in a location where the pipe will be filled at all times. The best measuring result is reached, when bubbles are unable to get into the Flowmax 44i. Fig. 4: Mounting possibilities For applications with a “clean design“...
  • Page 8: Fig. 5: Mounting The Flowmax 44I

    5.1 Dimensions and weight on page 22 / letter F). Applications with hot liquids: When Flowmax 44i is used in applications with liquid temperatures higher than 60°C and mounted horizontal it is recommend to install the electronic housing away from the heat source. Heat rises away from the electronic housing and IMPORTANT! minimizes damage to electronic parts.
  • Page 9: Electrical Wiring

    ® Flowmax 2. Assembly and installation 2.3 Electrical wiring The flowmeter must not be installed, wired or disassembled with live power (operating voltage) present. Disconnect or shutdown all power WARNING! before working on the flowmeter. Fig. 7: Pin code: Connection plug socket for 5-pin version Connector cable pin configuration defined by manufacturer.
  • Page 10: Fig. 8: Pin Code: Connection Plug / Socket For 8-Pin Version

    ® Flowmax 2. Assembly and installation Fig. 8: Pin code: Connection plug socket for 8-pin version Connector cable pin configuration defined by manufacturer. The outlets may be re-programmed for specific applications. Function Description Voltage supply: 18...30 VDC Pulse output Q1 Digital output Q1 Freely adjustable ranging from 0.1 to 3000 alternative:...
  • Page 11: Commissioning

    Repeat this action until amplifier stage and receiving amplitude reach a steady value. 3.1 Operation If Flowmax 44i is used as volume flowmeter for water or water-like liquids it will not require on-site calibration. Parameters for water are calibrated at the factory. Notwithstanding the Flowmax 44i may also be supplied with customized settings.
  • Page 12: Functionalities Of Flowmeter And Default Settings

    44i is 41414. The password can be changed with FlowSoft. The user level will remain active for 5 minutes after the last press on any button. Note: Not all functions of Flowmax 44i can be changed in the user menu display. To NOTICE! configure more parameters FlowSoft and an “USBtoRS485-Converter Sonic” is needed.
  • Page 13: Fig. 10: Menu Organization For 5-Pin Version

    ® Flowmax 3. Commissioning Fig. 10: Menu organization for 5-pin version M I B...
  • Page 14: Fig. 11: Menu Organization For 8-Pin Version

    ® Flowmax 3. Commissioning Fig. 11: Menu organization for 8-pin version M I B...
  • Page 15 Whereas the output signal reacts slower when average determination is strong. Units Flowmax 44i is able to show actual flow or the volume in different units. Following units can be selected: ml/s + l , Gal/min +Gal , l/min + l , l/min + m³.
  • Page 16: Fig. 12: Function Of The Creeping Suppression Illustrated With 0.6 L/Min

    ® Flowmax 3. Commissioning Creeping suppression The creeping suppression excludes flow measurements that result from convection in a narrow band around zero, even with a closed valve. At the factory, the creeping suppression is set at a standard value in relation to the cross-section of the flowmeter.
  • Page 17 Pulse value This section determines the output settings for pulsed outputs. Choose configuration such as to neither exceed the maximum output frequency of the Flowmax 44i (10kHz) nor the maximum input frequency of the control. Example: 2.0 ml/Pulse This means: a pulse is emitted every 2.0 ml.
  • Page 18: Fig. 13: Connecting Output Q1 To External Counter

    In case of inductive load a diode has to be connected parallel to the coil. For detailed information see section 5.2 Technical specifications. Flowmax 44i npn-out connected to a counter Fig. 13: Connecting output Q1 to external counter Setting area:...
  • Page 19 Dosing starts, as soon as line digital input is wired to 24 V, e.g. via a pushbutton. Flowmax 44i will open the dosing valve via the output configured for it. When the pre-set dosing quantity is reached, the dosing valve is closed via the above output.
  • Page 20: Overview Of Default Settings

    3. Commissioning Digital input I1 * Flowmax 44i has a digital input that is programmable to following functions: dosing input, set offset, creeping suppression inactive and reset counter. In order to start a dosing process, 24V DC power is required. The status of the dosing parameters is modified with the user display or FlowSoft service software via the “USB to RS485 Converter Sonic”.
  • Page 21: Exchange Of Measuring Device

    WARNING! to be measured is health hazardous. Devices judged by MIB to be insufficiently cleand will be returned to sender. No inspection of device will be done until proper cleaning is completed by user. With the flowmeter send a detailed report describing the failure, the •...
  • Page 22: Technical Specifications

    ® Flowmax 5. Technical specifications 5. Technical specifications 5.1 Dimensions and weight Nominal Connection Lengths Widths Height Height axis Plug Parting line Weight diameter A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] DN10 ⅜“ ½ G,NPT 147,0 84,0 83,0...
  • Page 23 ® Flowmax 5. Technical specifications Nominal Connection Lengths Widths Height Height axis Plug Parting line Weight diameter A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] DN10 ⅜” 11864-Clamp 147,0 84,0 83,0 70,5 15,0 DN15 ½“ 11864-Clamp 147,0 84,0 84,5 71,1...
  • Page 24 ® Flowmax 5. Technical specifications Zoom on nozzle Nominal Connection Lengths Widths Height Axis height Plug Parting line Nozzle Weight diameter A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] DN10 ⅜” Tube 160,0 84,0 83,0 70,5 15,0...
  • Page 25: Technical Specifications

    5.0 – 240 l/min for DN25 – 1” Repeatability 0.5% The measuring system Flowmax 44i complies with the EMC requirements EN 50081 parts 1/2 as well as EN 50082 parts 1/2. It is in conformity with the requirements of the EC directives and has the CE label.
  • Page 26 ® Flowmax 5. Technical specifications Digital output General All outputs switch over to high resistance when the supply is smaller than 18V. When overload or short circuit is detected the digital outputs are switched off after 100µs for a period of 2s. When time is up the outputs get applied again. Empty pipe output Empty pipe Device filled...
  • Page 27 ® Flowmax 5. Technical specifications Characteristic curve analog output 0 - 20mA For the following graphic “min Range” is used for 0% and “max Range” is used for 100%. Current output 0...20m A Value [% ] Value Current [mA] Smaller 0% 0% (min Range) Between 0% und 100% Linear interpolation from 0 to 20 mA...
  • Page 28 ® Flowmax 5. Technical specifications Behavior of the thermocouple The integrated thermocouple has no direct contact to the liquid and is used to calculate the expansion of the housing. The environment temperature greatly influences the actual temperature of the thermocouple. The response time of temperature changes relates to the mounting position of the thermocouple inside the housing.
  • Page 29 ® Flowmax 5. Technical specifications Filter options for analog output Response time analog output soft medium strong Time [s] Filter 100% 16ms soft 0.3s medium strong 4.2s Digital input When input setting is changed a device restart is required. After restart the changes are activated.
  • Page 30: Accessories

    Ordercode 800845 (Socket 8 pins) USB-to-RS485-Converter Sonic Interface converter from USB to RS485 with spring terminal connection for quick- connection of Flowmax 44i and FlowSoft / part 1, PC software for configuration of ultrasonic volume flowmeter Flowmax 44i Ordercode 908726 7.
  • Page 31 ® Flowmax 8. Order code Diameter / Measuring range FM44i D10 - 10 mm / Measuring range 0.3 - 21 l/min FM44i D15 - 15 mm / Measuring range 0.9 - 36 l/min FM44i D20 - 20 mm / Measuring range 3.5 - 60 l/min FM44i D25 - 25 mm / Measuring range 5 - 240 l/min Hydraulic connection Inch thread (incl.
  • Page 32 ® Flowmax User manual MIB GmbH Messtechnik und Industrieberatung Im Bürgerstock 7 D-79241 Ihringen Tel. 0049 / (0)7668 / 90 98 9-0 Fax 0049 / (0)7668 / 90 98 9-99 E-Mail: zentrale@mib-gmbh.com Internet: http://www.flowmax.de/ M I B...
