Filter
The function "Filter" averages the analog output signal. Possible settings:
Setting range:
Default setting:
The analog output signal reacts faster to signal changes when average
determination is set to "weak". Whereas the analog output signal reacts slower
when average determination is set to "strong".
100
80
60
40
20
0
0 1
Filter
off
weak
medium
strong

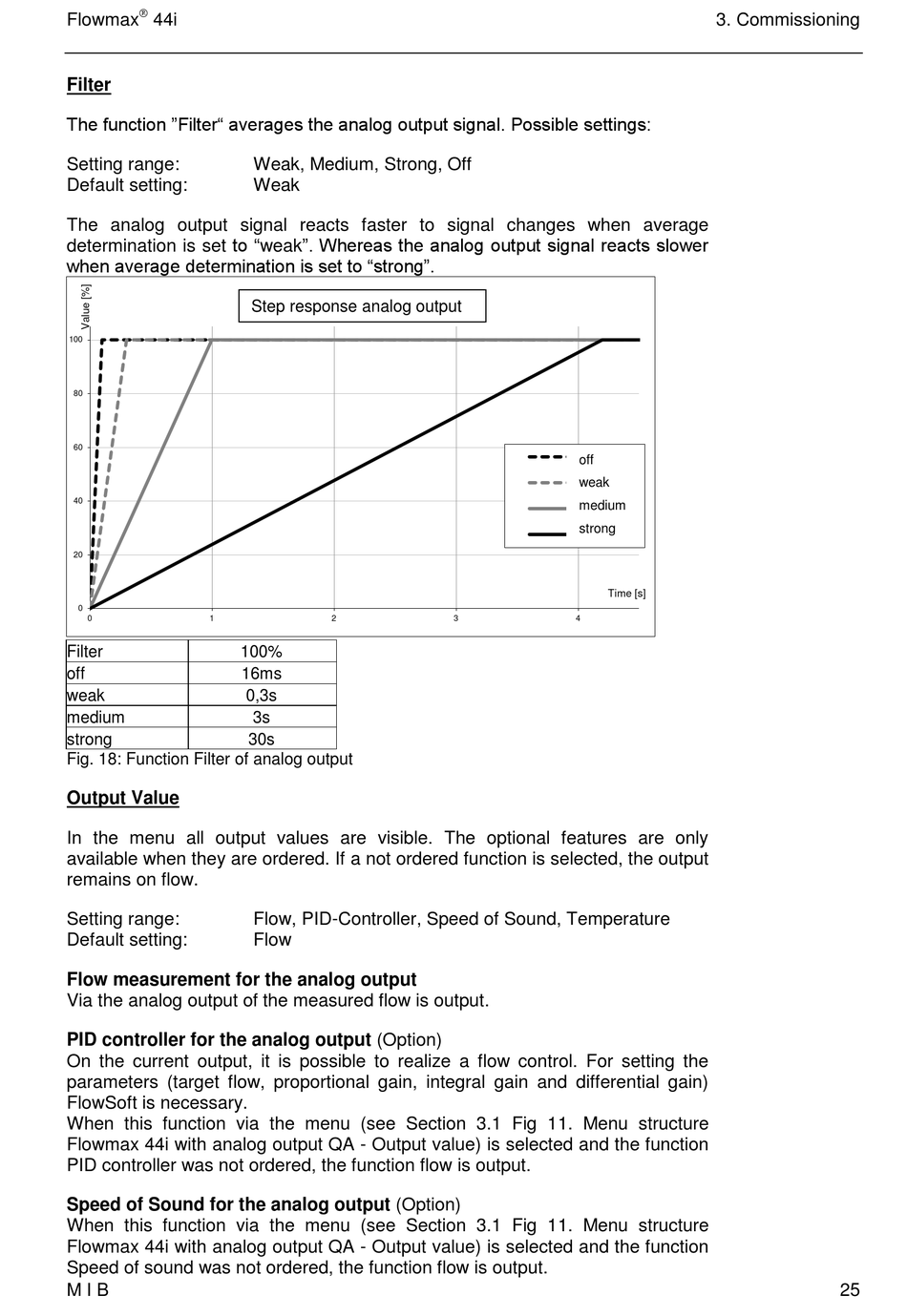

Fig. 18: Function Filter of analog output

Output Value
In the menu all output values are visible. The optional features are only
available when they are ordered. If a not ordered function is selected, the output
remains on flow.
Setting range:
Default setting:
Flow measurement for the analog output
Via the analog output of the measured flow is output.
PID controller for the analog output (Option)
On the current output, it is possible to realize a flow control. For setting the
parameters (target flow, proportional gain, integral gain and differential gain)
FlowSoft is necessary.
When this function via the menu (see Section 3.1 Fig 11. Menu structure
Flowmax 44i with analog output QA - Output value) is selected and the function
PID controller was not ordered, the function flow is output.
Speed of Sound for the analog output (Option)
When this function via the menu (see Section 3.1 Fig 11. Menu structure
Flowmax 44i with analog output QA - Output value) is selected and the function
Speed of sound was not ordered, the function flow is output.
