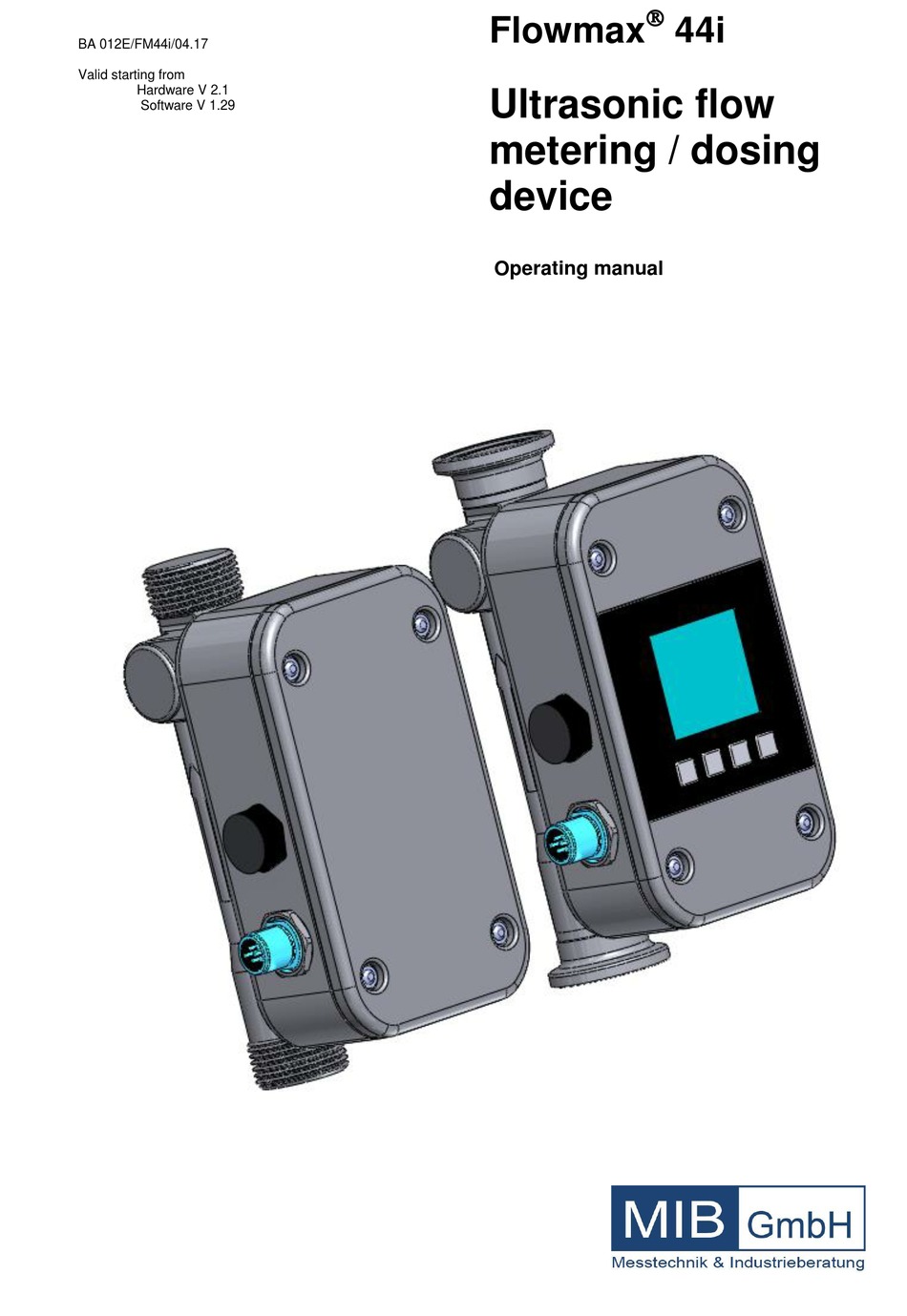

BA 012E/FM44i/04.17
Valid starting from
Hardware V 2.1
Software V 1.29
Flowmax
Ultrasonic flow
metering / dosing
device
Operating manual
44i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowmax 44i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MIB Flowmax 44i

  • Page 1: Ultrasonic Flow Metering/ Dosing Device

     Flowmax BA 012E/FM44i/04.17 Valid starting from Hardware V 2.1 Ultrasonic flow Software V 1.29 metering / dosing device Operating manual...
  • Page 2: General Safety Instructions

    NOTICE! is used to lead users to helpful NOTICE! information not related to personal injury. Intended use  The flowmeter Flowmax 44i may only be used for measuring the flow of pure, homogeneous liquids.  The Flowmax 44i is not intended for use in medical applications. ...
  • Page 3: Table Of Contents

    Appendix Examples of operation Table of figures Fig. 1: Presentation of the principle of ultrasonic flow measuring Fig. 2: Installation position of Flowmax 44i Fig. 3: Mounting examples for Flowmax 44i Fig. 4: Mounting possibilitis Fig. 5: Fixing Flowmax 44i Fig.
  • Page 4: Planning Information

    1. Planning information 1. Planning information 1.1 Areas of application The flow measurement device Flowmax 44i is designed to measure dynamic flow in pipes and tubes. This flowmeter is suitable for liquids only. The Flowmax 44i is used in  Chemicals supply for controlling, logistics, monitoring ...
  • Page 5: Operational Safety

    2.1 Installation instructions NOTICE! The housing of Flowmax 44i is labeled with an arrow symbolizing the direction of the flow measurement. The flow meter has to be installed in a way so that the flow-through is in the same direction as the arrow symbol.
  • Page 6: Assembly Of The Flowmeter

    2. Assembly and installation Particles present in the flow stream may result in measuring errors. When using pumps, Flowmax 44i must be installed in flow direction on the pressure side, on order to ensure sufficient pressure. Do not exceed the maximum pressure allowance for of the Flowmax 44i (see section 5.2 Technical specifications).
  • Page 7: Fig. 4: Mounting Possibilitis

    If it is not possible to mount the flowmeter vertically, then mount the instrument in a location where the pipe will be filled at all times. The best measuring result is achieved if bubbles do not pass through Flowmax 44i. Fig. 4: Mounting possibilities For applications with a “clean design“...
  • Page 8: Fig. 6: Flowmax 44I With Hot Media

    Flowmax 44i warps and the process connection breaks off. To ensure the mechanical stress-free mounting of Flowmax 44i, is on site to ensure by appropriate measures that no forces can act on the plastic housing, for example, a flexible metal hose or a strain curve.
  • Page 9: Electrical Wiring

    Always shut off or disconnect electrical power at service panel and WARNING! lock switch or breaker and tag to prevent energizing electrical power during work or while Flowmax 44i is not assembled and installed. Wiring installation, disassembly and removal must be performed by qualified persons experienced and knowledgeable about electrical work.
  • Page 10  Flowmax 2. Assembly and installation 5-pin plug with RS485 communication and current output: Function Description 24 VDC Voltage Supply: 18...30 VDC Communication RS 485 B Ground: 0 V Communication RS 485 A Analog output QA 4..20mA; 0..20mA Example: 0l/min => 4mA 36l/min =>...
  • Page 11: Fig. 8: Pin Code: Connection Plug / Socket For 8-Pin Version

     Flowmax 2. Assembly and installation 8-pin plug with 1-wire communication: Fig. 8: Pin code: Connection plug socket for 8-pin version Connector cable pin configuration defined by manufacturer. The outlets may be re-programmed for specific applications. Function Description 24 VDC Voltage supply: 18...30 VDC Digital output Q1 Digital output Q1...
  • Page 12: Fig. 9: Pin Code: Connection Plug / Socket For 8-Pin Version

    Only operate the flowmeter Flowmax44i within the operating limits stipulated on the product label and the operating manual / data sheet. IMPORTANT! Use of the Flowmax 44i outside these conditions will lead to overloads which cause permanent damage. M I B...
  • Page 13: Commissioning

    3. Commissioning 3. Commissioning NOTE: If Flowmax 44i is used for a fluid other than water the "basic trim" has to be carried out during commissioning. Therefore the device has absolutely be filled with medium. The basic trim can be done on the device display (alternatively FlowCon).
  • Page 14: Fig. 10: Operating With The Key Pad

    The default password for Flowmax 44i is 41414. The user level will remain active for 30 minutes after the last press on any button. 200 seconds after the last key press, the device skips the menu and returns to the display mode, which does not apply to the menu items diagnostic and dosing.
  • Page 15: Fig. 11: Menu Strukture Flowmax 44I

     Flowmax 3. Commissioning Fig. 11: Menu structure Flowmax 44i M I B...
  • Page 16: Functionalities Of Flowmeter And Default Settings

    Spanish, French and German. 3.2.2 Dosing The Flowmax 44i can be configured for manually dosing by choosing the dosing function via the user display. The Volume “Dosing Quantity“ and the “Dosing Time“ are freely adjustable. The dosing time is intended as a safeguard against unintentional overspill.
  • Page 17: Fig. 12: Function Of Creeping Suppression Illustrated With 0.6 L/Min

     Flowmax 3. Commissioning Creeping suppression The creeping suppression excludes flow measurements that result from convection in a narrow band around zero, even with a closed valve. At the factory, the creeping suppression is set at a standard value in relation to the cross-section of the flowmeter.
  • Page 18: Fig. 13: Function Lag Creeping Flow

    Basic Trim The “Basic Trim” function insures that the flowmeter is conforming to the media NOTICE! specific characteristics. To execute this function, Flowmax 44i runs a self- diagnostic function which optimizes all important parameters. This process lasts approximately 1 minute.
  • Page 19: General Adjustment

     Flowmax 3. Commissioning 3.2.4 General Adjustment Reset Counter The volume counter of Flowmax 44i can be reset. Example of operation see appendix. Important! Once reset, counter values cannot be restored. After a reset the counter works IMPORTANT! normally. Hysteresis The limit values can be provided with a hysteresis.
  • Page 20 The pulse value determines the flow volumes for which an output pulse will be emitted. Choose a configuration which will neither exceed the maximum output frequency of the Flowmax 44i (10kHz) nor the maximum input frequency of the control. If the maximum frequency is exceeded the Flowmax 44i will not output pulses correctly.
  • Page 21  Flowmax 3. Commissioning Counter The daily counters is the one that appears by default in the display. The unit corresponds to each set. The behavior of the daily quantity counter a) at daily amount in [l] from [l] to [l] resolution display [l] 0,000 14000...
  • Page 22: Display

    Flowmax 3. Commissioning 3.2.5 Display Units Flowmax 44i is able to show actual flow or the volume in different units. Setting range: ml/s + l , l/h + l, l/min + m³, Gal/min +Gal, l/min + l Default setting: ml/s + l Example: ml/s + l Here, the flow appears in the unit "ml / s"...
  • Page 23: Analog Output Qa

     Flowmax 3. Commissioning 3.2.6 Analog Output QA Function The Analog Output is an active current output with 0-20mA or 4-20mA. It can be adjusted via the displaymenu or FlowCon. Fig. 15: The current output is active Setting range: 0-20mA, 4-20mA, Off Default setting: 4-20mA The current output ranges from 0 to 22.6mA measuring the flow rate or the...
  • Page 24: Fig. 16: Characteristic Curve 0 To 20Ma

     Flowmax 3. Commissioning Characteristic curves analog output 0 - 20mA For the following graphic “min Range” is used for 0% and “max Range” is used for 100%. Current output 0...20mA 100 110 120 Value [%] Value Current [mA] Smaller 0% 0% (min Range) Between 0% and 100% Linear interpolation from 0 to 20 mA...
  • Page 25: Fig. 18: Function Filter Of Analog Output

    FlowSoft is necessary. When this function via the menu (see Section 3.1 Fig 11. Menu structure Flowmax 44i with analog output QA - Output value) is selected and the function PID controller was not ordered, the function flow is output.
  • Page 26: Fig. 19: Step Response Time Of Temperature Measurement

     Flowmax 3. Commissioning Temperature measurement for the analog output Via the analog output the measured temperature is output. The temperature sensor is not wetted. It is used to calculate the extent of the measuring channel. The sensor is influenced by the ambient temperature. The temperature value will become sluggish, because it measures the plastic - Temperature inside the sensor pocket.
  • Page 27: Digital Outputs Q1 And Q2

     Flowmax 3. Commissioning 3.2.7 Digital Outputs Q1 and Q2 (Q2 only available with 8-pin plug) The digital outputs Q1 and Q2 can be used as a pulse output, for signaling the empty pipe message for controlling a dosing valve or to limit monitoring. All outputs become high resistant if voltage falls below 16V.
  • Page 28: Fig. 20: Connecting Digital Output To Relay

    Example 1: Flowmax 44i via npn, external relay Fig. 20: Connecting Digital Output to relay Example 2:Flowmax 44i via pnp, external counter e.g. PLC Fig. 21: Connecting Digital Output to counter With high impedance input counters and high speed counting, it may be necessary to include a resistor to have clean edges.
  • Page 29: Digital Input I1

    3. Commissioning 3.2.8 Digital Input I1 (only available with 8-pin plug) Flowmax 44i has a digital input that is programmable for the following functions: dosing input, set offset, creeping suppression inactive and reset counter. In order to start a dosing process, 24V DC power is required. The status of the dosing parameters or modifications can be done via user display or FlowCon.
  • Page 30: Overview Of Default Settings

    Is the measurement pipe completely filled with fluid?  Check the back pressure in the system. When everything has been checked, switch on power. After 30 minutes with power running the measuring device reaches the maximum accuracy. Flowmax 44i is operational! M I B...
  • Page 31: Exchange Of Flowmeter

    If the device requires a configuration change, the display and programming unit FlowCon 200i may be required (see section 6. Accessories). Repair, hazardous substances Before sending the flowmeter Flowmax 44i for repair, the following precautions must be taken:  Clean all process chemicals from the device. Fully rinse the flow path.
  • Page 32: Technical Specifications

     Flowmax 5. Technical specifications 5. Technical specifications 5.1 Dimensions and weight Nominal Connection Length Width B Height C Height axis Plug E Channel offset Weight [g] diameter A [mm] [mm] [mm] D [mm] [mm] F [mm] DN10 ⅜“ ½ G,NPT 147,0 84,0 83,0...
  • Page 33  Flowmax 5. Technical specifications Nominal Connection Length Width B Height C Height axis Plug E Channel offset Weight [g] diameter A [mm] [mm] [mm] D [mm] [mm] F [mm] DN10 ⅜“ 11864-Clamp 149,0 84,0 83,0 70,5 15,0 DN15 ½“ 11864-Clamp 149,0 84,0 84,5 71,1...
  • Page 34: Technical Specifications

    5.0 – 240 l/min DN25 – 1“ Repeatability: 0.5% The measuring system Flowmax 44i meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. It is in conformity with the requirements of the EC directives and has the CE label.
  • Page 35: Accessories

    30 sec within the allowable range. The measurement works but then immediately 6. Accessories Flowmax connection socket Flowmax connection socket is used to power and connect Flowmax 44i to an external control unit. Ordercode 507321 (Socket 5 pins) Ordercode...
  • Page 36: Appendix Examples Of Operation

     Flowmax Appendix Appendix Examples of operation Enter Password Display picture Password 4 x Λ 40000 X0000 Λ X1000 XX000 4 x Λ XX400 XXX00 Λ XXX10 XXXX0 4 x Λ XXXX4 Reset Counter Dosing Media General Adjustment Display Analog Output QA General Adustment Reset Counter General Adjustment...
  • Page 37 Appendix Set Offset Use this function only when Flowmax 44i is completely filled with liquid, and there is no flow. If the offset is set while flow is present or when the pipe is empty it will cause an offset drift what results in a faulty measurement.
  • Page 38  Flowmax Appendix 1-point correction With the 1-point correction, the meter is calibrated to an operating point. Given an arbitrary amount of volume is filled into a container and measured with a weight. Attention: subtract the weight of the container. With inclusion of the density of the medium, the volume (volume = mass / density) is obtained.
  • Page 39  Flowmax Appendix Display rotate 90° Dosing Media General Adjustment Display Analog Output QA Media General Adjustment Display Analog Output QA Digital Output Q1 Display Units 2 x V Display Rotate Display Display Rotate Display 0° 3 x V Display Rotate Display 90°...
  • Page 40  Flowmax MIB GmbH Messtechnik und Industrieberatung Bahnhofstr. 35 D-79206 Breisach Tel. 0049 / (0)7667 / 20 777 90 Fax 0049 / (0)7667 / 20 777 99 E-Mail: info@mib-gmbh.com Internet: http://www.flowmax.de/ M I B...
